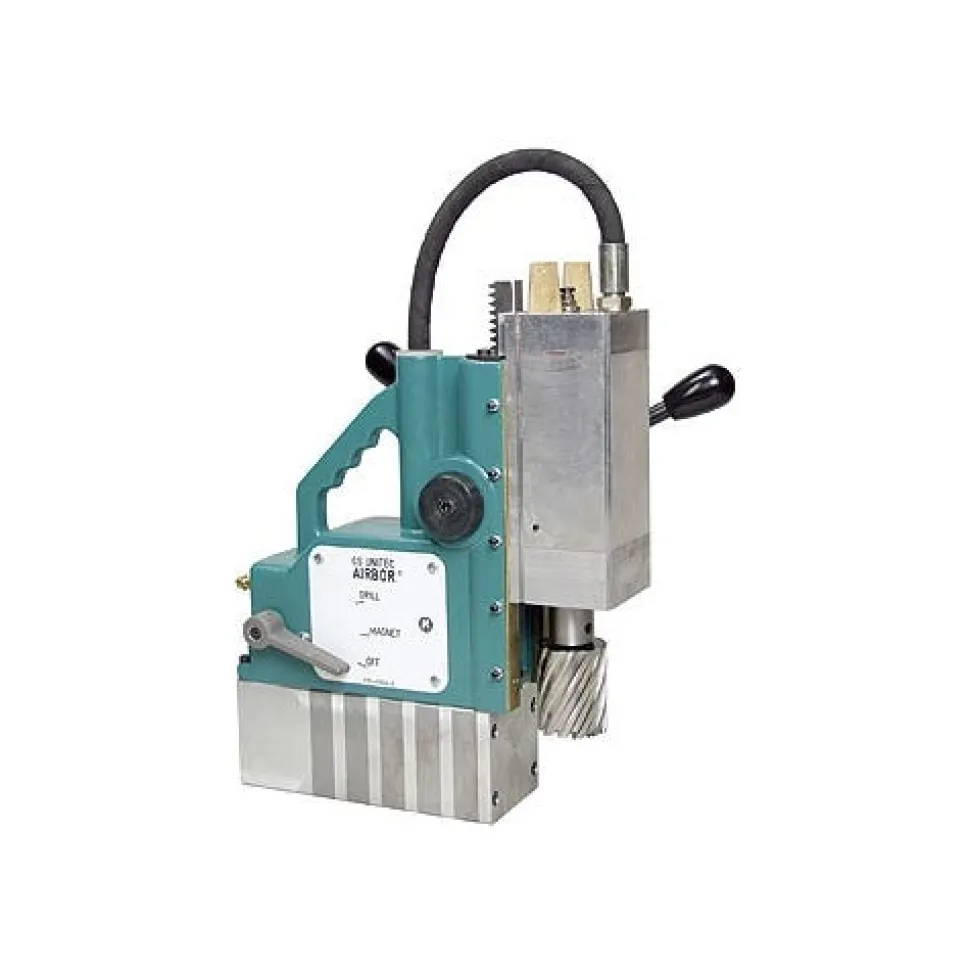

CS Unitec 2-1/16″ AirBor Portable Pneumatic Magnetic Drill AB-4300-2

CS Unitec

2-1/16 AirBor Portable Pneumatic Magnetic Drill AB-4300-2

Inherently safer than electromagnetic drills in hazardous atmospheres and wet environments where electricity requires “hot work permits.” CS Unitec’s portable air-powered magnetic drill is ATEX certified for Ex zones.

FEATURES:

• Industry’s first completely air-operated magnetic drill – NO ELECTRICITY!.
• Pressurized coolant system lubricates cutter and reduces risk of sparking.
• Fail-safe permanent magnet activated on/off by air pressure – if air flow is lost; magnet will not disengage.
• Geared chuck (part no. IBC 18) for twist drilling.
• Uses annular cutters.
• 1600 lbs. magnet holding strength.
• Lubricants ideal for cutting steel; stainless steel and hard metals.

SPECIFICATIONS:

Motor Power (Pneumatic)	1.6HP
Air Consumption @ 90 PSI	64 CFM (1/2″ NPT Air Connection)
Hole Capacity	2-1/16″ dia.
Stroke Length with Cutters	4-7/8″
Stroke Length with Twist Drill	1-3/4″
No Load Speed	400 RPM
Magnet Base Size	W: 8-3/4″ x L: 3-1/2″
Dimensions	H: 13-1/2″ x L: 12-1/2″ x W: 4-3/4″
Height – Closed	13-1/2″
Height – Open	17-1/2″
Magnetic Force (1″ Plate)	1600 lbs.
Arbor Bore	3/4″ Weldon Shank
Automatic Lubrication	Included

INCLUDES:

• (1) AirBor Portable Pneumatic Magnetic Drill
• (1) Pressurized lubrication system (Part No. 9 4002 0020)
• (1) Geared chuck adapter (Part No. IBC 18)

“
