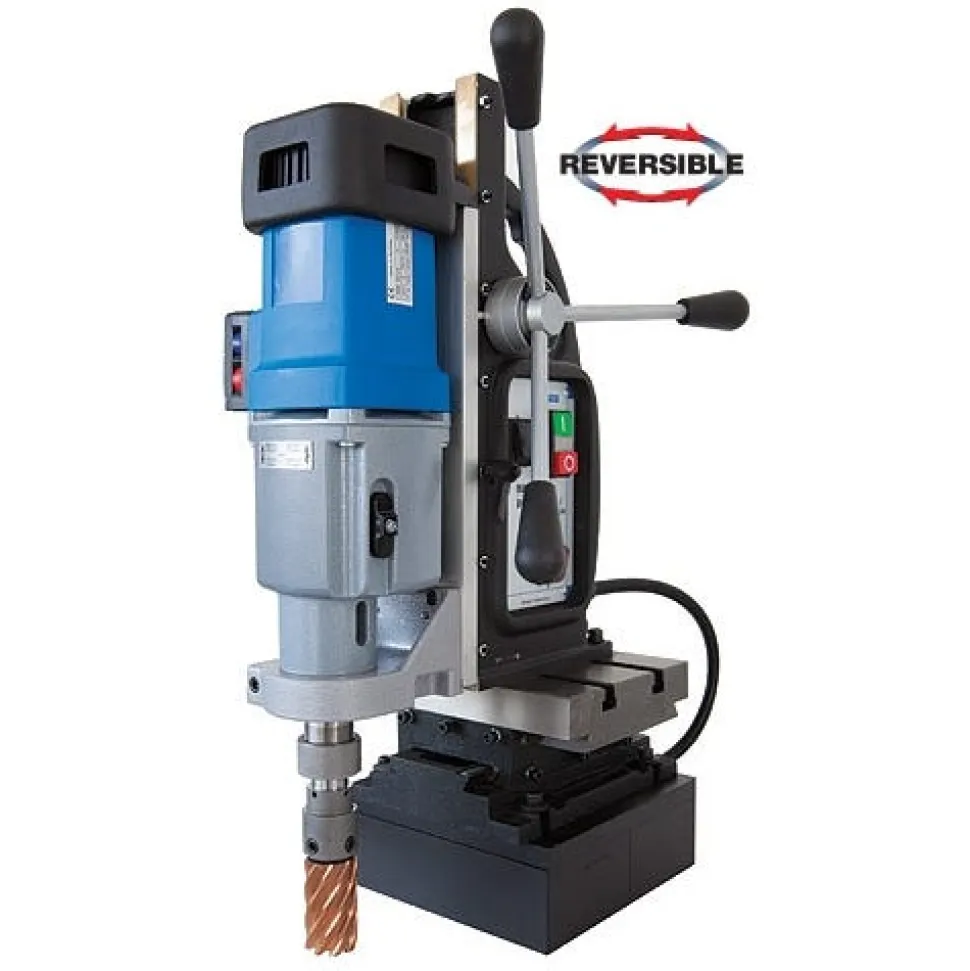

CS Unitec 2-3/8″ Magnetic Drill w/ Reversible Variable Speed Multi-Axis MAB 825 KTS

CS Unitec

2-3/8 Magnetic Drill w/ Reversible Variable Speed Multi-Axis MAB 825 KTS

This magnetic drill features multiaxis positioning; allowing the drill to be adjusted up to 4-3/4” forward/ backward and up to 4-3/8” left/right after magnet is adhered to surface. Ideal for job site drilling; boring and slotting applications where dismantling is not feasible.

FEATURES:

• Powerful and reliable.
• Designed for continuous use.
• Multi-axis positioning.
• Ideal for a wide variety of drilling; boring and slotting applications.
• Servo-assisted drilling to help maintain feed pressure during operation.
• Integrated cutting oil reservoir.
• Automatic internal lubrication.
• SafeMag: Green/Red LED magnetic force indicator for safe operation.
• CoolMag: Magnet overheating protection.
• Simple; ergonomic arrangement of controls for one-handed operation.
• Emergency-off function: electronic safety sensor shuts down drill motor if magnet loses contact with material to protect operator and equipment.

SPECIFICATIONS:

Motor Power	16 Amp / 110 Volt
Stroke	10″
Hole Capacity	3-1/8″ dia.
Twist Drill Capacity	1-1/4″ dia.
Tapping Capacity	1-3/16″ dia.
Milling Capacity	Up to 5/8″ dia. at 1″ depth
Speed #1	40-110 RPM
Speed #2	65-175 RPM
Speed #3	140-360 RPM
Speed #4	220-600 RPM
Magnet Base Size	L: 8-11/16″ x W: 8-11/16″
Dimensions	H: 19-3/4″ x L: 13″ x W: 14-1/2″
Magnetic Force (1″ plate)	6;600 lbs.
Arbor Bore	3/4″ and 1-1/4″ standard
Spindle	MT3
Automatic Lubrication	Included

INCLUDES:

• (1) Magnetic drilling machine
• (1) Steel carrying case†
• (1) Safety chain
• (1) Drift key MT3 (Order No. 5301)
• (1) Operating manual
• (1) Warranty certificate

“
