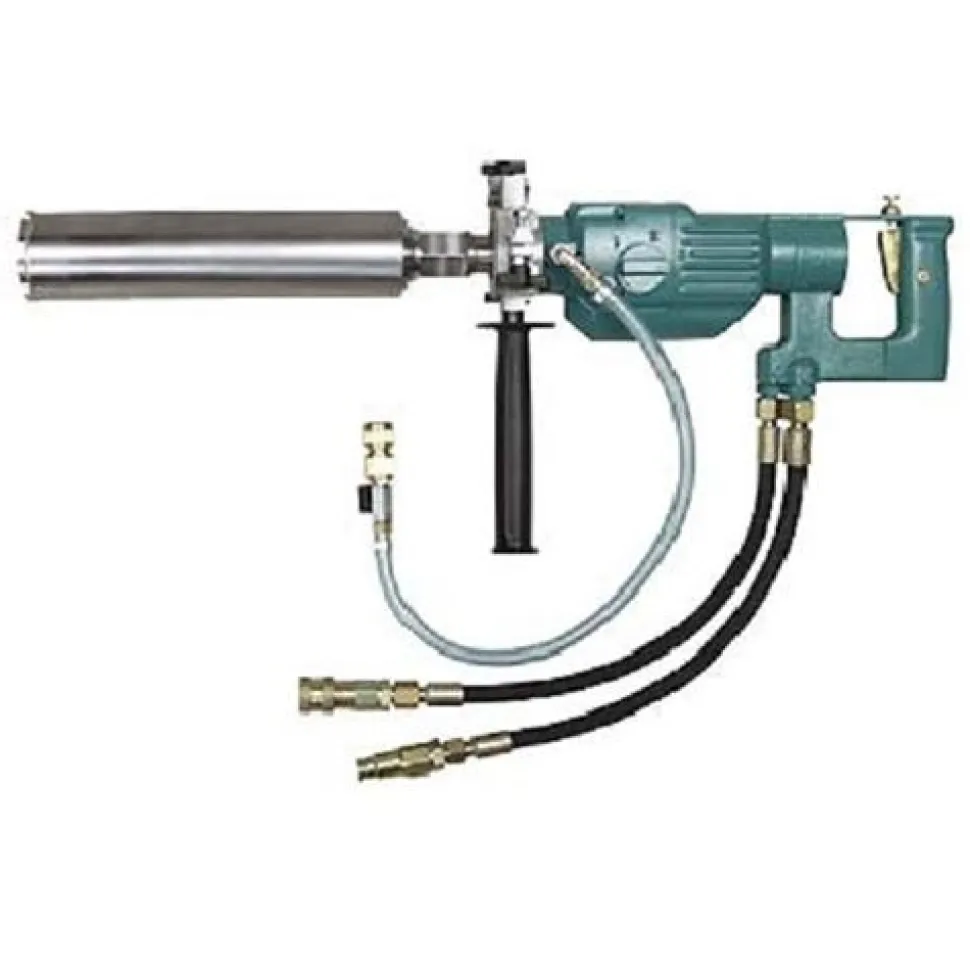

CS Unitec 3.6 HP 6″ Hydraulic Core Drill 2 1317 0030

• CS Unitec
• This powerful wet diamond core drill is designed for fast; accurate drilling in concrete; reinforced concrete and other masonry materials. Use it hand-held up to 3″ diameter or mounted in a drill stand up to 6″ diameter.
• The hydraulic motor operates at 2000 PSI oil pressure. The required flow is 6 GPM. Additional flow is automatically by-passed back to the tank up to a maximum input of 13 GPM.
• The hydraulic core drill incorporates a safety slip clutch and water swivel. 5/8″ x 11 UNC and 1-1/4″ x 7 UNC and G 1/2″ connecting threads are standard.
• Model 2 1317 0030 is a heavy-duty hydraulic core drill. This wet diamond drill delivers outstanding performance in concrete; reinforced concrete; etc. The oil flow control is self regulating. The required volume is 6 GPM. Flow above 6 GPM; up to 13 GPM; is bypassed back to the tank. The drill features a 3-speed gear box; mechanical slip clutch; 360 rotatable side handle and centering aid.
• Drilling Capacity:
• Hand-held Drilling 1/2 3 dia.
• Rig-mounted Drilling 1/2 6 dia.*
• *Do not use core bits larger than 6 diameter
• *Use gear 1 in a drill stand only.
• Standard Equipment:
• Heat-treated Gears
• Safety Friction Slip Clutch
• 360 Rotatable Handle
• Centering Aid P/N 2 1315 6800
• Metal Carrying Case P/N 5 1212 9000
• SPECIFICATIONS:
• Power: 3.6 HP (2.8 kW)
• 3 Speeds (RPM): 380; 900; 1800
• Connecting Threads: 1-1/4″x7 UNC Male
• Weight: 16 lbs.
• Oil Pressure: 2000 PSI
• Oil Flow: 6 GPM (22 LPM)
• Flow Control Valve: Up to 13 GPM allowed
• Hose Diameter: 1/2 ID Hose with 3/8

“
