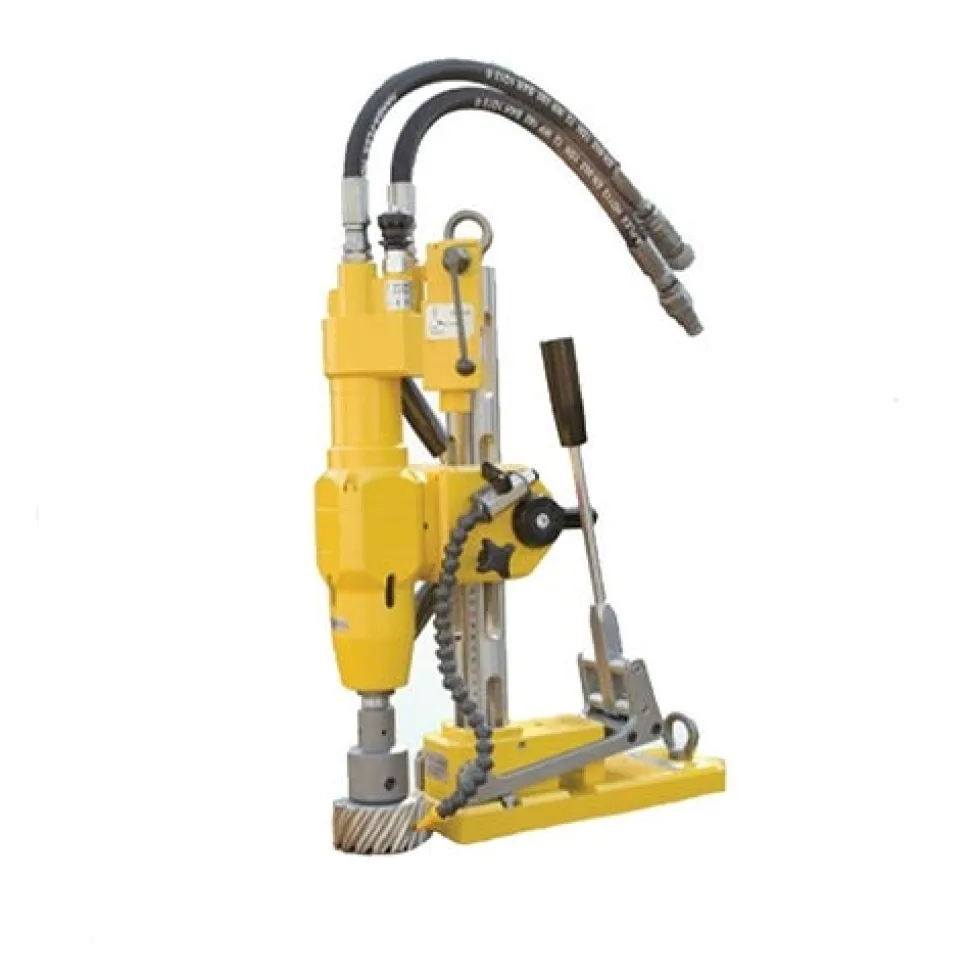

CS Unitec 4 Model 2″ Portable Hydraulic Magnetic Drill 2 1345 0010

CS Unitec

4 Model 2 Portable Hydraulic Magnetic Drill 2 1345 0010

CS Unitec has introduced a new portable hydraulic magnetic drill ideal for use in subsea applications and Ex Zones. With its 3.4 HP reversible motor; Model 2 1345 0010 produces an infinitely variable speed of 40-250 RPM.

FEATURES:

• Ideal for industrial; construction; marine and mining applications.
• Drill structural steel and other metals.
• Reversible motor for tapping.
• Hydraulic motor safe for underwater use.
• ATEX Certified EX II 2Gc IIB T5.
• Manually operated permanent magnet with lever control.
• Uses annular cutters.
• Lubricants ideal for cutting steel; stainless steel and hard metals.

SPECIFICATIONS:

Motor Power (Hydraulic)	3.4 HP
Stroke	12″
Hole Capacity	4″ dia
Twist Drill Capacity	1-1/4″ dia.
No Load Speed; Variable	40-250 RPM
Hydraulic Supply	FLOW 5.3 GPM @ 2000 PSI
Magnetic Base Size	L: 11-11/16″ x W: 4″
Dimensions	H: 21-1/2″ x L: 15-7/16″ x W: 7-3/4″
Magnetic Force (3/8″ plate)	1874 lbs.
Spindle	MT3

INCLUDES:

• Hydraulic Magnetic Drill
• Hydraulic hose set
• Coolant bottle
• Arbor adapter to 3/4″ Weldon
• Arbor adapter to 1-1/4″ Weldon
• Safety Chain
• Drift key
• Allen keys
• Carrying case

“
