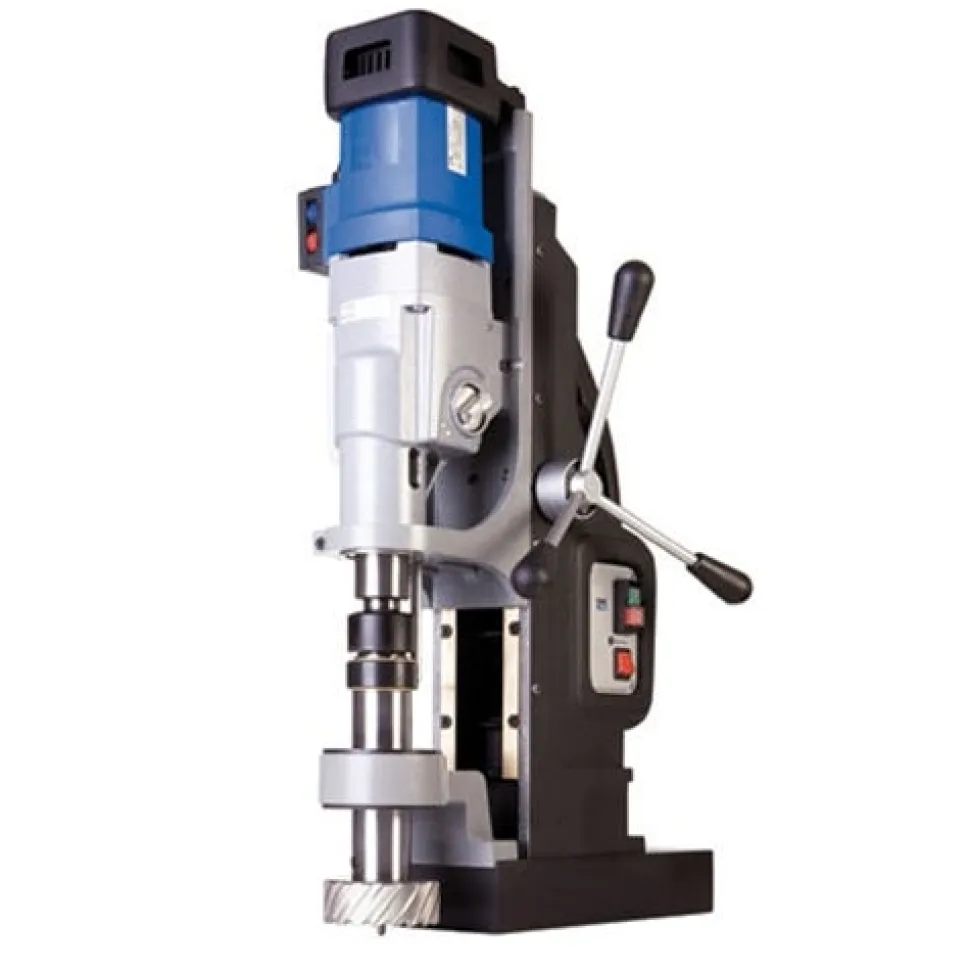

CS Unitec 5″ Magnetic Drill Reversible Variable Speed MAB 1300

CS Unitech

MAGNETIC DRILL 5 REVERSIBLE VARIABLE SPEED MAB 1300

FEATURES:

• 20 Amp double-insulated motor
• 22″ high; 112 lbs.
• 4-speed oilbath gearbox forapplications requiring high power
• Designed for continuous use
• Infinitely variable torque controland full-wave control electronics
• Uses annular cutters 7/16″ to 5-1/8″ dia.; 1″ and 2″ depth7/16″ to 5-1/8″ dia.; 3″ to 8″ depth*
• Twist drilling up to 1-3/4″ – usesMT4; countersinking up to 3″ dia.
• Tapping up to 1-5/8″
• Reaming up to 2″
• Automatic internal lubrication
• Green/Red LED magnetic forceindicator for safe operation
• Equipped with Electronic SafetyShutoff Sensor (see p. 3)
• Emergency-off function

SPECIFICATIONS:

Motor Power	20 Amp / 110 Volt
Weight	112 lbs.
Stroke	3.35″ (12″ without retainer)
Hole Capacity	5-1/8″ dia.
Twist Drill Capacity	1-3/4″ dia.
Tapping Capacity	1-5/8″ dia.
Speeds	30-80; 50-120; 130-350; 210-550 RPM
Magnet Base Size	4-3/4″ W x 14″ H
Dimensions	34-1/2″ H x 19-1/2″ L x 10″ W
Magnetic Force (1″ plate)	23;600 lbs.
Arbor Bore	1-1/4″ (3/4″ adapter included)
Spindle	MT4
Automatic Lubrication	Included
Automatic Feed	Order MAB 1300 V

INCLUDES:

• 1 Magnetic drilling machine
• 1 Carrying case on wheels
• 1 Arbor adapter to 3/4″ Weldon
• 1 Safety chain
• 1 Hexagon socket screw key SW6
• 1 Drift key MT4
• 1 Operating manual
• 1 Warranty certificate

“
