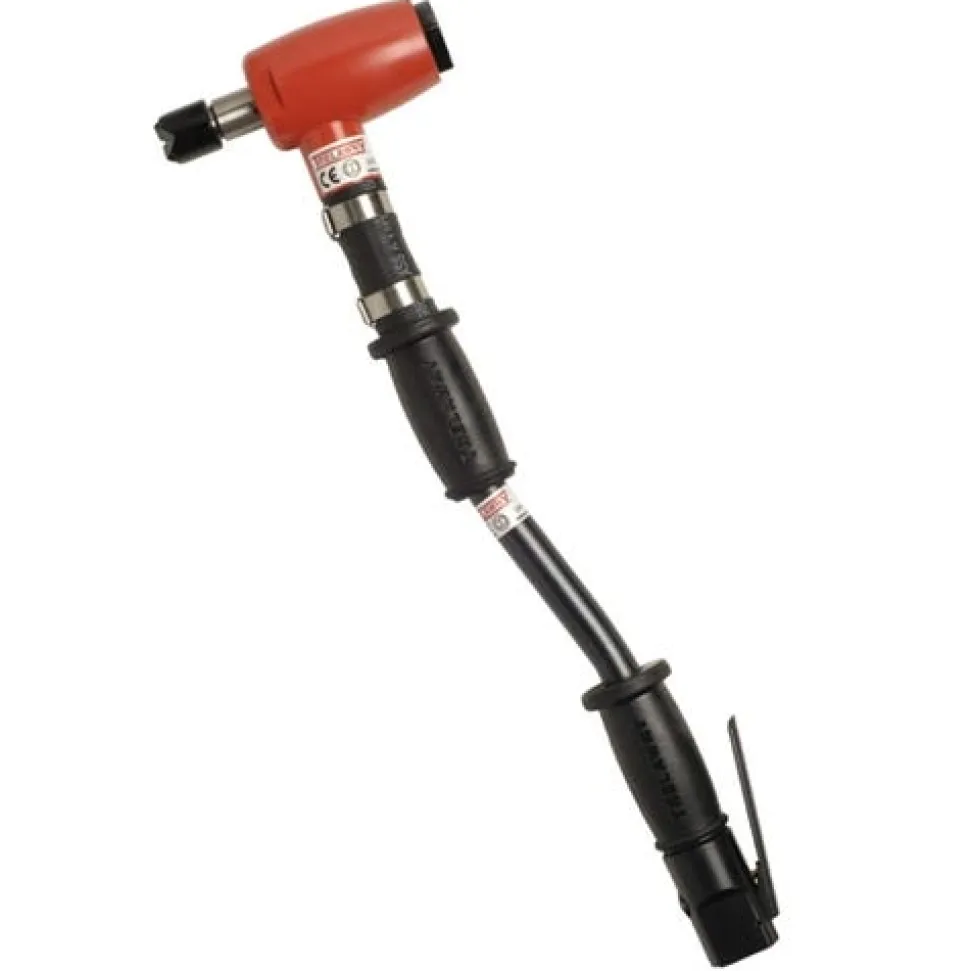

CS Unitec SF1 TCT Cruciform Piston Single Head Pneumatic Hand-Held Scaling Hammer 151.5100

CS Unitec

SF1 TCT Cruciform Piston Single Head Pneumatic Hand-Held Scaling Hammer 151.5100

CS Unitec’s Trelawny line of pneumatic hand-held scaling hammers are ideal tools for the removal of thick scale; heavy corrosion and hard coatings. CS Unitec’s Trelawny SingleHead Hand-Held scaler operates with 7x less vibration than standard models. This tool utilizes vibration damping components to offset the hammer vibration created when the head impacts the workpiece.

FEATURES:

• Vibration reduced single head model to reduce risk of vibrations related injuries.
• Optional spark-resistant copper beryllium replacement heads reduce risk of explosion in potentially hazardous areas.
• Detachable taper fit cutter head reduces cost of replacement and extends piston life.

APPLIATIONS:

• Pipes
• Ship Decks
• Oil Platforms
• Storage Tanks
• Bridge Structures

SPECIFICATIONS:

Blows per minute	3000
Production rate	50 sq. ft./hour
Cutter life	5;300 sq. ft.
Air Consumption	7 CFM @ 90 PSI
Noise Level	88.1 dB(a)
Dimensions (LxH)	19 x 6″
Handle Type	Long
Vibration Levels (m/s^2)	6.8
IMPA	590288 (590382 Equivalent)
ISSA	5509301

“
