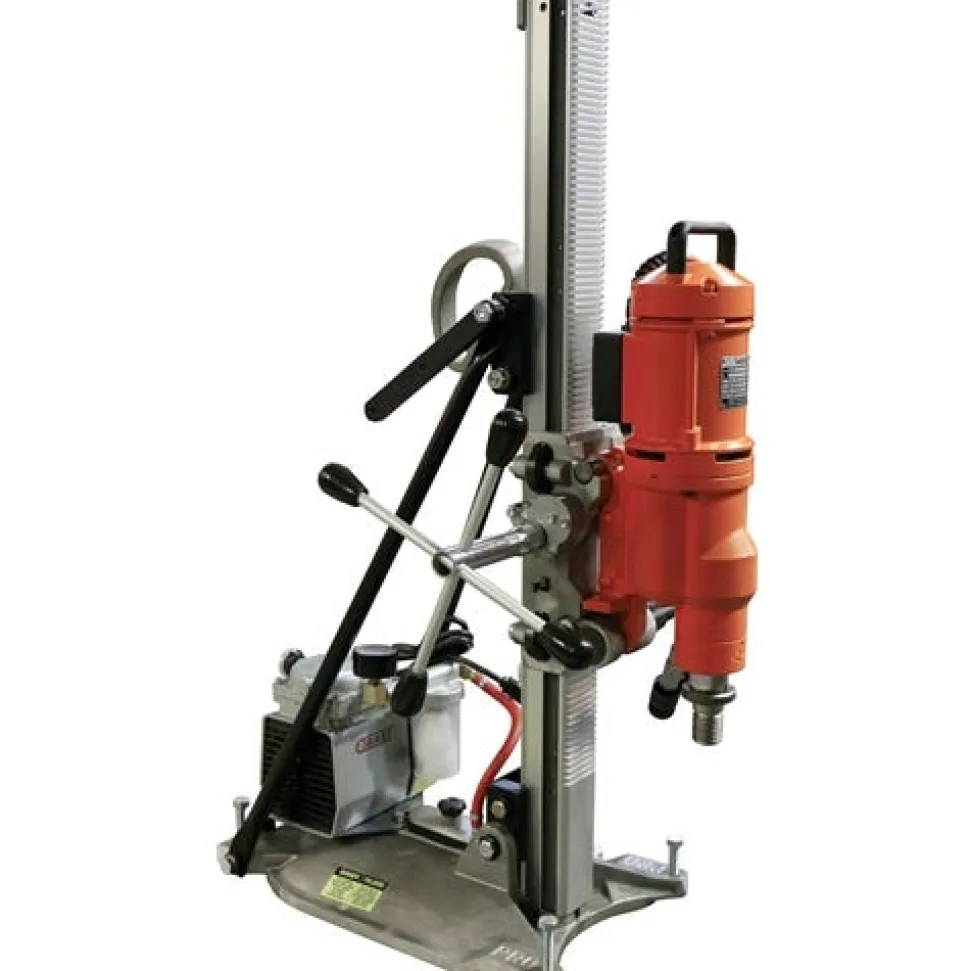

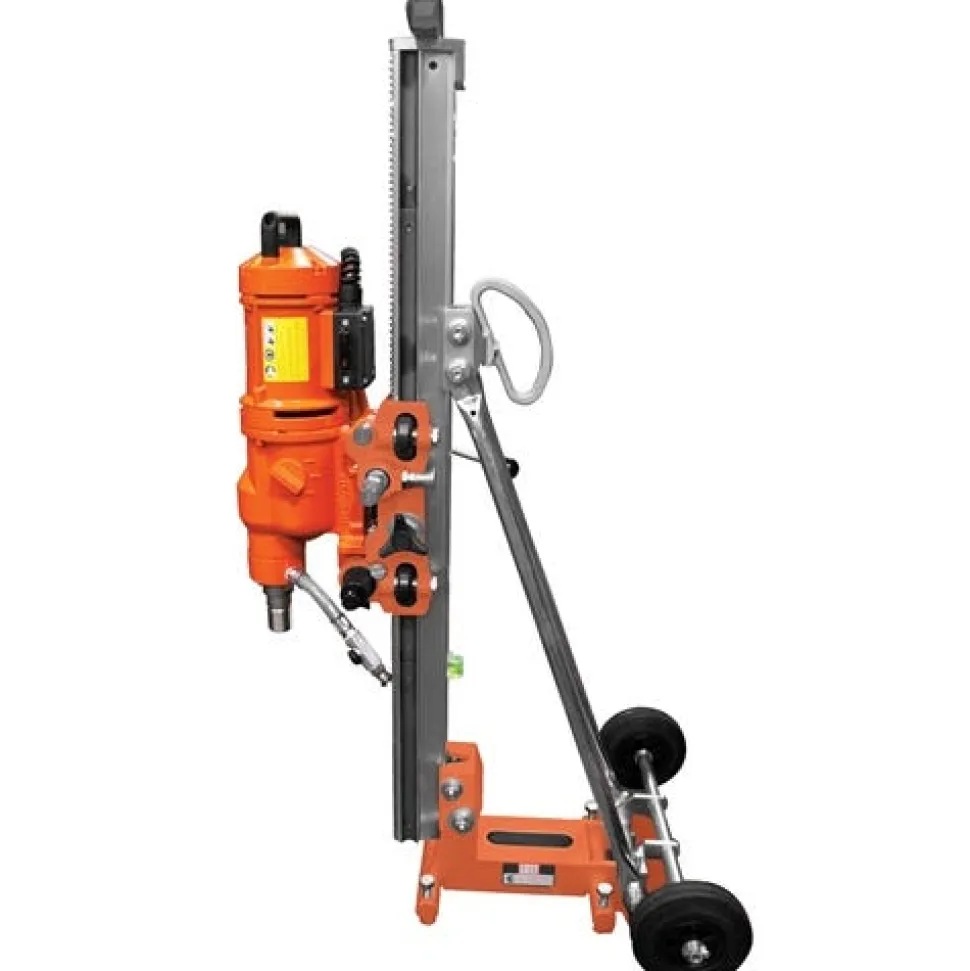

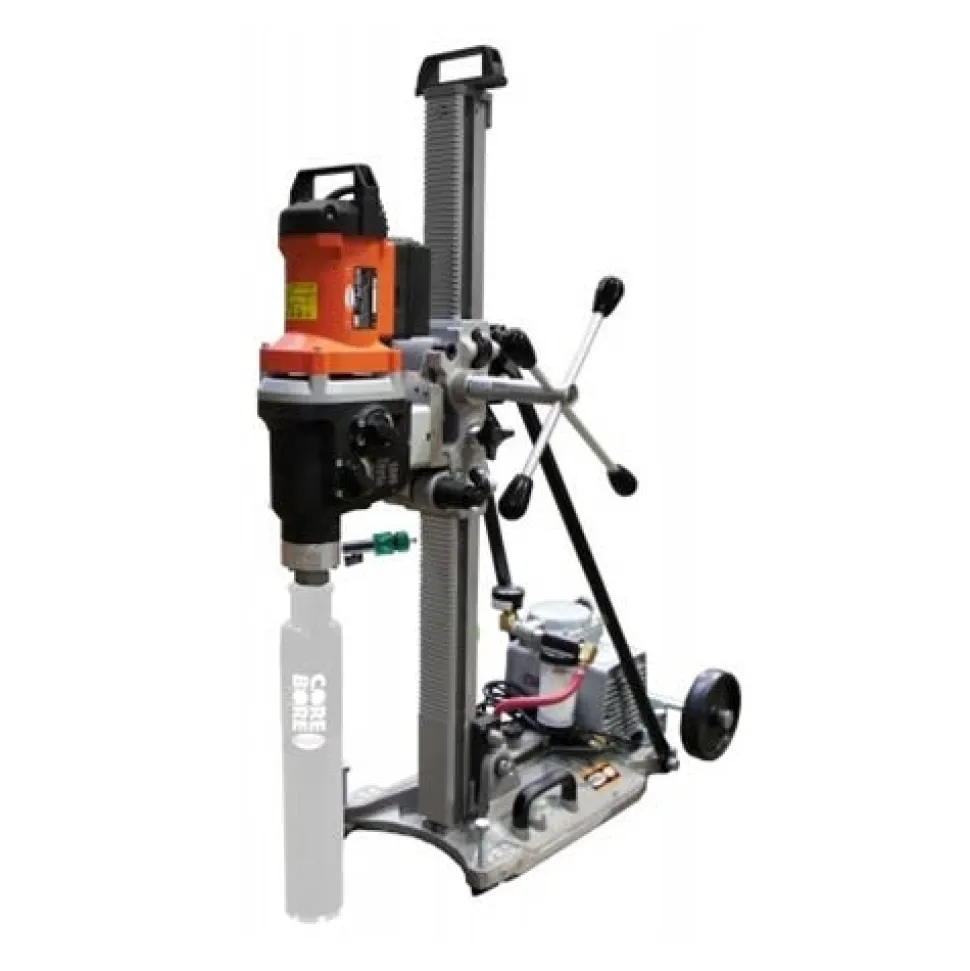

Diamond Products Core Bore 18″ M-5PRO CB744 4 Speed 220v Complete Core Rig 4220098

Diamond Products

M-2 16 stand Drill Rig CB744 Motor Mechanical Anchor Kit

FEATURES:

• 18″ spacers (***purchase separately***)
• Quick disconnect motor mount that makes it easy to remove the motor
• 4-spoke handle (can be used on right or left) on combo rig
• Positive carriage lock and friction lock
• Extruded aluminum light weight column (mast) that has a reinforced track with steel roller guide and rollers
• Dual control panel/amp meter included with combination rigs
• Quick release vacuum button
• Convenient carrying handle
• Level bubble on column
• 2 gear ratios for easy carriage feed
• Angle stand to drill up to 45
• Motor Weight 28.4 lbs.

• M-5 PRO Core Drill Stand Features; with CB744 Motor
• Up to 18″ bit capacity; 16″ out of the box (M-2 2″ spacers 4400073 add 4″ capacity)
• angle stand up to 45 degree
• Quick Disconnect for motor mount
• 4 Spoke Handle; 2 gear ratio for carriage
• Vacuum Anchor Stand
• control panel not needed with CB744
• 6″ wheels for easy transport

SPECIFICATIONS:

“
