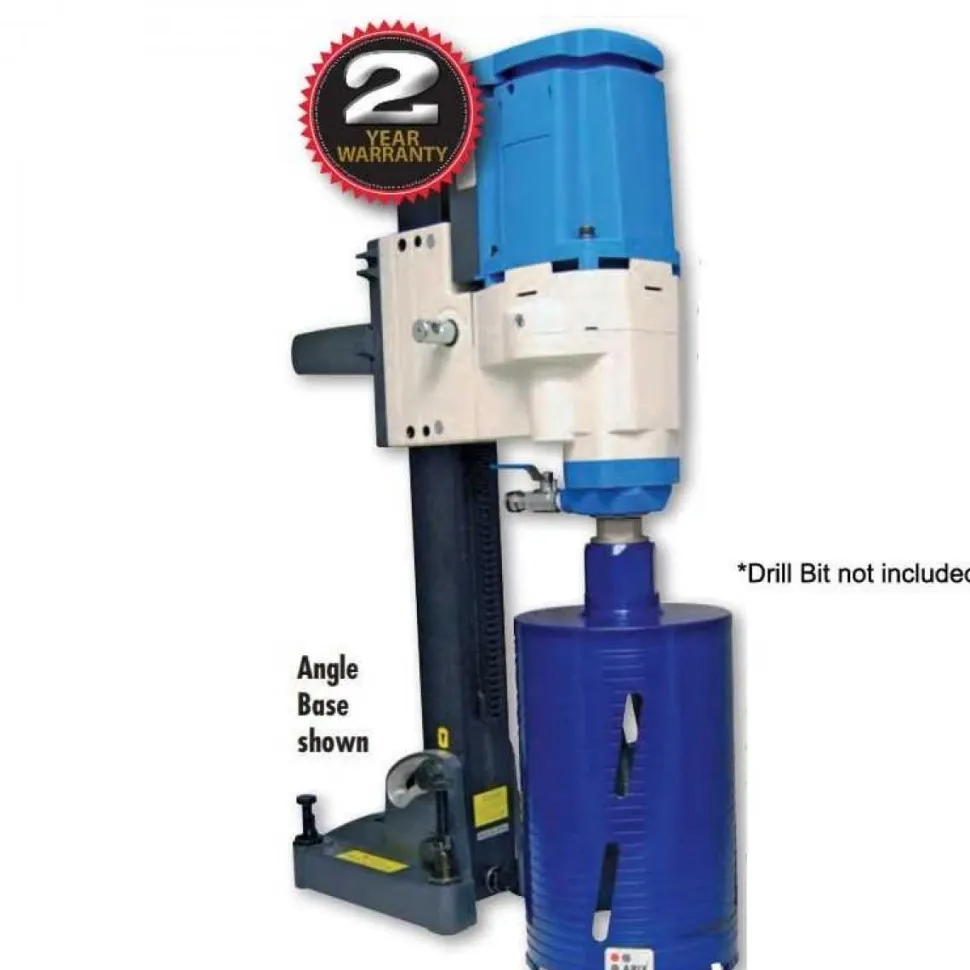

Diteq TS-165 Fixed Base Core Drill DR0064

Diteq

TS-165 Fixed Base Core Drill DR0064

1-Speed 950 RPM. Built-in on/off switch with low voltage drop-out and motor overload protection. 360° water swivel inlet for convenience. Right and left-hand feed handle positions. Carrying handle for easy lifting, 5-3/4” wide x 8” long angle bases with self-cleaning leveling screws and built-in WCR water collector ring fixture. Optionally removable vacuum pads for versatility. 2” square hybrid steel and an aluminum column for lightweight and strength (with anchor base only). The toolkit includes 2 wrenches, 2 Allen keys, core removal wedge, anchor stud w/ washer and nuts and pouch. Case Drills: Kitted core drills come with a 23.5” column with an 8” extension. Without the extension, the kitted core drill will accept up to 10” short core bits. With the extension, standard length (16”) core bits can be used.

FEATURES:

• Carrying Case Included
• Now With 13% More Power

• 1-Speed

• 660 RPM Rated Load

• Base Size 5-3/4″ x 8″

• Spindle Thread 1-1/4″-7 Thread

• Drilling Stroke 26″ with 2-piece column

• Use Short 10″ bits withoutColumn Extension

• Includes 23.5″ Column

• Includes 8″ Column Extension

• Slip Clutch

• 2″ Square Column

• Roller Carriage

• Right or Left carriage feed handle.

• 360° Water swivel.

• HD Switch

• Compatible with the Shibuya Auto Feed System & TS-165 adapter kit sold separately.

• 2 Year Warranty.

• Lifetime Free Clutch adjustments.

SPECIFICATIONS:
