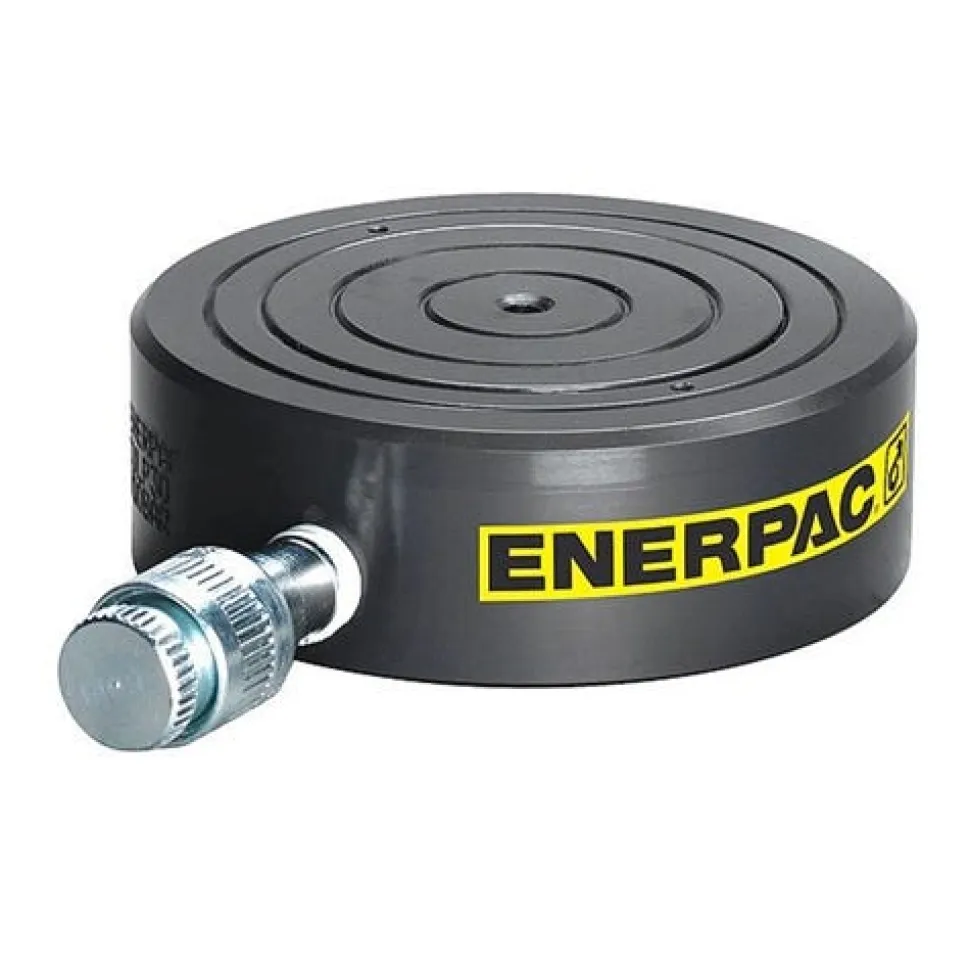

Enerpac 10.9 Ton Hydraulic 0.24 Stroke Single-Acting Ultra Flat Cylinder w/ Stop-Ring CULP10

Enerpac

10.9 Ton Hydraulic 0.24 Stroke Single-Acting Ultra Flat Cylinder w/ Stop-Ring CULP10

FEATURES:

• Up to 4% side load of maximum capacity.
• Stop-ring for maximum stroke limitation.
• Extremely low collapsed height.
• Nitrocarburized surface treatment for harsh conditions.
• Coupler AR630 including dustcap: Use HB7206 hose including AH630 coupler to connect to your pump.

SPECIFICATIONS:

Maximum Operating Pressure (psi)	10;150
Capacity Class (tonnage)	10
Maximum Cylinder Capacity Advance (tons)	10.9
Stroke (in)	0.24
Collapsed Height A (in)	1.08
Extended Height B (in)	1.32
Return Type	Single-Acting; Load Return
Plunger Type	Solid
Material	Steel
Cylinder Effective Area Advance (in2)	2.15
Oil Capacity Advance (in3)	0.51
Surface Treatment	Nitride

“
