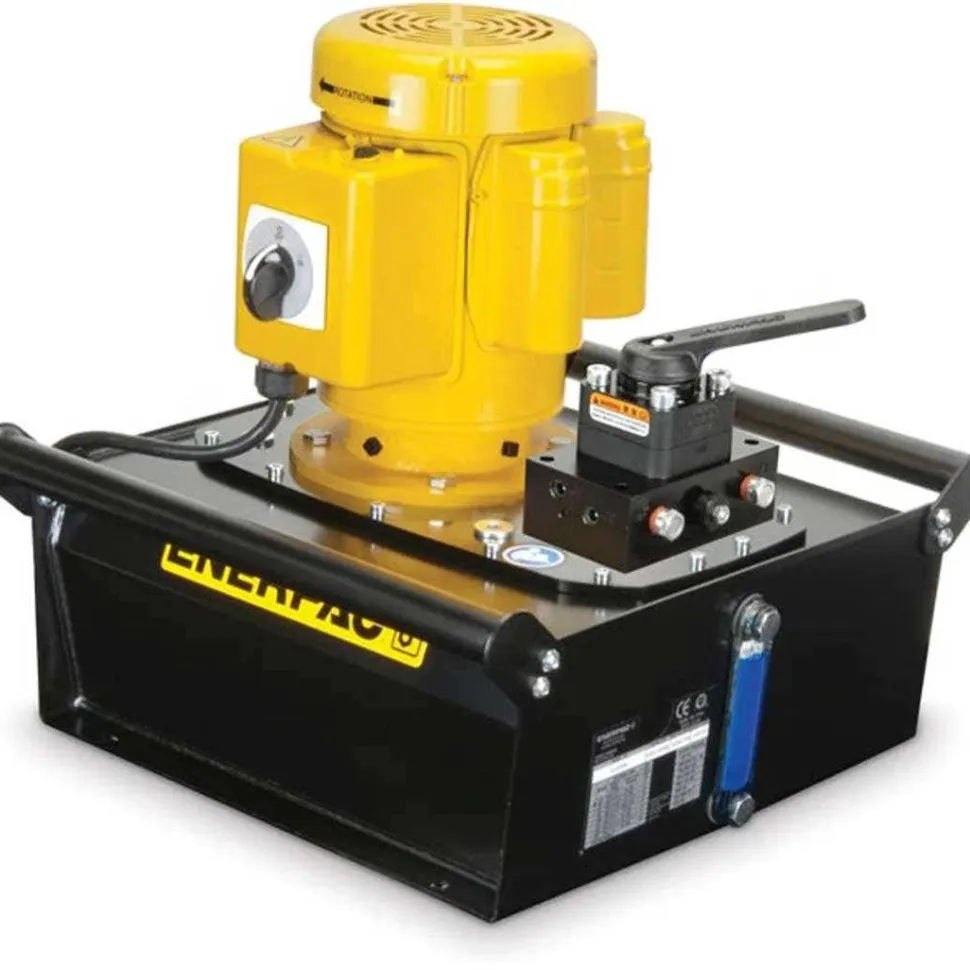

Enerpac 115V, 10.0 gallon Usable Oil, 4/3 Manual Valve Electric Hydraulic Pump ZE4440MB

$136.89

SKU: SKU0Y21s8a5n4 Categories: Hydraulic Pumps High Pressure, Power Tools Tag: Enerpac Brand: Enerpac

Description
Reviews (0)

Additional Details

Enerpac

115V, 10.0 gallon Usable Oil, 4/3 Manual Valve Electric Hydraulic Pump ZE4440MB

FEATURES:

Features Z-Class high-efficiency pump design; higher oil flow and by-pass pressure, cooler running and requires 18% less current draw than comparable pumps
Totally enclosed, fan-cooled industrial electric motors supply extended life and stand up to harsh industrial environments
Low-voltage pendant, on certain models, provides additional safety for the operator
Multiple valve and reservoir configurations provide application specific models to match the most demanding industrial applications

SPECIFICATIONS:

Maximum Operating Pressure (psi)	10,000
Cylinder Compatability	Double-acting
Valve Type	4-way, 3-position, Tandem Center
Motor Electrical Specification	115 V, 1 Ph, 50/60 Hz

INCLUDES:

(1) Hydraulic Pump

Manufacturer Specifications

Maximum Operating Pressure Ranges Psi	10000
Usable Oilcapacity	10 Gal
Maximum Flow At Rated Pressure	60 inÂ³
Dimension D	22.7 In \| 577 Mm
Dimension A	10.6 In \| 270 Mm
Relief Valve Adjustment Range Psi	1,000 – 10,000
Type	Hydraulic Pump
Output Flow Rate 7 bar	10,7 L/min
Pump Control	Manual
Motor Electrical Specification	115 V, 1 Ph, 50/60 Hz
Motor Size	1.5 HP \| 1750 RPM
Output Flow Rate 700 Psi	600 inÂ³/min
News Feed Product Group	Pumps
Output Flow Rate 50 bar	9,8 L/min
Dimension B	15.7 In \| 399 Mm
Upsell item	ZE4440SB
Shipping Weight	216.72 lbs
Usable Oil Capacity	40,0 Litres
Motor	50/60 Hz Hertz \| 1 Ph Phases
Sound Leveld Ba	75
Weight	192 lbs \| 87,1 kgs
Maximum Flow At Rated Pressure imperial	60 in3/min
Maximum Flowat Rated Pressure	60 in3/min
Valve Model	VM43
Pump Power Source	Electric
Output Flow Rate 100 psi	650 inÂ³/min
Product Line	Industrial Tools
Country of Origin	United States
Output Flow Rate 350 bar	1,0 L/min
Duty Cycle	Extended
Relief Valve Adjustment Range bar	70 – 700
Sub Types	Electric Pump – High Flow
Dimension H	28.1 In \| 625 Mm
Output Flow Rate 10000 Psi	60 inÂ³/min
Dimension E	18.9 In \| 480 Mm
Cylinder Compatability	Double-acting
Output Flow Rate 5000 Psi	62 inÂ³/min
Dimension C	19.9 In \| 505 Mm
Motor Voltage	115 V
Maximum Flow Rate Rangesat Rated Pressure	60 – 119 inÂ³/min
Reservoir Capacity	40000 cmÂ³ \| 2379 inÂ³
Output Flow Rate 700 bar	0,98 L/min
Pump Valve Type	4-way, 3-position, Tandem Center
Dimension D1	22.5 in \| 572 mm
Valve Operation	Manual
Valve Function	Advance / Hold / Retract

Specifications

More Information
OPT SKU	ENP-ZE4440MB
MPN	ZE4440MB
UPC/GTIN	662005137817
Product Type	Electric Hydraulic Pump
Google Category	Hardware > Hardware Pumps
Power Method	Corded/Electric
Voltage	110V/120V
Shipping Weight	192.00
