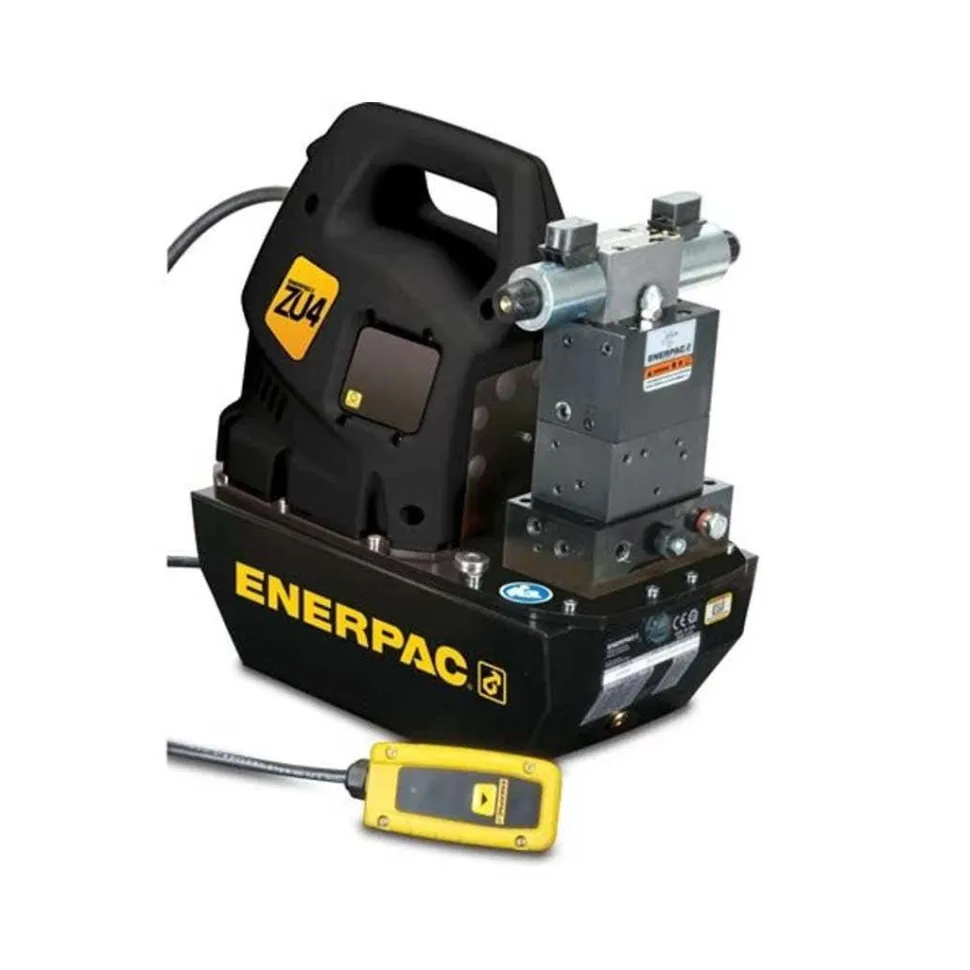

Enerpac 115V, 3/3 Solenoid Valve with Pendant Electric Hydraulic Pump ZU4308SB
$132.89
Enerpac
115V, 3/3 Solenoid Valve with Pendant Electric Hydraulic Pump ZU4308SB
Enerpac ZU Series 2-stage hydraulic electric pumps feature a 1.7 hp universal motor which delivers 60 in3 / min of oil flow at 10,000 psi. They run cooler and have 18% less current draw than comparable pumps. ZU pumps feature our best-in-class Z-Class pump technology in a portable and durable format.
FEATURES:
- Features Z-Class high-efficiency pump design; higher oil flow and bypass pressure, cooler running and requires 18% less current draw than comparable pumps
- Powerful 1.7 hp universal electric motor provides high power-to-weight ratio and excellent low-voltage operating characteristics
- High-strength, molded composite shroud protects motor and electronics, while providing an ergonomic, non-conductive handle for easy transport
- Low-voltage pendant provides additional safety for the operator (remote control units)
SPECIFICATIONS:
| Maximum Operating Pressure (psi) | 10,000 |
| Cylinder Compatability | Single-acting |
| Maximum Flow at Rated Pressure | 60 in3/min |
| Power Source | Electric |
INCLUDES:
(1) Hydraulic Pump
| Output Flow Rate 700 Psi | 535 in³/min |
|---|---|
| Dimension C | 11 In | 279 Mm |
| Maximum Operating Pressure Ranges Psi | 10000 |
| Output Flow Rate 100 psi | 700 in³/min |
| Weight | 85 lbs | 39 kgs |
| Sub Types | Electric Pump – Portable |
| Relief Valve Adjustment Range Psi | 2,000 – 10,000 |
| News Feed Product Group | Pumps |
| Type | Hydraulic Pump |
| Usable Oil Capacity | 8,0 Litres |
| Dimension A | 16.7 In | 424 Mm |
| Output Flow Rate 700 bar | 1,0 L/min |
| Maximum Flow Rate Rangesat Rated Pressure | 60 – 119 in³/min |
| Output Flow Rate 5000 Psi | 76 in³/min |
| Motor Electrical Specification | 115 V, 1 Ph, 50/60 Hz |
| Product Line | Industrial Tools |
| Pump Valve Type | 3-way, 3-position, Tandem Center |
| Country of Origin | United States |
| Output Flow Rate 7 bar | 11,5 L/min |
| Maximum Flow At Rated Pressure imperial | 60 in3/min |
| Soleniod Valve Voltage | 24 VDC |
| Motor Size | 1.7 HP |
| Usable Oilcapacity | 2 Gal |
| Output Flow Rate 10000 Psi | 60 in³/min |
| Relief Valve Adjustment Range bar | 140 – 700 |
| Cylinder Compatability | Single-acting |
| Valve Model | VE33 |
| Sound Leveld Ba | 85 – 90 |
| Pump Power Source | Electric |
| Dimension D | 8.1 In | 206 Mm |
| Motor | 50/60 Hz Hertz | 1 Ph Phases |
| Reservoir Capacity | 8000 cm³ | 416 in³ |
| Valve Function | Advance / Hold / Retract |
| Motor Voltage | 115 V |
| Output Flow Rate 350 bar | 1,2 L/min |
| Maximum Flow At Rated Pressure | 60 in³ |
| Shipping Weight | 91.39 lbs |
| Pump Control | Pendant |
| Dimension B | 5.6 In | 142 Mm |
| Output Flow Rate 50 bar | 8,8 L/min |
| Maximum Flowat Rated Pressure | 60 in3/min |
| Duty Cycle | Intermittent |
| Valve Operation | Solenoid |
| OPT SKU | ENP-ZU4308SB |
|---|---|
| MPN | ZU4308SB |
| UPC/GTIN | 662005127399 |
| Product Type | Electric Hydraulic Pump |
| Google Category | Hardware > Hardware Pumps |
| Power Method | Corded/Electric |
| Voltage | 110V/120V |
| Shipping Weight | 85.00 |
