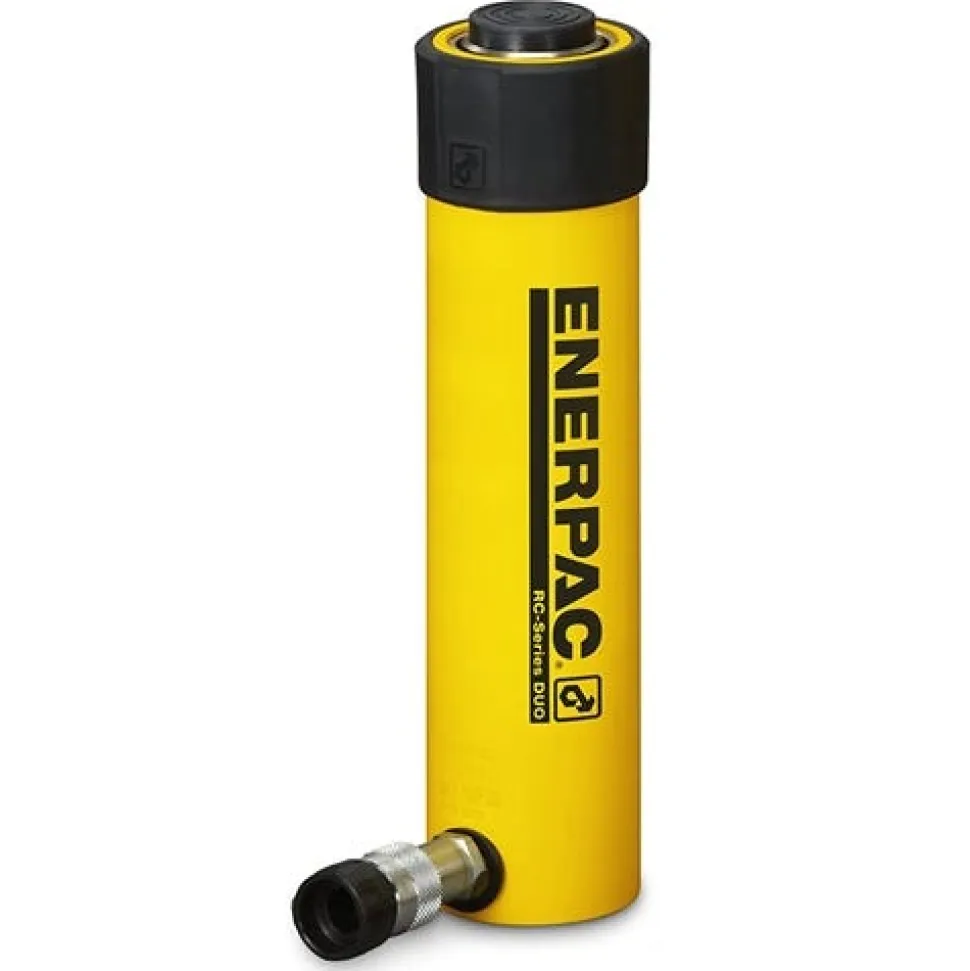

Enerpac 15.7 Ton Hydraulic 8″ Stroke Single-Acting General Purpose Cylinder RC158
Original price was: $1,181.00.$120.99Current price is: $120.99.
Enerpac
15.7 Ton Hydraulic 8 Stroke Single-Acting General Purpose Cylinder RC158
This Enerpac RC158 single-acting alloy steel hydraulic cylinder with 15-ton capacity has a round body with one port and spring-return of the single piston rod with 8″ stroke for use in general-purpose applications in any position. The single-acting hydraulic cylinder uses liquid pumped through its single port for rod extension and a pretensioned internal spring for expedited rod retraction to produce continued movement.
FEATURES:
- Unique GR2 Bearing Design; reduces wear; extending life.
- Base mounting holes enable easy fixturing.
- Designed for use in all positions.
- High strength alloy steel for durability.
- Redesigned cylinder thread protector for ease of use.
- Heavy-duty; pretensioned spring improves retraction speed.
- Baked enamel finish for increased corrosion resistance.
- CR-400 coupler and dust cap included on all models.
- Plunger wiper reduces contamination; extending.
SPECIFICATIONS:
| Maximum Operating Pressure (psi) | 10;000 |
|---|---|
| Capacity Class (tonnage) | 15 |
| Maximum Cylinder Capacity Advance (tons) | 15.7 |
| Stroke (in) | 8 |
| Collapsed Height A (in) | 12.69 |
| Extended Height B (in) | 20.69 |
| Return Type | Single-Acting; Spring Return |
| Plunger Type | Solid |
| Material | Steel |
| Cylinder Effective Area Advance (in2) | 3.14 |
| Oil Capacity Advance (in3) | 25.13 |
| Surface Treatment | Paint |
“
| Return Type | Single-Acting, Spring Return |
|---|---|
| Saddle Diameter J | 1.5 in | 38 mm |
| Optional Tilt Saddle Addition To Collapsed Height A 1 | 0.43 in | 11 mm |
| Extended Height B | 20.69 in | 525 mm |
| Saddle Protrusionfrom Plunger K1 | 9 mm |
| Maximum Operating Pressure Ranges psi | 10000 |
| Oil Capacity Advance | 25.13 in³ | 411 cm³ |
| Product Line | Industrial Tools |
| Saddle Maximum Tilt Angle Radius Degrees | 5 |
| Plunger internal Threadin O | 1″ – 8 in |
| Cylinder Effective Area Advance | 3.14 in² | 20,3 cm² |
| Collapsed Height A Ranges | 10.0 – 14.99 in | 255 – 381 mm |
| Base Mounting Holes Bolt Circle U | 1.88 in | 48 mm |
| Collar Thread W | 2 3/4″ – 16 UN in | 2 3/4″ – 16 un mm |
| News Feed Product Group | Cylinders and Jacks |
| Plunger Diameter F | 1.63 in | 41,3 mm |
| Plunger Thread Length P | 1 in | 25 mm |
| Stroke Ranges | 7.0 – 9.99 in | 175 – 239 mm |
| Saddle Protrusionfrom Plunger K | 0.38 in |
| Country of Origin | China |
| Outside Diameter D | 2.75 in | 70 mm |
| Saddle Diameter J1 | 35 mm |
| Base Mounting Holes Thread Depth Z | 0.5 in | 12 mm |
| Shipping Weight | 17.95 lbs |
| Sub Types | General Purpose Cylinder |
| Cylinder Bore Diameter E | 2 in | 50,8 mm |
| Weight | 18 lbs | 8,2 kgs |
| Baseto Advance Port H | 1 in | 25 mm |
| Surface Treatment | Paint |
| Plunger Type | Solid |
| Collar Thread Length X | 1.19 in | 30 mm |
| Base Mounting Holes Thread V | 3/8″- 16 un | 3/8″ – 16un in |
| Maximum Cylinder Capacity Advance | 15.7 Imperial Tons | 142 kN |
| Optional Tilt Saddle Diameter J1 | 1.38 in |
| Saddle Protrusion From Plunger K | 9 mm |
| Upsell item | RAC208,RR308 |
| Plunger internal Thread O | 1″ – 8 in |
| Type | Hydraulic Cylinders |
| Collapsed Height A | 12.69 in | 322 mm |
| Cylinder Class | 15 Imperial Tons |
| Cylinder Material | Steel |
| Sku | 56830701 |
| Does single item arrive in multiple boxes? (yes or no) | No |
| Material | Steel |
| Product warranty | 1 Year Limited |
| Is this a drop ship item? | Yes |
| Item weight | 1 |
| Item height | 2 |
| # items in master pack | 1 |
| Is the item glass or packaged in glass? | No |
| Will item melt above 75 degrees | No |
| Package width uom | inches |
| Is product regulated by state or local restrictions? | No |
| Item width | 2 |
| Item length | 4 |
| Is item energy star or watersense qualified? | No |
| Minimum order qty | 1 |
| Package length | 2 |
| Gtin | 32886857805 |
| Package weight | 1 |
| Upc number | 32886857805 |
| Is item fda, dea, atf or usda regulated? (yes or no) | No |
| Is item dot regulated, hazmat or orm-d? | No |
| Color | Black |
| Master pack length | 2 |
| Warranty | 1 Year Limited |
| Is this product restricted from sale in california by the carb law? | No |
| Master pack weight | 1 |
| Package height uom | inches |
| Master pack height | 4 |
| Shipping weight | 1 |
| Master pack width | 2 |
| Individual item packed in packaging that can be reshipped to customers? | Yes |
| OPT SKU | ENP-RC158 |
|---|---|
| MPN | RC158 |
| UPC/GTIN | 662005301126 |
| Product Type | Cylinder Rams Single Acting |
| Google Category | Business & Industrial > Material Handling |
| Stroke | 8″ |
| Tonnage | 15-Ton |
| Shipping Weight | 19.00 |
