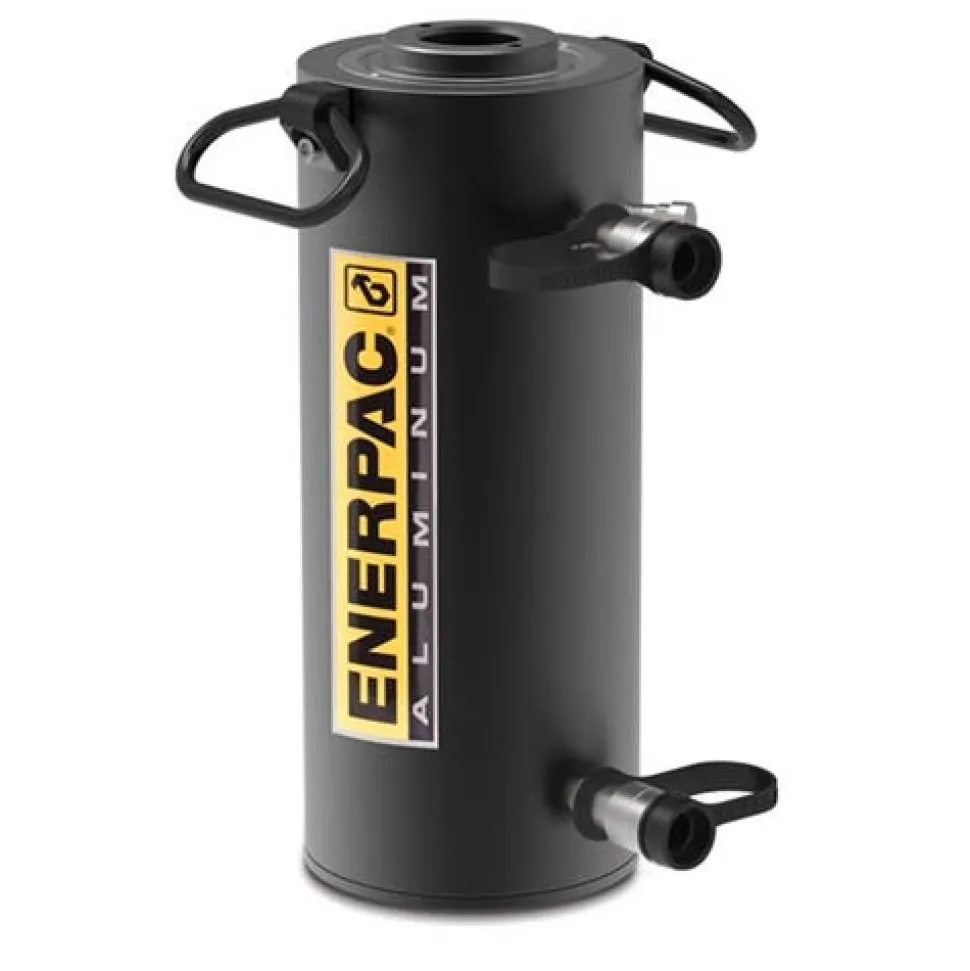

Enerpac 60 Ton Hydraulic 6.50″ Stroke Double-Acting Hollow Plunger Cylinder RRH606
$122.89
Additional Details
The Enerpac RRH606 double-acting hollow-plunger hydraulic cylinder with 60-ton capacity and 6.50″ stroke has a hollow plunger for use in applications where the need for push and pull forces might alternate. The double-acting hydraulic cylinder uses liquid pumped through two ports on opposite ends of the cylinder barrel to push out and retract the piston rod to produce continued movement.
Features
- Relief valves prevent damage in case of over-pressurization
- Baked enamel finish for increased corrosion resistance
- Collar threads enable easy fixturing
- Double-acting operation for fast retraction
- Nickel-plated floating center tube increases product life
- Hollow plunger allows for both pull and push forces
- CR-400 couplers and dust caps included on all models
- Plunger wiper reduces contamination, extending cylinder life
Manufacturer Specifications
| Max. Operating Pressure | 10,000 PSI |
|---|---|
| Cylinder Capacity – Push | 64 tons |
| Cylinder Capacity – Pull | 42 tons |
| Stroke | 6.5 in. |
| Retracted Height | 12.75 in. |
| Extended Height | 19.25 in. |
| Effective Area – Push | 12.73 sq. in. |
| Effective Area – Pull | 8.37 sq. in. |
| Oil Capacity – Push | 82.77 cu. in. |
| Oil Capacity – Pull | 54.24 cu. in. |
Specifications
| OPT SKU | ENP-RRH606 |
|---|---|
| MPN | RRH606 |
| UPC/GTIN | 662005303205 |
| Product Type | Cylinder Rams Double Acting |
| Google Category | Business & Industrial > Material Handling |
| Stroke | 6″ |
| Tonnage | 60-Ton |
| Shipping Weight | 79.00 |
