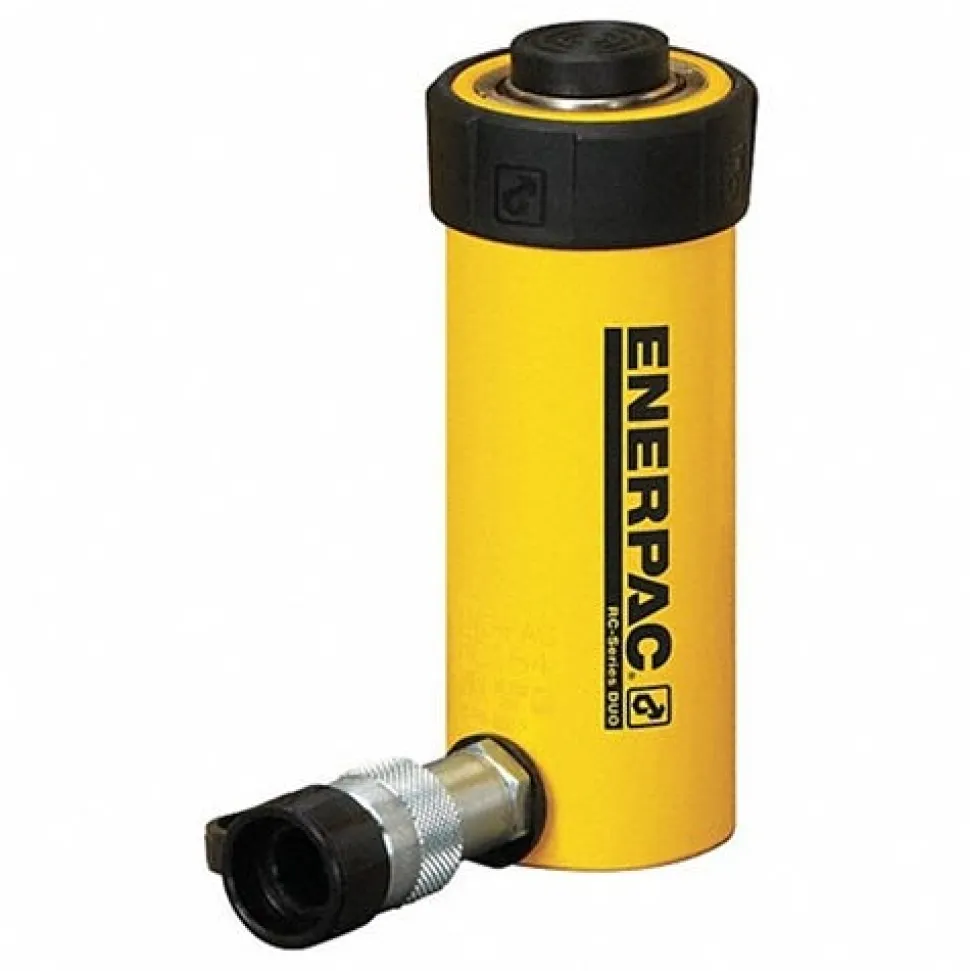

Enerpac 79.5 Ton Hydraulic 6.13″ Single-Acting General Purpose Cylinder RC756
$130.89
Enerpac
79.5 Ton Hydraulic 6.13 Single-Acting General Purpose Cylinder RC756
This Enerpac RC756 single-acting alloy steel hydraulic cylinder with 75-ton capacity has a round body with one port and spring-return of the single piston rod with 6.13″ stroke for use in general-purpose applications in any position. The single-acting hydraulic cylinder uses liquid pumped through its single port for rod extension and a pretensioned internal spring for expedited rod retraction to produce continued movement.
FEATURES:
- Unique GR2 Bearing Design; reduces wear; extending life.
- Collar threads enable easy fixturing.
- Designed for use in all positions.
- High strength alloy steel for durability.
- Redesigned cylinder thread protector for ease of use.
- Heavy-duty; pretensioned spring improves retraction speed.
- Baked enamel finish for increased corrosion resistance.
- CR-400 coupler and dust cap included on all models.
- Plunger wiper reduces contamination; extending.
SPECIFICATIONS:
| Maximum Operating Pressure (psi) | 10;000 |
|---|---|
| Capacity Class (tonnage) | 75 |
| Maximum Cylinder Capacity Advance (tons) | 79.5 |
| Stroke (in) | 6.13 |
| Collapsed Height A (in) | 11.25 |
| Extended Height B (in) | 17.38 |
| Return Type | Single-Acting; Spring Return |
| Plunger Type | Solid |
| Material | Steel |
| Cylinder Effective Area Advance (in2) | 15.9 |
| Oil Capacity Advance (in3) | 97.41 |
| Surface Treatment | Paint |
“
| News Feed Product Group | Cylinders and Jacks |
|---|---|
| Oil Capacity Advance | 97.41 in³ | 1601 cm³ |
| Product Line | Industrial Tools |
| Sub Types | General Purpose Cylinder |
| Plunger Diameter F | 3.75 in | 95,3 mm |
| Collar Thread Length X | 1.75 in | 44 mm |
| Saddle Protrusionfrom Plunger K1 | 2 mm |
| Return Type | Single-Acting, Spring Return |
| Saddle Diameter J1 | 71 mm |
| Type | Hydraulic Cylinders |
| Stroke Ranges | 4.5 – 6.99 in | 120 – 174 mm |
| Plunger Type | Solid |
| Saddle Protrusion From Plunger K | 2 mm |
| Cylinder Material | Steel |
| Cylinder Bore Diameter E | 4.5 in | 114,3 mm |
| Maximum Operating Pressure Ranges psi | 10000 |
| Country of Origin | China |
| Baseto Advance Port H | 1.19 in | 30 mm |
| Plunger Thread Length P | – in | ‘- mm |
| Optional Tilt Saddle Addition To Collapsed Height A 1 | 0.59 in | 15 mm |
| Maximum Cylinder Capacity Advance | 79.5 Imperial Tons | 718 kN |
| Collapsed Height A Ranges | 10.0 – 14.99 in | 255 – 381 mm |
| Collapsed Height A | 11.25 in | 286 mm |
| Base Mounting Holes Bolt Circle U | 4.5 in | 114 mm |
| Upsell item | RAC1006,RR756 |
| Surface Treatment | Paint |
| Shipping Weight | 80 lbs |
| Outside Diameter D | 5.75 in | 146 mm |
| Saddle Protrusionfrom Plunger K | 0.11 in |
| Base Mounting Holes Thread Depth Z | 0.63 in | 16 mm |
| Saddle Maximum Tilt Angle Radius Degrees | 5 |
| Optional Tilt Saddle Diameter J1 | 2.81 in |
| Cylinder Effective Area Advance | 15.9 in² | 102,6 cm² |
| Collar Thread W | 5 3/4″ – 12 UN in | 5 3/4″ – 12 un mm |
| Saddle Diameter J | 2.8 in | 71 mm |
| Cylinder Class | 75 Imperial Tons |
| Extended Height B | 17.38 in | 442 mm |
| Plunger internal Threadin O | ‘- in |
| Weight | 65 lbs | 29,5 kgs |
| Base Mounting Holes Thread V | 5/8″-11 UNC | 5/8″-11 UNC in |
| Plunger internal Thread O | ‘- in |
| OPT SKU | ENP-RC756 |
|---|---|
| MPN | RC756 |
| UPC/GTIN | 662005301829 |
| Product Type | Cylinder Rams Single Acting |
| Google Category | Business & Industrial > Material Handling |
| Stroke | 6″ |
| Tonnage | 75-Ton |
| Shipping Weight | 65.00 |
