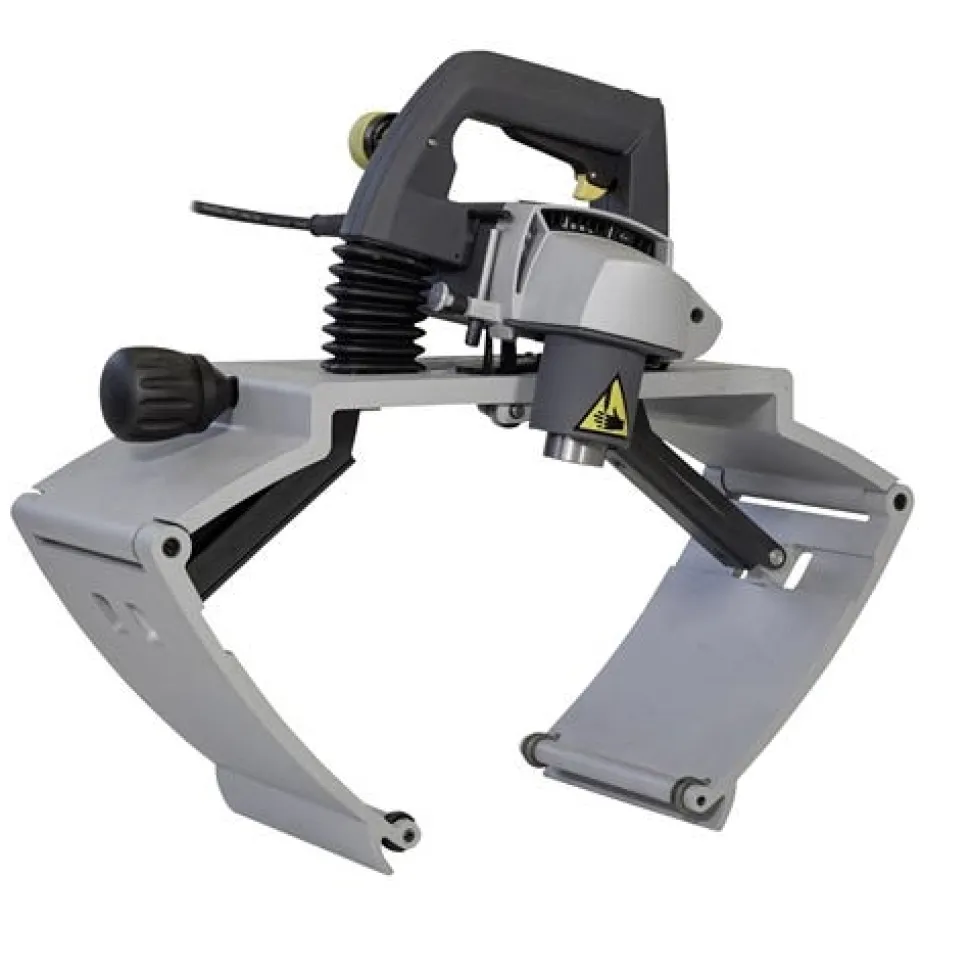

EXACT PipeBevel PB220E (1″ – 8.6″) Pipe Beveling System 7048121US

** Non-Returnable After First Use **

EXACT

(0.98- 8.6) PIPEBEVEL 220E SYSTEM PB220E

FEATURES:

-Does not come with heads or tips

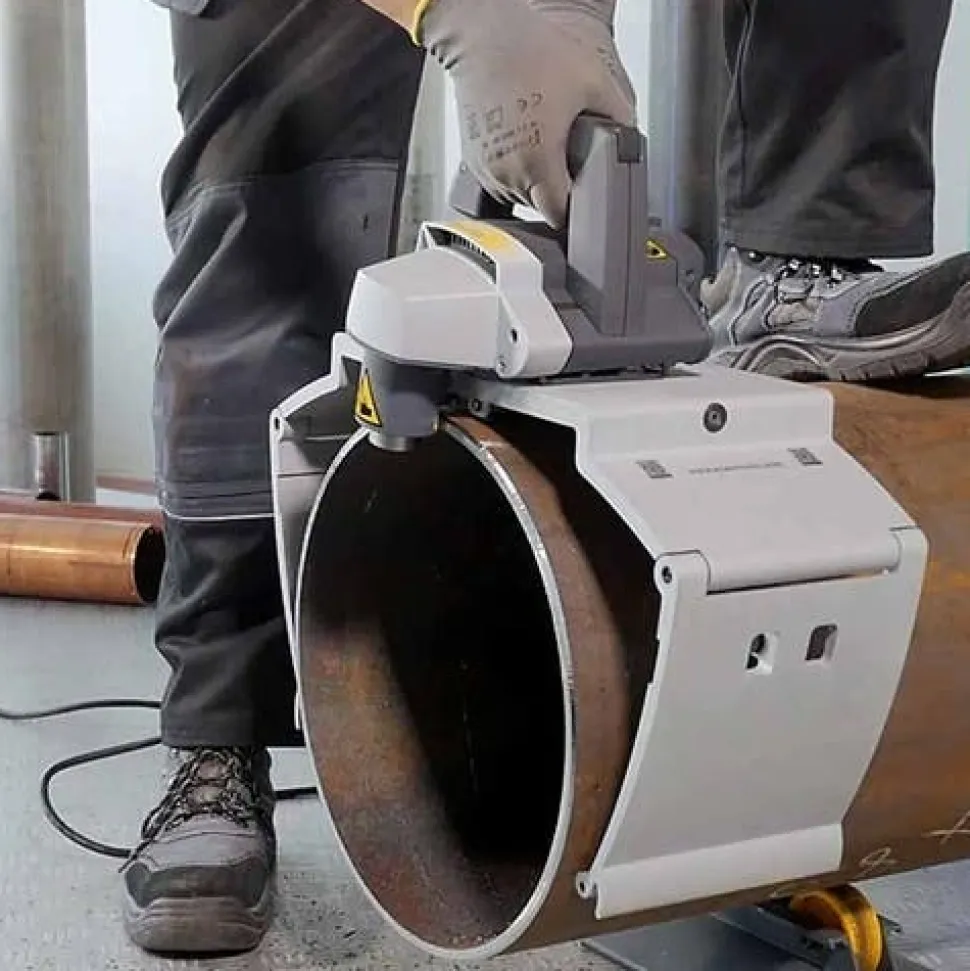

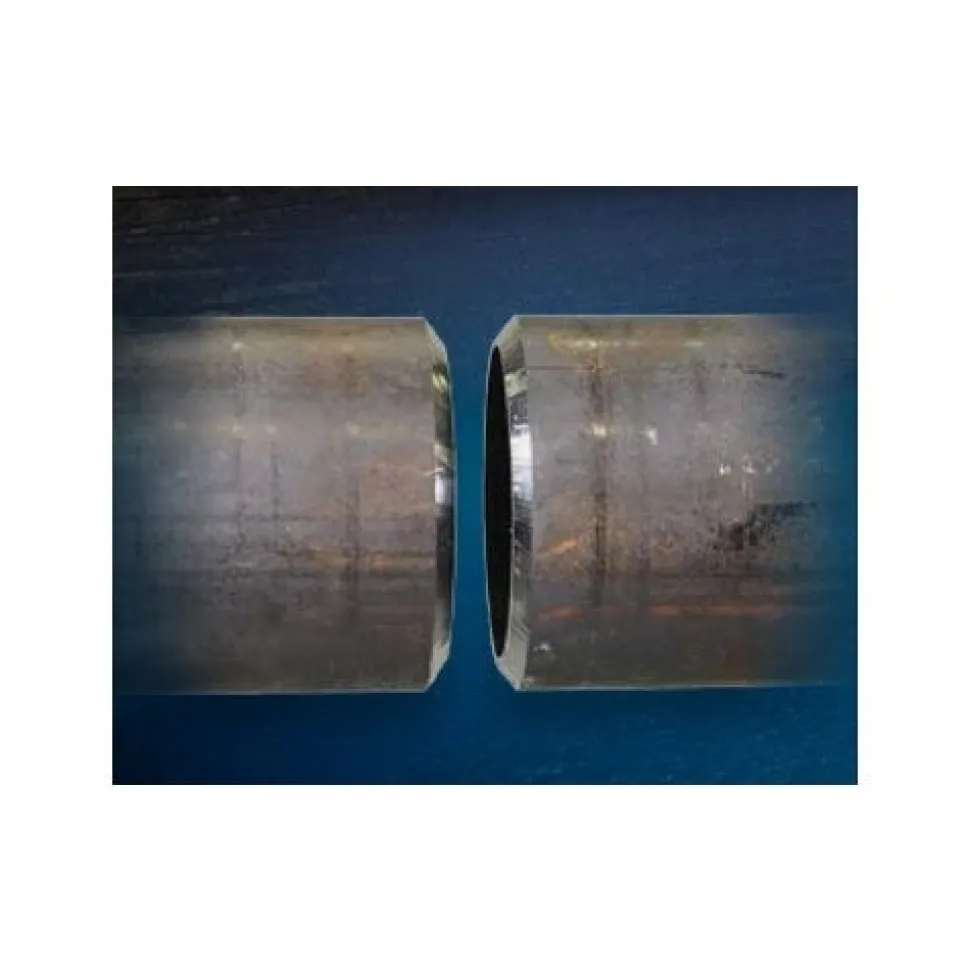

Continuous good results for on-site pipe bevelling applications with Exacts PipeBevel 360E you can easily make fast and accurate welding bevels to pipes in a variety of materials. The user interface of the machine is similar to Exact pipe saws; which makes it easy for the operator to adapt after cutting the pipe with any Exact pipe saw. The cutting head of the beveller has 3 cutting tips; each of them having 4 cutting edges to rotate once becoming blunt; so it is economical to use. The cutting heads are available in most commonly used bevel angles (30; 37.5 and 45). It is also possible to make different tailored bevel angles if required. There is also a stopper feature; that enables the operator to make similar additional bevels to the same pipe O/D.

• Pipe (OD): 110mm 360mm (4.33- 14.17)
• Wall thickness: 10mm (0.39) st
• Cuts the following pipe materials: Steel; stainless steel; aluminium

SPECIFICATIONS:

Voltage / Power / Current	220-240 V / 1400W / 6.1 A
No-Load speed	7000 – 10500 r/min
Blade holder diameter	48 mm (1.89)
Different bevel angles	30 | 37;5 | 45
Weight	6;7kg (14.8 lbs)
Range of use	25mm 220mm (0.98- 8.6)
Max. pipe wall	10mm (0.39) st
