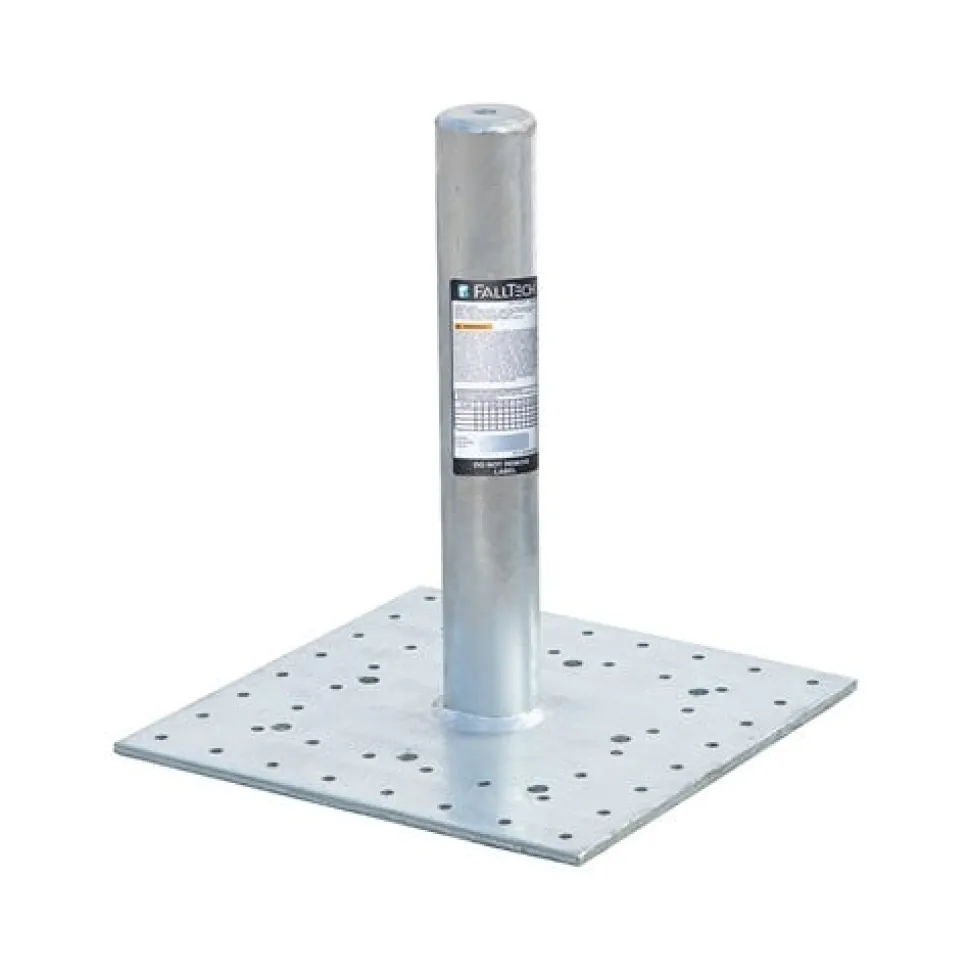

FallTech 18″ Threaded Post Anchor Connector For Wood, Concrete & Steel 78218WCSTH

FallTech

18 Threaded Post Anchor Connector For Wood; Concrete & Steel 78218WCSTH

The FallTech Threaded Post Anchor connector is designedfor maximum versatility and safety in fall arrest andrestraint applications.

FEATURES:

• Features 5/8″-11 threaded hole for connection attachment of user supplied SRL cradle and swivel D-ring.
• Fully galvanized structural steel post and base plate for durable performance.
• 3/8″ thick base plate allows for installation onto I-beams or other structures.
• The 18″ height comfortably elevate user’s connection point above the working surface.
• For permanent installation onto wood; concrete; or steel structures.
• For use in personal fall arrest applications.
• User-supplied fasteners required (see user’s instruction manual).

SPECIFICATIONS:

Material Specifications
Base Plate	Galvanized Steel
Post	Galvanized Steel
Compatible FallTech Components
7840SD	Swivel D-ring
7840SC	SRL Cradle
Performance Specifications
Static Strength	5;000 lbs. Min.
ANSI User Capacity	One User up to 310 lbs. Max
Relevant Standards
ANSI	Z359.18-2017
OSHA	1926.502
Threaded Post Anchor Dimensions
Post Height	18″
Base Plate	16″ x 16″ x 3/8″

“
