FallTech 3pc Portable Davit Arm Base (Base Only) 6500844

FallTech

3pc Portable Davit Arm Base (Base Only) 6500844

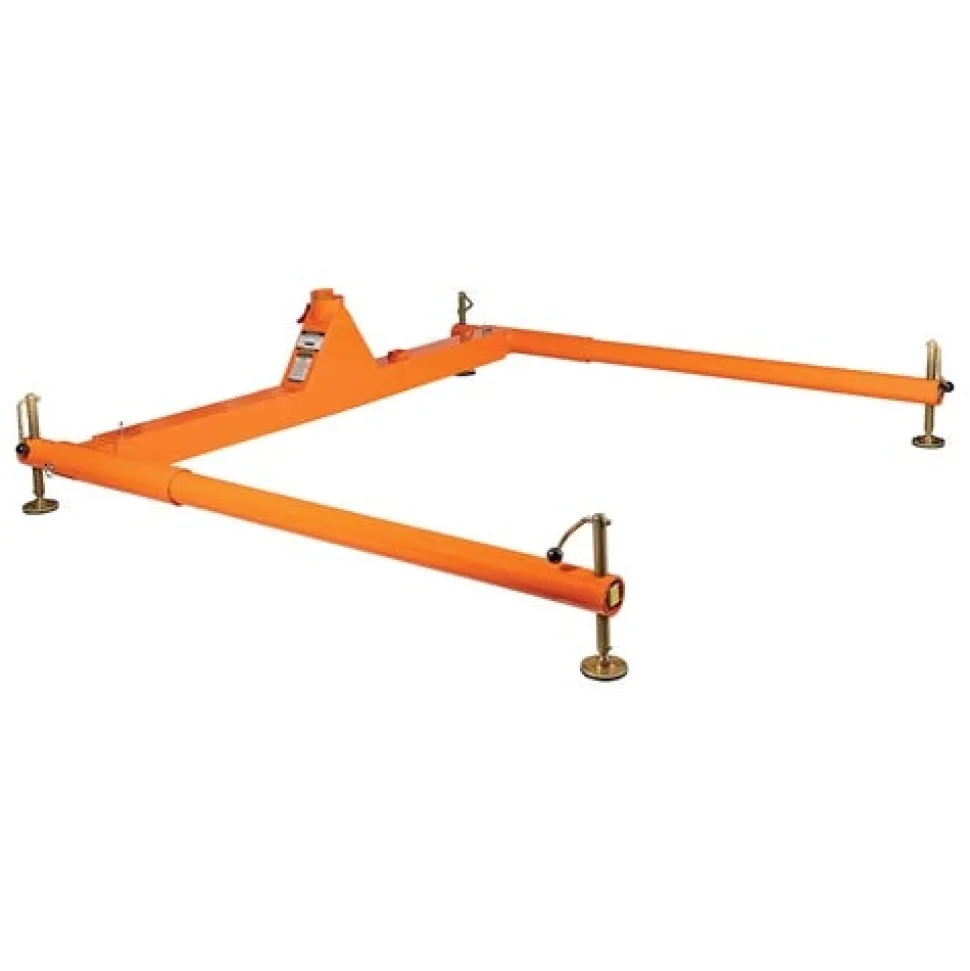

The 3pc Portable Davit Base is designed to work with a variety of mast and davit arm configurationsand is adjustable to fit a wide range of confined space access points. At only 100 lbs.; it’s portabilityand set-up is accommodating when adapting to varied entry access point locations.

FEATURES:

• For use with Offset Davit Arms and Lower Mast Extensions.
• Portable Davit Base width adjusts from 73 to 100″ with 4 preset adjustment positions.
• Includes integral bullseye level and threaded adjustable leveling feet.
• No tools required for set-up.
• OSHA 1926.502 when used with Davit Bases and Mast Extension.

COMPATIBLE FALLTECH DAVIT COMPONENTS:

• Offset Davit Arm; 12″ to 29″ (6500128).
• Offset Davit Arm; 24″ to 44″ (6500244).
• 21″ Lower Mast Extension (6500321).
• 33″ Lower Mast Extension (6500433).
• 45″ Lower Mast Extension (6500545).
• 57″ Lower Mast Extension (6500657).

SPECIFICATIONS:

Materials
3pc Portable Base	Powder Coated 6061 Aluminum and Zinc Plated Steel
Minimum Strength Ratings by Use
Moment Rated	6;750 ft-lbs. Minimum
Rescue Configuration	5;000 lbs. Minimum
Entry/Egress Operation	1;800 lbs. Minimum
Number of Users and Weight Capacities
Rescue Configuration	2 Users Max. 310 lbs. each
Entry/Egress Operation	1 User Max 310 lbs.

“
