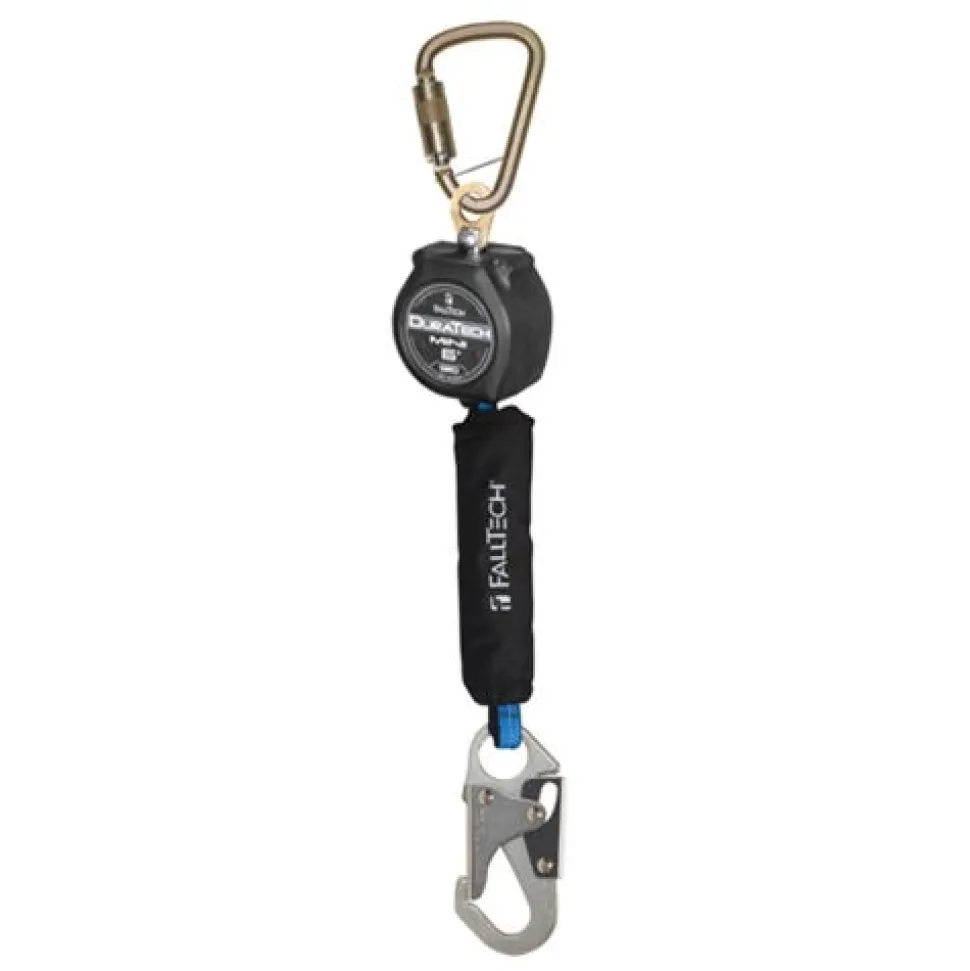

FallTech DuraTech 6′ Mini Web Self-Retracting Device SRD 72706SB1

FallTech

DuraTech 6′ Mini Web Self-Retracting Device 72706SB1

FEATURES:

• 6′ Mini SRD Single-LegSteel Carabiner and Steel Snap Hook
• Compact and impact resistant nylon housing
• Integral shock absorber provides visual fall event indication
• Steel Snap Hook on leg
• Integral Swivel eye – Reduces twisting
• Steel Carabiner w/Captive Pinhousing end

Material Specifications

• Webbing: 100% Dyneema
• Energy Absorber Polyesther
• Swivel Eye: Alloy Steel; 5/8 hole diameter
• Spring: Rolled Carbon Steel
• SRD Housing: Nylon 6/6
• Main Shaft: Alloy steel
• Pawls: Stainless steel
• Connectors: Alloy Steel

Performance Specifications

• Tensile Strength: Min. 3;000 lbs tensile strength
• Max. Capacity: 310 lbs.
• Max. Arrest Distance: 54″
• Average Arrest Force: Less than 900 lbs.
• Max. Arrest Force: 1;800 lbs
• Class of SRD: Class B
• Connectors: 3;600lb min. gate strength

Relevant Standards

• OSHA: CFR1926.502; CFR1910.66
• ANSI: ANSI Z359.14-2014

“
