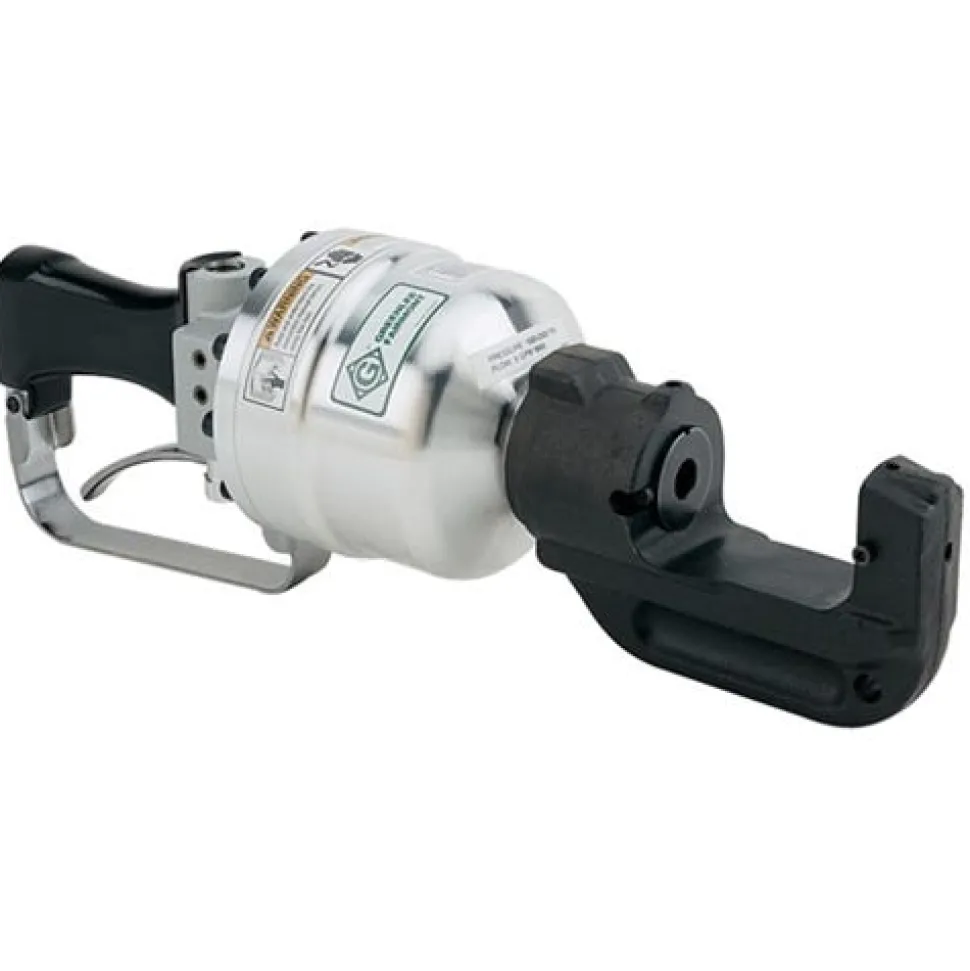

Greenlee 12 Ton Hydraulic Crimping Tool Kearney LPK1240K

Original price was: $3,374.00.Current price is: $130.89.

Additional Details

Greenlee
12 Ton Crimping Tool Kearney LPK1240K
No high pressure intensifier required
Crimps up to 750 MCM copper and aluminum
Relief valve signals operator when crimp is complete
Compatible with dies for:
Burndy Y35
Alcoa 12A; 12AC; 12HA; 12HAC
Anderson HC-12; HC-12H
Thomas & Betts 12-ton
Head rotates for easy tool positioning
Powered in both the advance and retract directions to prevent hang-ups
Relief valve assures 12-ton (10.9 t) crimp with 1;500 -2;500 PSI (103 – 170 bar) system
Accessory : 54923 HTMA Male Coupler; 54925 HTMA Female Coupler; 35887 Crimping Tool Load Cell – 12 Ton
Crimping Force : 24000.000 LB (106.800 KN) At 1500 PSI
Flow Rate : 3 – 9 GPM (11 – 34 LPM)
Jaw Opening : 1.650 IN (42.000 MM)
Length : 20.300 IN (515.600 MM)
Operating Pressure : 1500 – 2500 PSI (103 – 172 BAR)
Pressure Port : 3/4 – 16 SAE O-Ring
Return Port : 3/4 – 16 SAE O-Ring
System : Open and Closed Center Hydraulic System
Weight : 19.700 LB (8.900 KG)
Width : 5.500 IN (139.700 MM)

Specifications

More Information
OPT SKU	GRLPK1240K
MPN	LPK1240K
UPC/GTIN	783310493501
Product Type	Cable & Wire Crimpers / Termination
Google Category	Hardware > Tools > Wire & Cable Hand Tools
Power Method	Hydraulic
Shipping Weight	25.00
