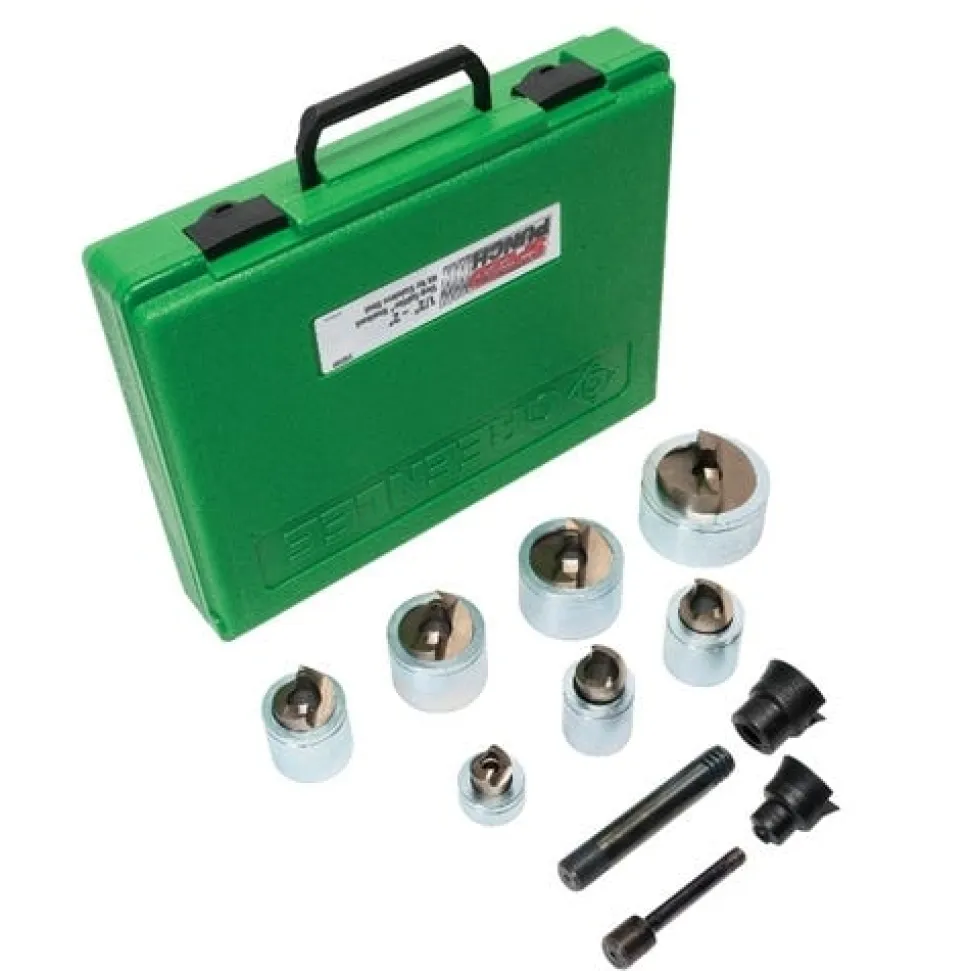

Greenlee 3/4″ – 2″ Knockout Speed Punch Kit Stainless 7307SP

Name: Greenlee 3/4" - 2" Knockout Speed Punch Kit Stainless 7307SP
Brand: Greenlee
SKU: SKUckp5HDLjKZ
Availability: InStock

Original price was: $2,019.00.Current price is: $132.89.

SKU: SKUckp5HDLjKZ Categories: Knockout Tools, Power Tools Tag: Greenlee Brand: Greenlee

Additional Details

Greenlee
Speed Punch Kit 3/4 – 2″ Stainless 7307SP
Save time and money with every punch
No thread design eliminates cross threading
For stainless steel; up to 10 gauge; aluminum; fiberglass and plastic
Use with hydraulic and battery powered drivers
Must be used with other speed punch system components
Included in kit; (1) 3/4-Inch Punch and Die; (1) 1-Inch Punch and Die; (1) 1-1/4-Inch Punch and Die; (1) 1-1/2-Inch Punch and Die; (1) 2-Inch Punch and Die; (1) speed lock; (1) Standard Draw Stud; (1) 7/8-Inch Step Bit; (1) 3/4″ draw stud and speed lock; (1) Plastic Storage Case

“

Manufacturer Specifications

Capacity Mild Steel	Max: 10 gauge (3.0 mm).
Capacity Stainless Steel	Max: 10 gauge (3.0 mm).
Application	For punching conduit size holes in stainless steel, mild steel, aluminum, fiberglass, and plastic.
Package	Plastic Storage Case
Draw Studs	Alt. Draw Stud (Long): 7212SP22 (3/8” x 4.7”) and 7212SP21 (3/4” x 5.8”) – For use with 746 Hydraulic Ram.
Diameter	Actual hole sizes: 0.885” (22.5 MM) – 2.416” (61.4 MM)
Draw Stud	Std. Draw Studs: 7212SP24 (3/8” X 3.8”) AND 7212SP23 (3/4” X 5.0”).
Minimum Pilot Hole	3/8” Draw Studs: 1/2” (12.7 MM) PILOT HOLE. 3/4” DRAW STUDS: 7/8”(22.2 MM) PILOT HOLE.
Sub Brand	SPEED PUNCH
Driver	Use with Greenlee Punch Drivers: 746 Hydraulic Ram & 767 Pump (or LS50L – Battery-Powered Driver up to max. 12 ga. stainless steel).
Replacement Part	3/8” Draw Stud Std. (7212SP24)
Type	Knockout Punches
Weight	13.25 lbs. (6.02 kg)
Material	Carbon-Alloy Steel, Zinc Plated
Includes	One each size (Punch & Die): 1/2”, 3/4”, 1”, 1-1/4”, 1-1/2”, and 2” U.S. conduit size, One 1-7/32” Dia. Punch & Die, One 3/8” Speed Lock, One 3/4” Speed Lock, One 3/8” x 3.8” Std. Draw Stud, One 3/4” x 4.8” Std. Draw Stud, One 7/8” Step Bit and One Plastic Storage Case.
