Sale!

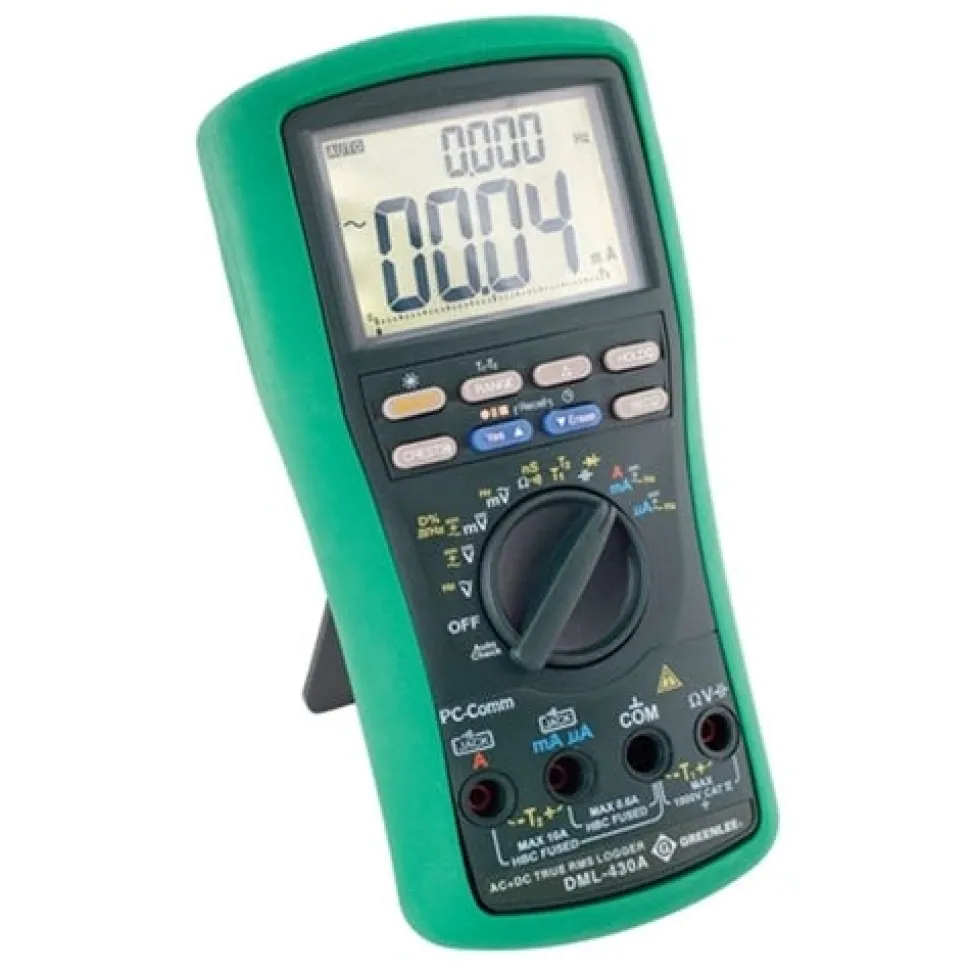

Greenlee ESM 43K Digital Logging Meter DML-430A

Original price was: $351.00.Current price is: $122.89.

SKU: SKU8hRgaDAZqH Categories: Power Tools, Voltage Testing & Measuring Tag: Greenlee Brand: Greenlee

Description
Reviews (0)

Additional Details

Greenlee
ESM Digital Logging Meter DML-430A
Datalogging Capability – Stores 87;000 Single-Channel Or 43;000 Dual-Channel Measurements
Use Optional USB InterfaceDMSC-9U To Transfer Data To PC Or For Direct-To-PC logging
AC+DC True RMS Gives Accurate Readings On Complex Waveforms
Low Impedance AutoCheck Mode – Automatically Selects AC or DC volts; Resistance Or Continuity
Low impedance masks ghost voltage pickup
Backlit LCD Displays 2 Readings With 10;000 Count Resolution
BeepJack Warns When Test Leads Are Incorrectly Inserted In Current Measurement Terminals
Measures Voltage; Current;Resistance; Conductance; Frequency And Capacitance
Checks Continuity And Tests Diodes
Two Temperature Measurements Using Type K Thermocouples
Accessories Included: (1)9V Battery; Bead Temperature Probe (400F / 204C Max.); Test leads; Protective Boot; Carrying Case
Lifetime Limited Warranty
Amperage Measurement : 600; 6000 MICAMP; 60; 600 MILAMP; 6; 10 AMP
Battery : (1) 9 V
Capacitance : 60; 600 NFDN 6; 60; 600 MFD; 6; 25 MILFD
Conductance : 99.99 nS
Display : Backlit LCD Displays 2 Readings With 10;000 Count Resolution
Frequency Measurement : 15 HZ – 50 KHZ Sine Wave; 5 HZ – 1 MHZ Logic Level Square Wave
Includes : (1) 9V Battery; Bead Temperature Probe (400 DEG F/204 DEG CMax); Test leads; Protective Boot; Carrying Case
Measurement Category : CAT IV; 1000 V
Replacement Part : TC-20 Carrying Case; TSG-3 Sure-Grip Test Leads; TPB Bead Temperature Probe
Resistance Measurement : 600 OHM; 6; 60; 600 KOHM; 6; 60 MOHM
Standard : CAT IV; C/UL US Listed; TRUE RMS; CE Listed
Temperature Rating : K Type; -58 To 1832 DEG F (-50 To 1000 DEG C)
Type : Digital
Voltage Measurement : 60.00; 600.0 MILV; 9.999; 99.99; 999.9 V

Manufacturer Specifications

Replacement Part	TC-20 Carrying Case, TSG-3 Sure-Grip Test Leads, TPB Bead Temperature Probe
Type	Digital
Conductance	99.99 nS
Display	Backlit LCD Displays 2 Readings With 10,000 Count Resolution
Standard	CAT IV, C/UL US Listed, TRUE RMS, CE Listed
Amperage Measurement	600, 6000 MICAMP, 60, 600 MILAMP, 6, 10 AMP
Voltage Measurement	60.00, 600.0 MILV, 9.999, 99.99, 999.9 V
Frequency Measurement	15 HZ – 50 KHZ Sine Wave, 5 HZ – 1 MHZ Logic Level Square Wave
Measurement Category	CAT IV, 1000 V
Battery	(1) 9 V
Capacitance	60, 600 NFDN 6, 60, 600 MFD, 6, 25 MILFD
Resistance Measurement	600 OHM, 6, 60, 600 KOHM, 6, 60 MOHM
Includes	(1) 9V Battery, Bead Temperature Probe (400 DEG F/204 DEG CMax), Test leads, Protective Boot, Carrying Case
Temperature Rating	K Type, -58 To 1832Â°F (-50 To 1000Â°C)

Specifications

More Information
OPT SKU	GRDML-430A
MPN	DML-430A
UPC/GTIN	783310087465
Product Type	Voltage Testing & Measuring
Google Category	Hardware > Tools > Measuring Tools & Sensors > Electrical Testing Tools
Power Method	Cordless
Shipping Weight	3.00
