Greenlee ESM Series Digital Multimeter – Calibrated DM-210A-C

Original price was: $276.00.Current price is: $132.99.

SKU: SKUhgndVHAC76 Categories: Power Tools, Voltage Testing & Measuring Tag: Greenlee Brand: Greenlee

Description
Reviews (0)

Additional Details

Greenlee

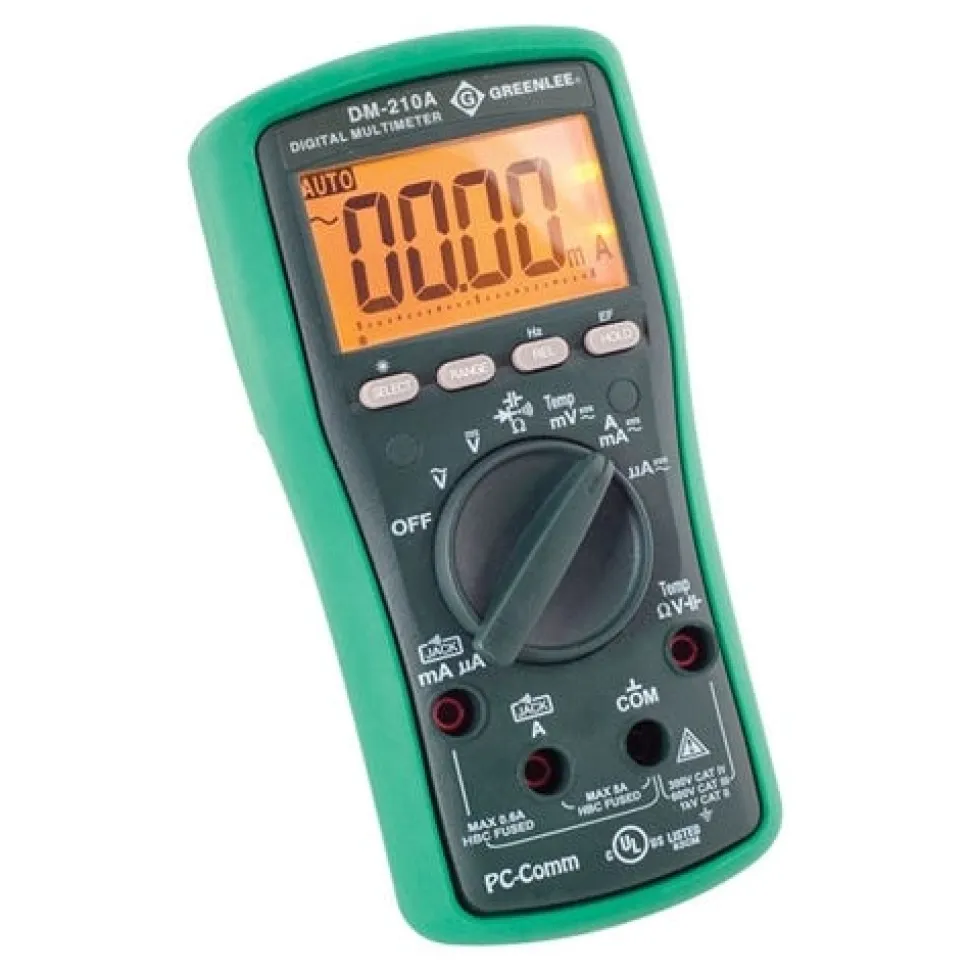

ESM Series Digital Multimeter – Calibrated DM-210A-C
Measures voltage; current; resistance and frequency
Tests continuity and diodes
Backlit LCD with 6;000 count display
Two voltage detection modes – non-contact or using a single test lead
BeepJack warns when test leads are incorrectly inserted in current measurement terminals
Automatic and manual range selection
Relative offset mode to see changes in measurements
Data hold
Use optional USB / RS-232 interface DMSC-2U for direct-to-PC logging
Lifetime Limited Warranty
Accessories included: (2)1.5V AAA batteries; bead temperature probe (DM-210A; DM-510A only; 400F/204C max); test leads; protective boot
Measures capacitance
Measures temperature using a type K thermocouple
Includes Certificate of Calibration
Amperage Measurement : 600; 6000A; 60; 600 mA; 6; 8A
Battery : (2) 1.5 V AAA
Capacitance : 60; 600 nF; 6; 60; 600; 3000F
Display : Backlit LCD With 6;000 Count
Frequency Measurement : 10Hz – 50kHz Sine Wave; 5Hz – 999.9kHz Logic Level Square Wave
Includes : (2) 1.5V AAA Batteries; Bead Temperature Probe (DM-210A; DM-510A Only; 400 DEG F/204 DEG C max); Test leads; ProtectiveBoot
Measurement Category : CAT IV 300 V; CAT III 600 V; CAT II 1000 V
Replacement Part : TSG-3 Sure-Grip Test Leads
Resistance Measurement : 600 O; 6; 60; 600 kO; 6; 60 MO
Standard : CAT IV; CAT III; CAT II; C/ULUS Listed; CE Listed
Sub Brand : ESM
Temperature Rating : K Type; -58 To 1832F (-50 To 1000C)
Type : Digital
Voltage Measurement : 60; 600 mV; 6; 60; 600; 1000V

Manufacturer Specifications

Display	Backlit LCD With 6,000 Count
Resistance Measurement	600 Î©; 6, 60, 600 kÎ©; 6, 60 MÎ©
Amperage Measurement	600, 6000Î¼A; 60, 600 mA; 6, 8A
Temperature Rating	K Type, -58 To 1832Â°F (-50 To 1000Â°C)
Frequency Measurement	10Hz – 50kHz Sine Wave, 5Hz – 999.9kHz Logic Level Square Wave
Measurement Category	CAT IV 300 V, CAT III 600 V, CAT II 1000 V
Sub Brand	ESM
Voltage Measurement	60, 600 mV; 6, 60, 600, 1000V
Battery	(2) 1.5 V AAA
Country of Origin	Taiwan
Standard	CAT IV, CAT III, CAT II, C/ULUS Listed, CE Listed
Capacitance	60, 600 nF; 6, 60, 600, 3000Î¼F
Included Components	(2) 1.5V AAA Batteries, Bead Temperature Probe (DM-210A, DM-510A Only, 400 DEG F/204 DEG C max), Test leads, ProtectiveBoot
Replacement Part	TSG-3 Sure-Grip Test Leads
Type	Digital
Includes	(2) 1.5V AAA Batteries, Bead Temperature Probe (DM-210A, DM-510A Only, 400 DEG F/204 DEG C max), Test leads, ProtectiveBoot

Specifications

More Information
OPT SKU	GRDM-210A-C
MPN	DM-210A-C
UPC/GTIN	783310357575
Product Type	Voltage Testing & Measuring
Google Category	Hardware > Tools > Measuring Tools & Sensors > Electrical Testing Tools
Power Method	Cordless
Shipping Weight	2.00
