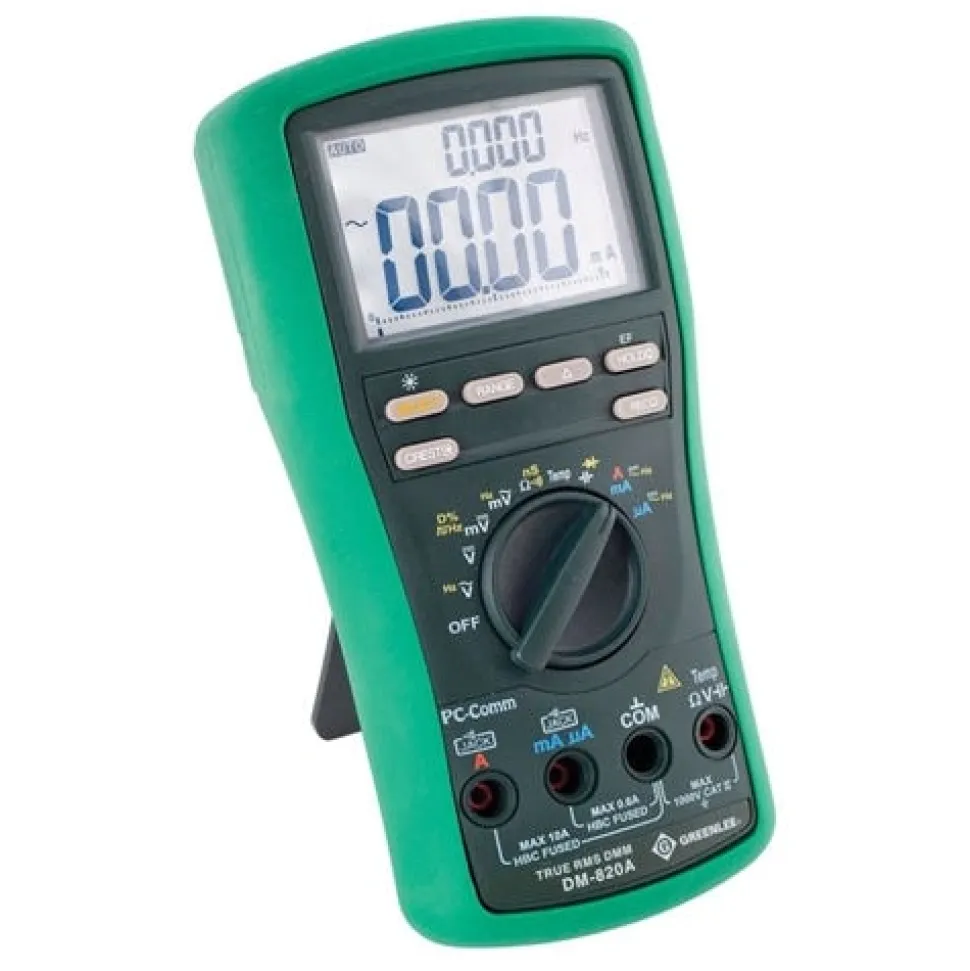

Greenlee ESM Series Digital Multimeter – Calibrated DM-810A-C

Name: Greenlee ESM Series Digital Multimeter - Calibrated DM-810A-C
Brand: Greenlee
SKU: SKUtSbtKAtTo5
Availability: InStock

$124.89

SKU: SKUtSbtKAtTo5 Categories: Power Tools, Voltage Testing & Measuring Tag: Greenlee Brand: Greenlee

Additional Details

Greenlee
ESM Series Digital Multimeter – Calibrated DM-810A-C
True RMS for no-compromise accuracy
Measures voltage; current; resistance; capacitance and frequency
Tests continuity and diodes
Backlit LCD With Dual 10;000 Count Displays
BeepJack warns when test leads are incorrectly inserted in current measurement terminals
Automatic and manual range selection
Relative offset mode to see changes in measurements
Data hold
Use optional USB interface DMSC-9U for direct-to-PC logging
Lifetime Limited Warranty
Accessories included: (1)9V battery; bead temperature probe (DM-820A; DM-830A only; 400F/204C max); test leads; protective boot; carrying case
Includes Certificate of Calibration
Amperage Measurement : 600; 6000A; 60; 600mA; 6; 10A
Battery : (1) 9 V
Capacitance : 60; 600nF; 6; 60; 600F; 6; 25 mF
Conductance : 99.99 nS
Display : Backlit LCD With Dual 10;000 Count
Frequency Measurement : 15Hz- 50kHz Sine Wave; 5Hz – 1MHz Logic Level Square Wave
Includes : (1) 9V Battery; Bead Temperature Probe (DM-820A; DM-830A Only; 400F/204C Max); Test Leads; Protective Boot; Carrying Case
Measurement Category : CAT IV; 1000 V
Replacement Part : TC-20 Carrying Case; TSG-3 Sure-Grip Test Leads; TPB Bead Temperature Probe (Included With DM-820A; DM-830A)
Resistance Measurement : 600O; 6; 60; 600 kO; 6; 60 MO
Standard : CAT IV; C/UL US Listed; TRUE RMS; CE Listed
Temperature Rating : K Type; -58 To 1832F (-50 To 1000C)
Type : Digital
Voltage Measurement : 60; 600 mV; 9.999; 99.99; 999.9 V

Manufacturer Specifications

Amperage Measurement	600, 6000Î¼A; 60, 600mA; 6, 10A
Included Components	(1) 9V Battery, Bead Temperature Probe (DM-820A, DM-830A Only, 400Â°F/204Â°C Max), Test Leads, Protective Boot, Carrying Case
Capacitance	60, 600nF; 6, 60, 600Î¼F; 6, 25 mF
Includes	(1) 9V Battery, Bead Temperature Probe (DM-820A, DM-830A Only, 400Â°F/204Â°C Max), Test Leads, Protective Boot, Carrying Case
Voltage Measurement	60, 600 mV; 9.999, 99.99, 999.9 V
Display	Backlit LCD With Dual 10,000 Count
Type	Digital
Measurement Category	CAT IV, 1000 V
Resistance Measurement	600Î©; 6, 60, 600 kÎ©; 6, 60 MÎ©
Battery	(1) 9 V
Standard	CAT IV, C/UL US Listed, TRUE RMS, CE Listed
Temperature Rating	K Type, -58 To 1832Â°F (-50 To 1000Â°C)
Country of Origin	Taiwan
Conductance	99.99 nS
Frequency Measurement	15Hz- 50kHz Sine Wave, 5Hz – 1MHz Logic Level Square Wave
Replacement Part	TC-20 Carrying Case, TSG-3 Sure-Grip Test Leads, TPB Bead Temperature Probe (Included With DM-820A, DM-830A)

Specifications

More Information
OPT SKU	GRDM-810A-C
MPN	DM-810A-C
UPC/GTIN	783310357599
Product Type	Voltage Testing & Measuring
Google Category	Hardware > Tools > Measuring Tools & Sensors > Electrical Testing Tools
Power Method	Cordless
Shipping Weight	3.00
