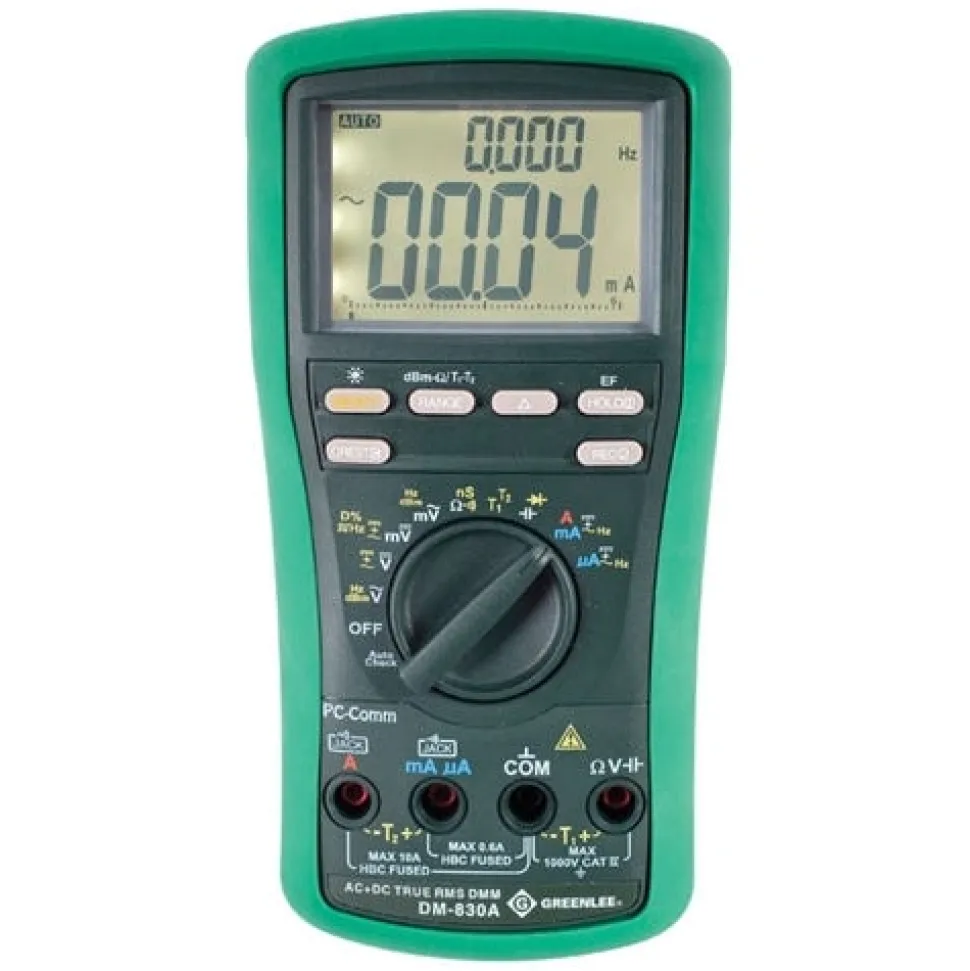

Greenlee ESM Series Digital Multimeter DM-830A

$140.89

SKU: SKUDfHw8R0IyE Categories: Power Tools, Voltage Testing & Measuring Tag: Greenlee Brand: Greenlee

Description
Reviews (0)

Additional Details

Greenlee
ESM Series Digital Multimeter DM-830A
True RMS for no-compromise accuracy
Measures voltage; current; resistance; capacitance and frequency
Tests continuity and diodes
Backlit LCD With Dual 10;000 Count Displays
BeepJack warns when test leads are incorrectly inserted in current measurement terminals
Automatic and manual range selection
Relative offset mode to see changes in measurements
Data hold
Use optional USB interface DMSC-9U for direct-to-PC logging
Lifetime Limited Warranty
AC+DC True RMS gives accurate readings on complex waveforms
Low impedance AutoCheck mode – automatically selects AC or DC volts; resistance or continuity. Low impedance masks ghost voltage pickup
dBm function with 20 selectable reference impedance values
Crest capture (peak hold)plus recording of max; min; max-min and average
Two voltage detection modes – non-contact or using a single test lead
Two temperature measurements using type K thermocouples
Conductance measurement
Accessories included: (1)9V battery; bead temperature probe (DM-820A; DM-830A only; 400F/204C max); test leads; protective boot; carrying case
Amperage Measurement : 600; 6000A; 60; 600mA; 6; 10A
Battery : (1) 9 V
Capacitance : 60; 600nF; 6; 60; 600F; 6; 25 mF
Conductance : 99.99 nS
Display : Backlit LCD With Dual 10;000 Count
Frequency Measurement : 15Hz- 50kHz Sine Wave; 5Hz – 1MHz Logic Level Square Wave
Includes : (1) 9V Battery; Bead Temperature Probe (DM-820A; DM-830A Only; 400 DEG F/204 DEG C Max); Test Leads; Protective Boot; Carrying Case
Measurement Category : CAT IV; 1000 V
Replacement Part : TC-20 Carrying Case; TSG-3 Sure-Grip Test Leads; TPB Bead Temperature Probe (Included With DM-820A; DM-830A)
Resistance Measurement : 600O; 6; 60; 600 kO; 6; 60 MO
Standard : CAT IV; C/UL US Listed; TRUE RMS; CE Listed
Temperature Rating : K Type; -58 To 1832F (-50 To 1000C)
Type : Digital
Voltage Measurement : 60; 600 mV; 9.999; 99.99; 999.9 V

Manufacturer Specifications

Resistance Measurement	600Î©; 6, 60, 600 kÎ©; 6, 60 MÎ©
Type	Digital
Display	Backlit LCD With Dual 10,000 Count
Battery	(1) 9 V
Country of Origin	Taiwan
Included Components	(1) 9V Battery, Bead Temperature Probe (DM-820A, DM-830A Only, 400 DEG F/204 DEG C Max), Test Leads, Protective Boot, Carrying Case
Voltage Measurement	60, 600 mV; 9.999, 99.99, 999.9 V
Replacement Part	TC-20 Carrying Case, TSG-3 Sure-Grip Test Leads, TPB Bead Temperature Probe (Included With DM-820A, DM-830A)
Conductance	99.99 nS
Measurement Category	CAT IV, 1000 V
Amperage Measurement	600, 6000Î¼A; 60, 600mA; 6, 10A
Capacitance	60, 600nF; 6, 60, 600Î¼F; 6, 25 mF
Standard	CAT IV, C/UL US Listed, TRUE RMS, CE Listed
Frequency Measurement	15Hz- 50kHz Sine Wave, 5Hz – 1MHz Logic Level Square Wave
Includes	(1) 9V Battery, Bead Temperature Probe (DM-820A, DM-830A Only, 400 DEG F/204 DEG C Max), Test Leads, Protective Boot, Carrying Case
Temperature Rating	K Type, -58 To 1832Â°F (-50 To 1000Â°C)

Specifications

More Information
OPT SKU	GRDM-830A
MPN	DM-830A
UPC/GTIN	783310087458
Product Type	Voltage Testing & Measuring
Google Category	Hardware > Tools > Measuring Tools & Sensors > Electrical Testing Tools
Power Method	Cordless
Shipping Weight	3.00
