Greenlee ESM Series Professional Plant Digital Multimeter DM-510A

$136.89

SKU: SKU7zvjGHfsJA Categories: Power Tools, Voltage Testing & Measuring Tag: Greenlee Brand: Greenlee

Description
Reviews (0)

Additional Details

Greenlee

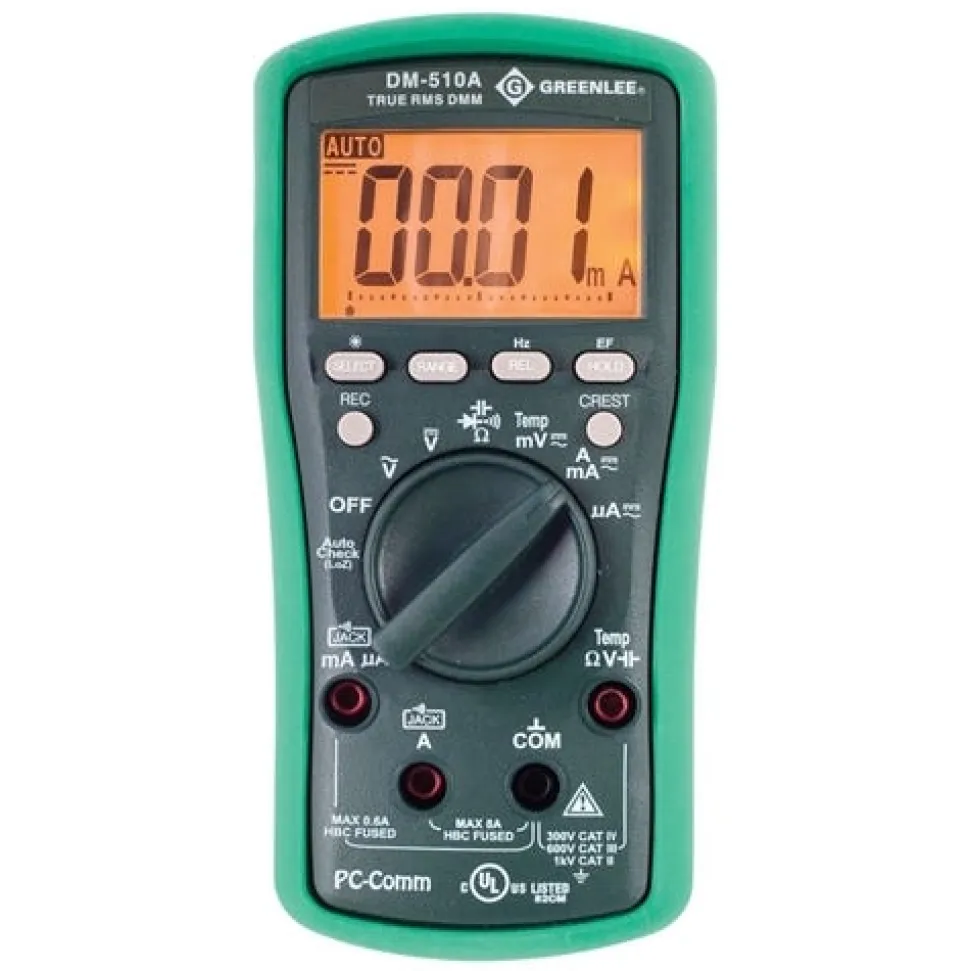

ESM Series Professional Plant Digital Multimeter DM-510A
Measures voltage; current; resistance and frequency
Tests continuity and diodes
Backlit LCD with 6;000 count display
Two voltage detection modes – non-contact or using a single test lead
BeepJack warns when test leads are incorrectly inserted in current measurement terminals
Automatic and manual rangeselection
Relative offset mode to see changes in measurements
Data hold
Use optional USB / RS-232 interface DMSC-2U for direct-to-PC logging
Lifetime Limited Warranty
Accessories included: (2)1.5V AAA batteries; bead temperature probe (DM-210A; DM-510A only; 400F/204C max); test leads; protective boot
True RMS for no-compromise accuracy
Crest capture (peak hold) plus recording of max; min; max-min and average
Low impedance AutoCheck mode – automatically selects AC or DC volts; resistance or continuity; Low impedance masks ghost voltage pickup
Measures capacitance
Measures temperature using a type K thermocouple
Amperage Measurement : 600; 6000A; 60; 600mA; 6; 8A
Battery : (2) 1.5 V AAA
Capacitance : 60; 600 nF; 6; 60; 600; 3000F
Display : Backlit LCD With 6;000 Count
Frequency Measurement : 10Hz – 50kHz Sine Wave; 5Hz – 999.9kHz Logic Level Square Wave
Includes : (2) 1.5V AAA Batteries; Bead Temperature Probe (DM-210A; DM-510A Only; 400F/204C max); Test leads; ProtectiveBoot
Measurement Category : CAT IV 300 V; CAT III 600 V; CAT II 1000 V
Replacement Part : TSG-3 Sure-Grip Test Leads
Resistance Measurement : 600O; 6; 60; 600 kO; 6; 60 MO
Standard : CAT IV; CAT II; C/UL US Listed; CAT III; CE Listed
Sub Brand : ESM
Temperature Rating : K Type; -58 To 1832F (-50 To 1000C)
Type : Professional Plant Digital
Voltage Measurement : 60; 600 mV; 6; 60; 600; 1000V

Manufacturer Specifications

Replacement Part	TSG-3 Sure-Grip Test Leads
Temperature Rating	K Type, -58 To 1832Â°F (-50 To 1000Â°C)
Display	Backlit LCD With 6,000 Count
Resistance Measurement	600Î©; 6, 60, 600 kÎ©; 6, 60 MÎ©
Voltage Measurement	60, 600 mV, 6, 60, 600, 1000V
Included Components	(2) 1.5V AAA Batteries, Bead Temperature Probe (DM-210A, DM-510A Only, 400Â°F/204Â°C max), Test leads, ProtectiveBoot
Frequency Measurement	10Hz – 50kHz Sine Wave, 5Hz – 999.9kHz Logic Level Square Wave
Type	Professional Plant Digital
Amperage Measurement	600, 6000Î¼A; 60, 600mA; 6, 8A
Measurement Category	CAT IV 300 V, CAT III 600 V, CAT II 1000 V
Capacitance	60, 600 nF; 6, 60, 600, 3000Î¼F
Battery	(2) 1.5 V AAA
Sub Brand	ESM
Country of Origin	Taiwan
Includes	(2) 1.5V AAA Batteries, Bead Temperature Probe (DM-210A, DM-510A Only, 400Â°F/204Â°C max), Test leads, ProtectiveBoot
Standard	CAT IV, CAT II, C/UL US Listed, CAT III, CE Listed

Specifications

More Information
OPT SKU	GRDM-510A
MPN	DM-510A
UPC/GTIN	783310087427
Product Type	Voltage Testing & Measuring
Google Category	Hardware > Tools > Measuring Tools & Sensors > Electrical Testing Tools
Power Method	Cordless
Shipping Weight	2.00
