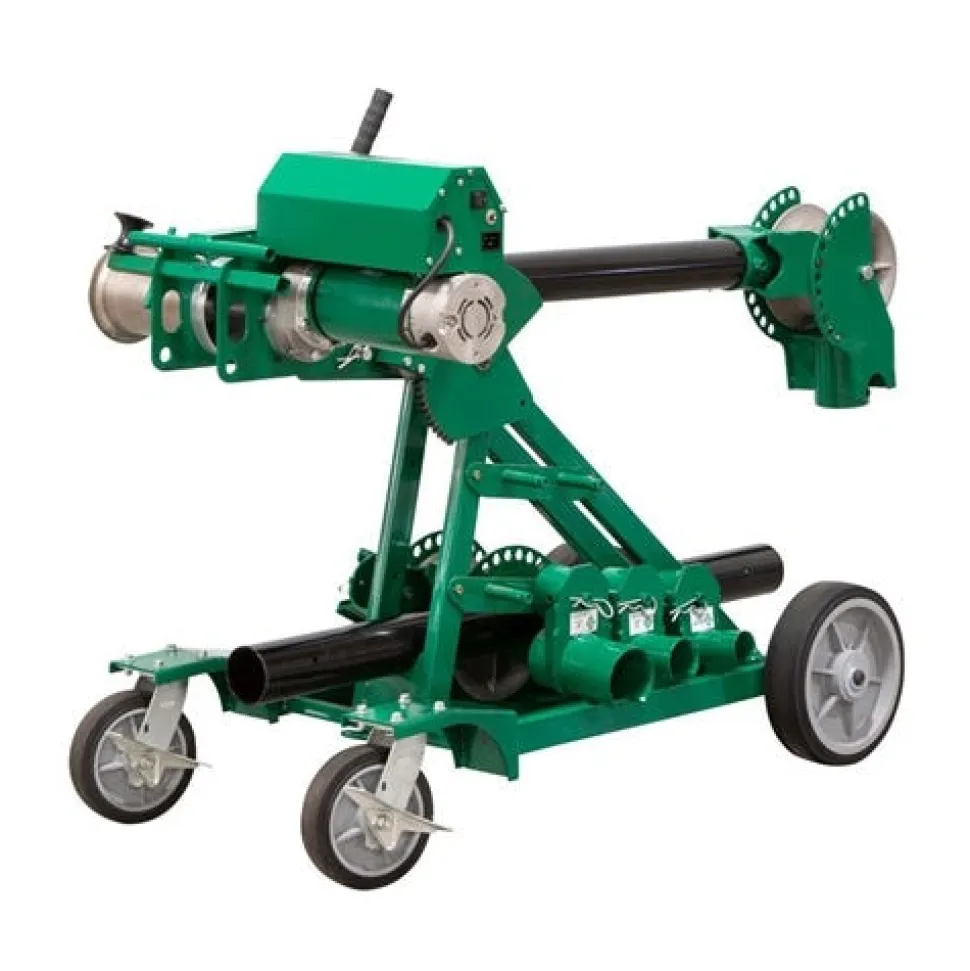

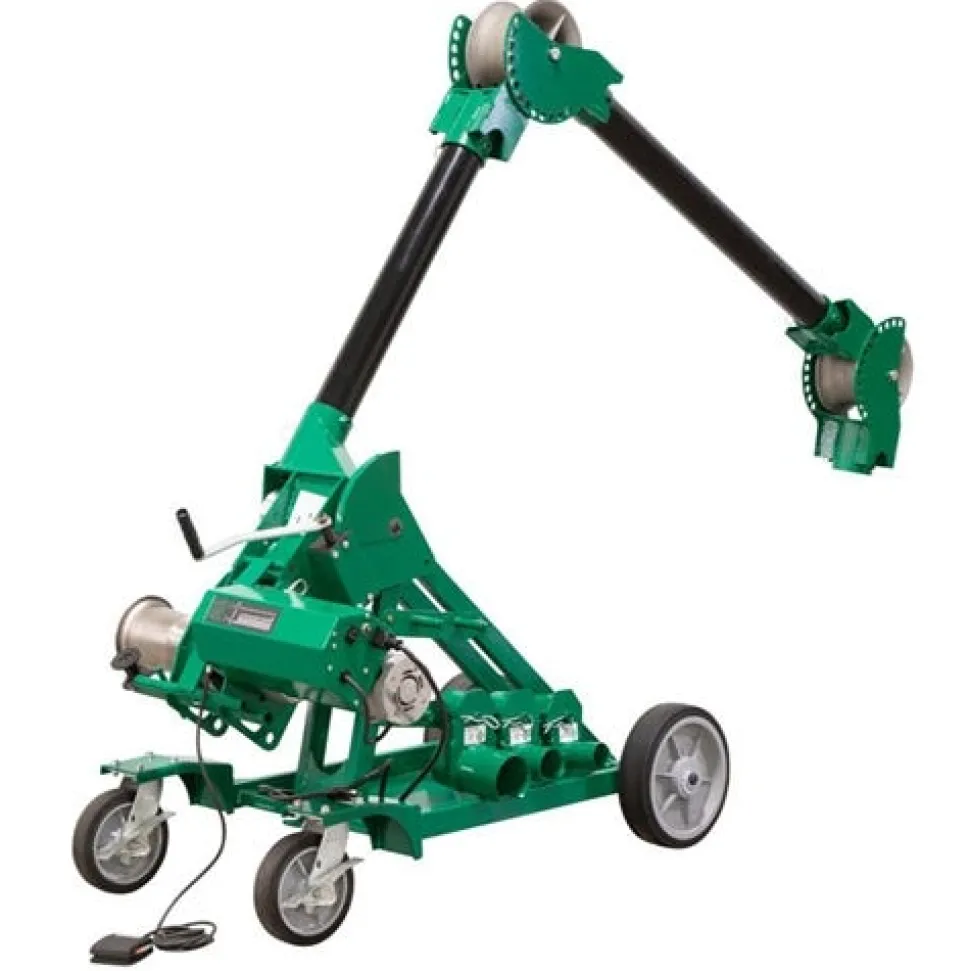

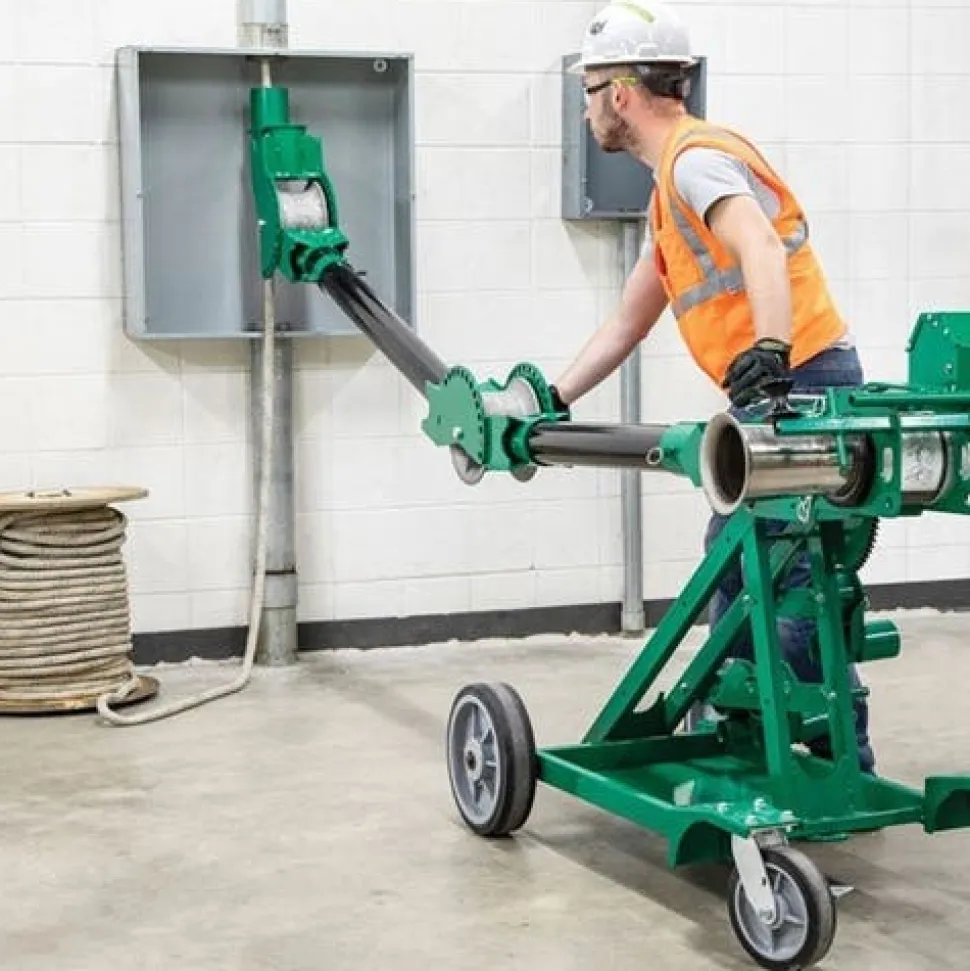

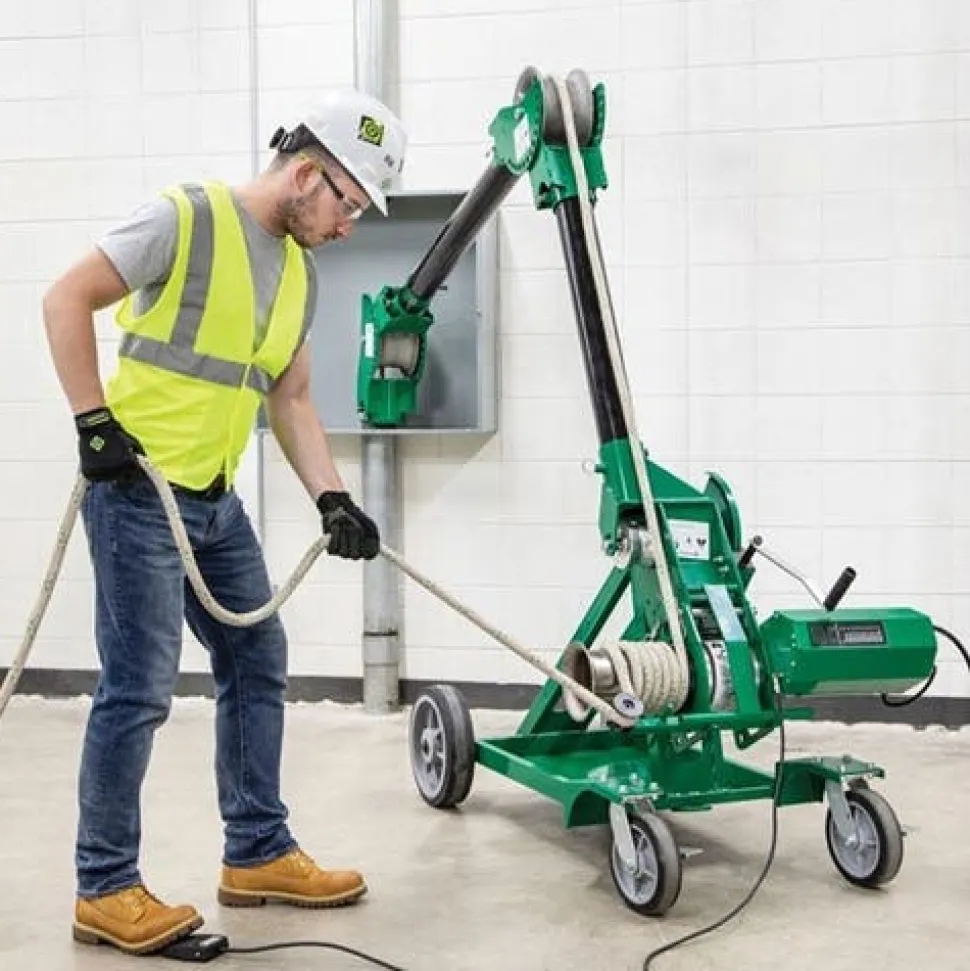

Greenlee G10 Tugger 10,000 lbs Cable Puller w/ Mobile VersiBoom G10-MVB

Greenlee

G10 Tugger 10;000 lb. Puller w/ Mobile VersiBoom G10-MVB

2 Speed G Series Tugger (G10) is a one-stop-shop: The only UL listed 2 speed puller on the market that can shift from high speed/low load pulling to low speed/high load pulling with a simple double tap motion on the foot pedal control switch.

FEATURES:

• Use for cable pulls requiring high as well as low pulling loads.
• The no-load high speed is 22.4 FT/MINT and is best suited for loads up to 4200 LB where the speed will be 16.1 FT/MINT.
• The no-load low speed is 13.5 FT/MINT and can be used on loads up to 8000 LB where the speed will be 9 FT/MINT; or a momentary peak capacity of 10000 LB.
• 2-Speed motor that delivers the fastest pulling time for all pulling needs over the widest (10000 LB) range.
• Strong; rugged motor designed specifically for both big and small cable pulling applications up to 10000 LB.
• Easy control features for increased productivity: On-board force gauge provides visual communication of pulling force and speed changes.
• Quick speed change from high speed to low-speed by simply double tapping foot pedal.
• Removable foot pedal for convenience.
• Sets up in less than 2 minutes and can be used in every pulling situation.
• This combination of speed and versatility can increase your productivity; equaling more pulls in a day and delivering greater benefit to your bottom line.

SPECIFICATIONS:

Cable Type	Electrical Cable
Capacity	The no-load low speed is 13.5 FT/MINT and can be used on loads up to 8000 LB where the speed will be 9 FT/MINT; or a momentary peak capacity of 10000LB
Voltage Rating	115 Volts
Amperage Rating	20 Amp
Application	Electrical Cable Pull
Load	Continuous Operation: 0 – 8000.000 LB (0 – 35.600 KN) / Momentary: 8000.000 – 10000.000 LB (35.600 – 44.500 KN)
Mounting	Mobile VERSIBoom
Prime Moving Specification	Required Rope: 7/8 diameter; double-braided; polyester composite. Average Breaking Strength: 143 kN (32;000 lb) minimum
Motor	120 VAC; 60 Hz; Single Phase; 20 Amps
Rope Size	7/8” Diameter Double-Braided; Polyester Composite; Rated at 32;000 lb. (143 kN) Recommended Rope – 34137

“
