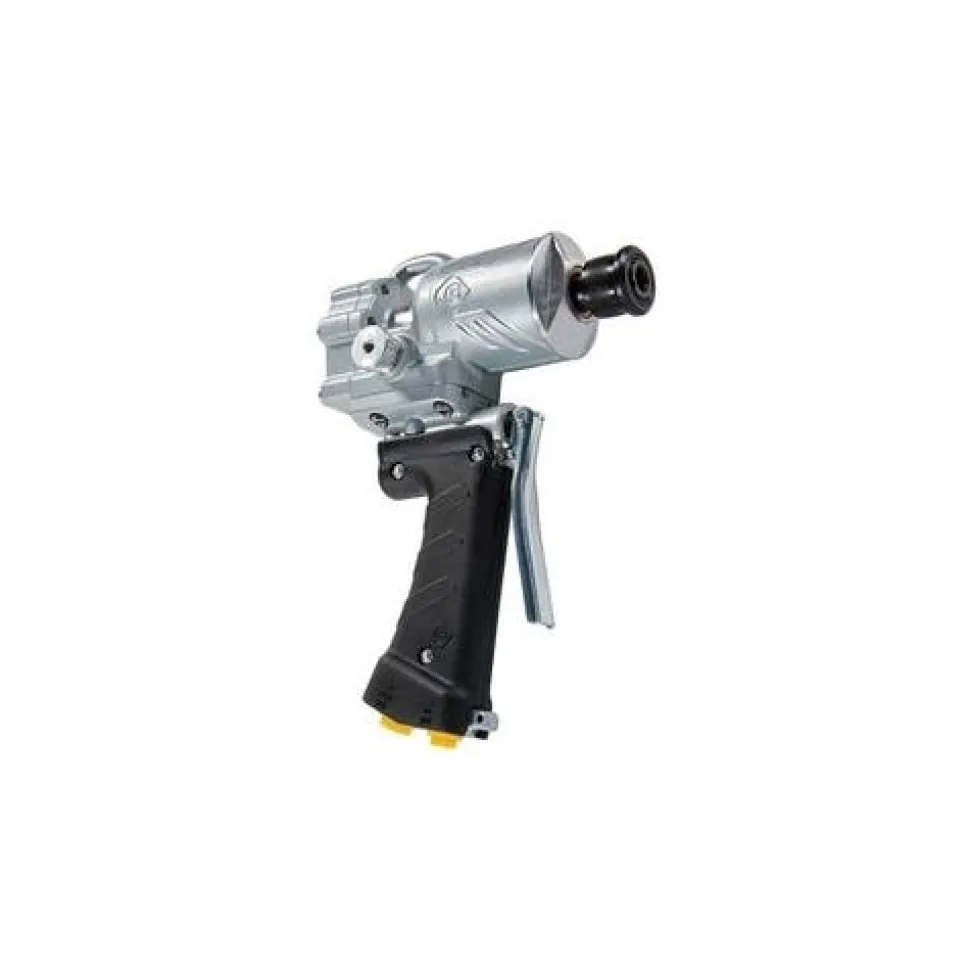

Greenlee Hydraulic 7/16″ Hex Impact Wrench HW1

$130.99

SKU: SKUidganUPaIH Categories: Impact Wrenches, Power Tools Tag: Greenlee Brand: Greenlee

Description
Reviews (0)

Additional Details

Greenlee
Hydraulic Impact Wrench HW1
Impact and temperature resistant replaceable polymer grip designed to dissipate heat from the cast handle
Weight reduction of 14% to previous models
Improved center-of-gravity for superior ergonomics
Increased service life with the addition of back-up rings and larger O-rings
Built-in hydraulic check valve to eliminate damage from an improperly connected tool
Large and strong lifting eye for easy and secure storage
Longer and wider trigger provides improved control with insulated gloves
Fast and easy change between open-center systems and closed-center systems with no disassembly required
Higher breaking torque in reverse to ensure you can remove tighted bolts
Cast motor enclosure that better protects the impact mechanism operation versus competing models with stamped steel enclosure
Accessory : NR1 Nut Runner With Adapter For 5/8; 1/2″; 13/16″ and 1.000″ Square Nuts; NR2 Nut Runner With Adapter For 1.000″; 1-1/8″ And 1-5/16″ Square Nuts; 00376 Trigger Guard Kit For HW1 Or HW1V; 49314 Heavy Duty 7/16″ Hex X 1/2″ Square Drive Shank
Capacity : 7/16 IN Hex
Drive Size : 1/2 IN
Flow Range : 4 – 12 GPM (15 – 46 LPM)
Handle Type : Impact And Temperature Resistant Replaceable Polymer Grip
Height : 11.000 IN
Hydraulic System : Super Spool Selector For Open and Closed-Center Systems
Includes : 7/16 Hex Quick-Change Chuck And 49314 Heavy-Duty Adapter IN
Length : 8.200 IN
Operating Pressure : 1000 – 2500 PSI (69 – 170 BAR)
Optimum Flow Range : 5 – 8 GPM (19 – 30 LPM)
Pressure Port : 9/16 – 18 SAE O-Ring
Replacement : 54923 HTMA Male Coupler: HTMA; 3/4-16 SAE O-Ring Exterior Thread; 54925 HTMA Female Coupler: HTMA; 9/16-18 SAE O-Ring Exterior Thread
Return Port : 3/4 – 16 SAE O-Ring
Torque Rating : 500 FT-LB At 8 GPM (677 N-M At 30 LPM) Maximum; 500 FT-LB At 8 GPM (677 N-M At 30 LPM) Minimum
Type : Hydraulic; High Torque
Weight : 6.500 LB (2.930 KG)
Width : 4.200 IN

Manufacturer Specifications

Type	Hydraulic, High Torque
Capacity	7/16 IN Hex
Country of Origin	United States
Replacement	54923 HTMA Male Coupler – HTMA, 3/4-16 SAE O-Ring Exterior Thread, 54925 HTMA Female Coupler – HTMA, 9/16-18 SAE O-Ring Exterior Thread
REACH Compliant	Yes
Operating Pressure	1000 – 2500 PSI (69 – 170 BAR)
Return Port	3/4 – 16 SAE O-Ring
Height	11.000 IN
Torque Rating	500 FT-LB At 8 GPM (677 N-M At 30 LPM) Maximum, 500 FT-LB At 8 GPM (677 N-M At 30 LPM) Minimum
Flow Range	4 – 12 GPM (15 – 46 LPM)
Handle Type	Impact And Temperature Resistant Replaceable Polymer Grip
Accessory	NR1 Nut Runner With Adapter For 5/8”, 1/2”, 13/16” and 1.000” Square Nuts, NR2 Nut Runner With Adapter For 1.000”, 1-1/8” And 1-5/16” Square Nuts, 00376 Trigger Guard Kit For HW1 Or HW1V, 49314 Heavy Duty 7/16” Hex X 1/2” Square Drive Shank
Pressure Port	9/16 – 18 SAE O-Ring
Included Components	7/16 Hex Quick-Change Chuck And 49314 Heavy-Duty Adapter IN
Drive Size	1/2 IN
Weight	6.500 LB (2.930 KG)
Width	4.200 IN
Optimum Flow Range	5 – 8 GPM (19 – 30 LPM)
Includes	7/16 Hex Quick-Change Chuck And 49314 Heavy-Duty Adapter IN
Hydraulic System	Super Spool Selector For Open and Closed-Center Systems
Length	8.200 IN

Specifications

More Information
OPT SKU	GRHW1
MPN	HW1
UPC/GTIN	783310003731
Product Type	Impact Wrenches
Google Category	Hardware > Tools > Impact Wrenches & Drivers
Anvil	7/16″
Power Method	Air/Pneumatic
Shipping Weight	9.00
