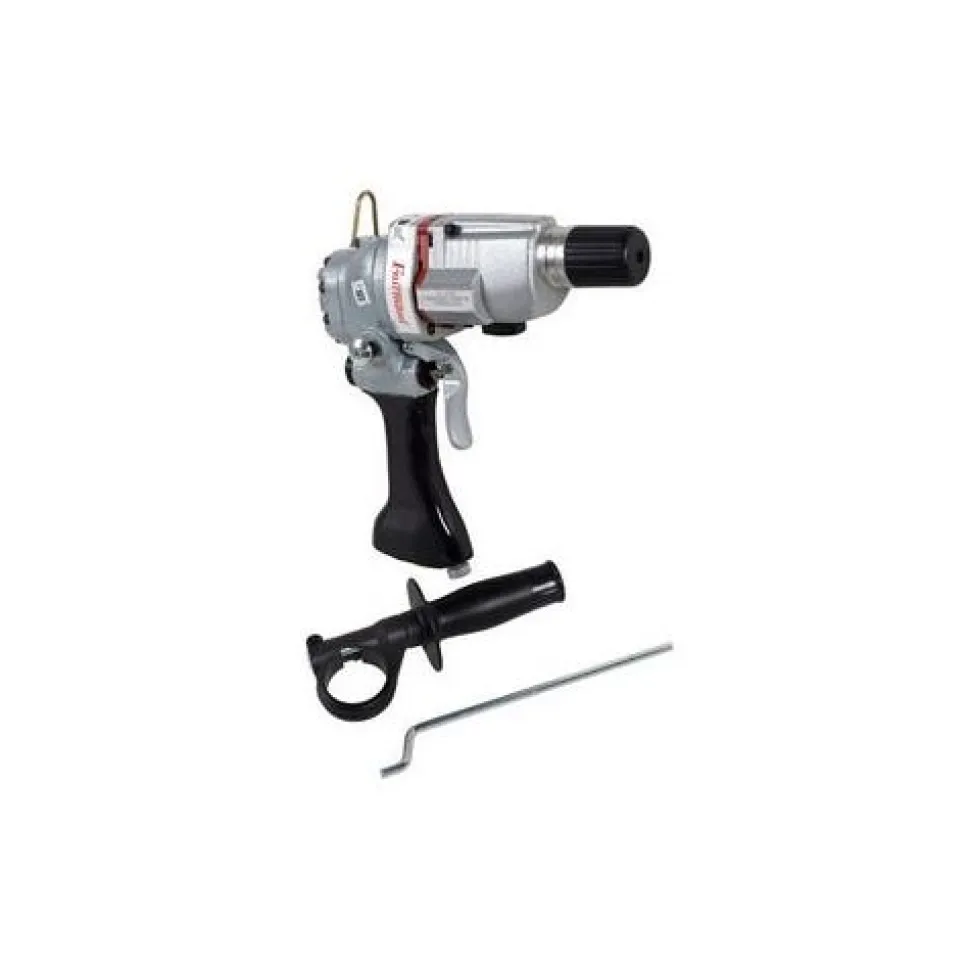

Greenlee Hydraulic Rotary Impact SDS-Plus Hammer Drill HID6506

Original price was: $3,089.00.Current price is: $134.99.

Additional Details

Greenlee
Rotary Impact Hammer Drill HID6506
Adjustable flow control prevents overspeeding and allows precise control of drilling speed
Supports speeds up to 5;400 bpm; generating 13% more blows per minute to help you get the job done quicker
Improved design for better balance and ergonomics
Hammer drill in concrete; brick; rock; and other difficult-to-drill materials. Makes 16% larger holes in concrete and 11% larger holes in wood
Drill in wood or steel with auxiliary chuck
Super Spool selector control for use on Open and Closed-Center hydraulic systems
Selector for drill or hammer/drill modes
Rugged gear motor
Built-in slip clutch to guard against over-torque
Depth gauge and auxiliary handle are removable for tight areas
Reversible
Accessory : 54923 HTMA Male Coupler; 54925 HTMA Female Coupler; 139287 Auxiliary Drill Chuck
Blows Per Minute : 3400 – 4800 RPM At 6.500 GPM (25.000 LPM)
Capacity : Steel 1/2 IN (134.000 MM) Hole; Wood 1-1/16 IN (27.000 MM) Hole; Concrete 3/4 IN (19.000 MM) Hole; Core Bits 3.000 IN (76.000 MM)
Chuck : SDS Plus Bit Shanks
Height : 9.750 IN (248.000 MM)
Hydraulic Flow Range : 5 – 10 GPM (19 – 38 LPM)
Length : 12.000 IN (305.000 MM)
Operating Pressure : 1000 – 2000 PSI (69 – 140 BAR)
Pressure Port : 3/4 – 16 SAE O-Ring Thread
Return Port : 3/4 – 16 SAE O-Ring Thread
Speed : 775 – 1100 RPM At 6.5 GPM (25LPM)
System : Super Spool Selector Control System
Type : Rotary Impact
Weight : 8.500 LB (3.900 KG)
Width : 3.500 IN (89.000 MM)

Manufacturer Specifications

Pressure Port	3/4 – 16 SAE O-Ring Thread
Chuck	SDS Plus Bit Shanks
Type	Rotary Impact
Speed	775 – 1100 RPM At 6.5 GPM (25LPM)
Weight	8.500 LB (3.900 KG)
Hydraulic Flow Range	5 – 10 GPM (19 – 38 LPM)
Width	3.500 IN (89.000 MM)
Length	12.000 IN (305.000 MM)
Country of Origin	United States
Return Port	3/4 – 16 SAE O-Ring Thread
Operating Pressure	1000 – 2000 PSI (69 – 140 BAR)
Accessory	54923 HTMA Male Coupler, 54925 HTMA Female Coupler, 139287 Auxiliary Drill Chuck
Height	9.750 IN (248.000 MM)
Capacity	Steel 1/2 IN (134.000 MM) Hole, Wood 1-1/16 IN (27.000 MM) Hole, Concrete 3/4 IN (19.000 MM) Hole, Core Bits 3.000 IN (76.000 MM)
Blows Per Minute	3400 – 4800 RPM At 6.500 GPM (25.000 LPM)
System	Super Spool Selector Control System

Specifications

More Information
OPT SKU	GRHID6506
MPN	HID6506
UPC/GTIN	783310423096
Product Type	Rotary Hammer Drills (SDS, SDS-Max, Spline)
Google Category	Hardware > Tools > Hammers > Powered Hammers
Power Method	Hydraulic
Shipping Weight	11.00
