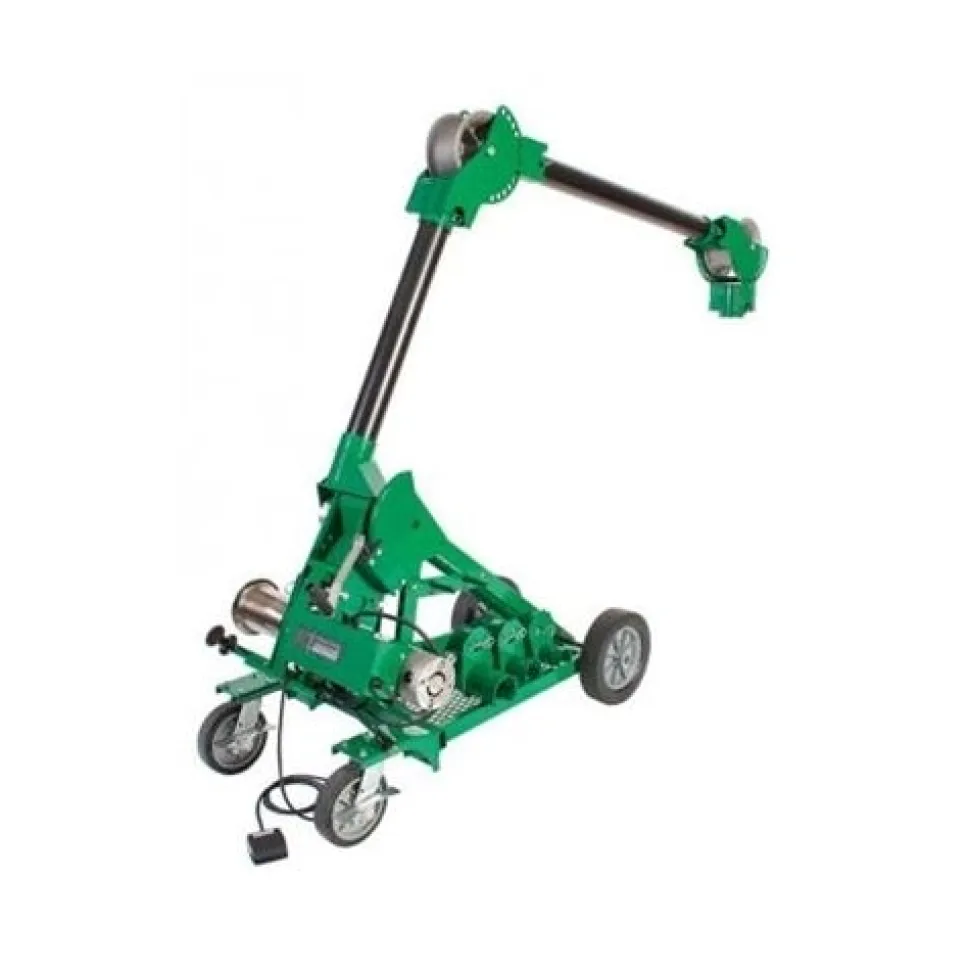

Greenlee UT10-22 (220V) Cable Puller Assembly UT10-22

Greenlee

UT10-22 Cable Puller Assembly UT10-22

FEATURES:

• 2-Speed motor that delivers the fastest pulling time for all pulling needs over the widest (10000 LB) range.
• Strong; rugged motor designed specifically for both big and small cable pulling applications up to 10000 LB.
• Easy control features for increased productivity.
• On-board force gauge provides visual communication of pulling force and speed changes.
• Quick speed change from high-speed to low-speed by simply double tapping foot pedal.
• Removable foot pedal for convenience.
• Capacity: 0 – 6500 LB (0 – 28.9 KN) Continuous Operation; 6500 – 8000 LB (28.9 – 35.6 KN) 15 MINT ON/15 MINT OFF; 8000 – 10000 LB (35.6 – 44.5 KN) Momentary.
• Voltage : 220 V.

SPEEDS (APPROX.):

Low Speed	6;000 lbs.: 7 FPM 8;000 lbs.: 6 FPM
High Speed	no load: 48 FPM 2;000 lbs.: 14 FPM 4;000 lbs.: 12 FPM
