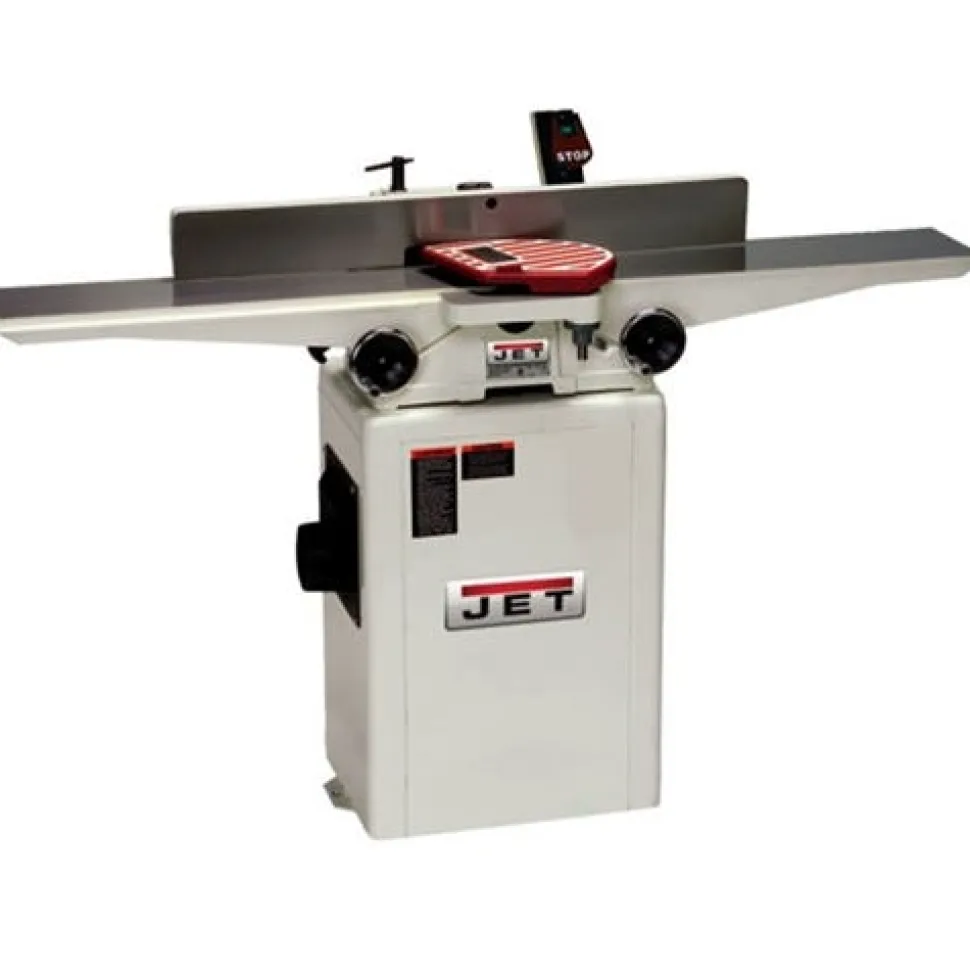

Jet 6″ Deluxe Long Bed Jointer JJ-6CSDX w/ Quick Set Knives 708457DXK

Jet Tools

6 Deluxe Long Bed Jointer JJ-6CSDX w/ Quick Set Knives 708457DXK

The JET 6″ Long Bed Jointer offers one of the longest working surfaces in its class. With the addition of an exclusive auto-set quick change knife system you can replace or change all three blades in a fraction of the time other machines take.

FEATURES:

• Three high-speed steel quick change knives provide rapid cutting; a superior finish and eliminates the need for a knife setting gauge.
• Extra-long heavy-duty cast iron infeed and outfeed tables with precision machined finish.
• Built-in rabbeting ledge adds versatility.
• Two-way tilting fence with positive stops at 45° and 90° to handle bevel operations.
• Exclusive front-mounted table adjustment handwheels make quick; easy and accurate corrections.
• Industrial push-button controls are conveniently placed for easy access.
• Built-in dust chute with 4″ port connects to your collection system for efficient dust/chip disposal.
• Center fence controls are conveniently mounted to allow quick adjustments.
• Powerful 1HP motor easily handles the toughest jointing tasks.
• Heavy-duty; one-piece steel closed stand includes mounting tabs for increased stability.

SPECIFICATIONS:

Number of Knives	3
Helical Knife Size (L x W x T) (In.)	6-1/16″ x 3/4″ x 5/64″
Standard Knife Size (L x W x T) (In.)	6-1/6″ x 3/4″ x 5/64″
Cutterhead Speed (RPM)	6000
Cutting Capacity (W x D) (In.)	6-1/16″ x 1/2″
Table Size (L x W) (In.)	56″ x 7-3/8″
Table Height from Floor (In.)	31-1/4″
Rabbeting Capacity (In.)	1/2″
Rabbeting Ledge (In.)	3-1/8″ x 8-3/4″
Fence Size (L x H) (In.)	32-3/4″ x 3-7/8″
Fence Tilt (Deg.)	45 L; 45 R
Fence Positive Stops (Deg.)	45; 90 L; 90 R
Dust Collection Minimum CFM Required (CFM)	350
Dust Port Outside Diameter (In.)	4″
Motor Power (HP)	1
Motor Voltage (V)	115/230
Prewired Voltage (V)	115
Motor Phase (PH)	1
Motor Amps	13/6.5
Weight	256 lbs

“
