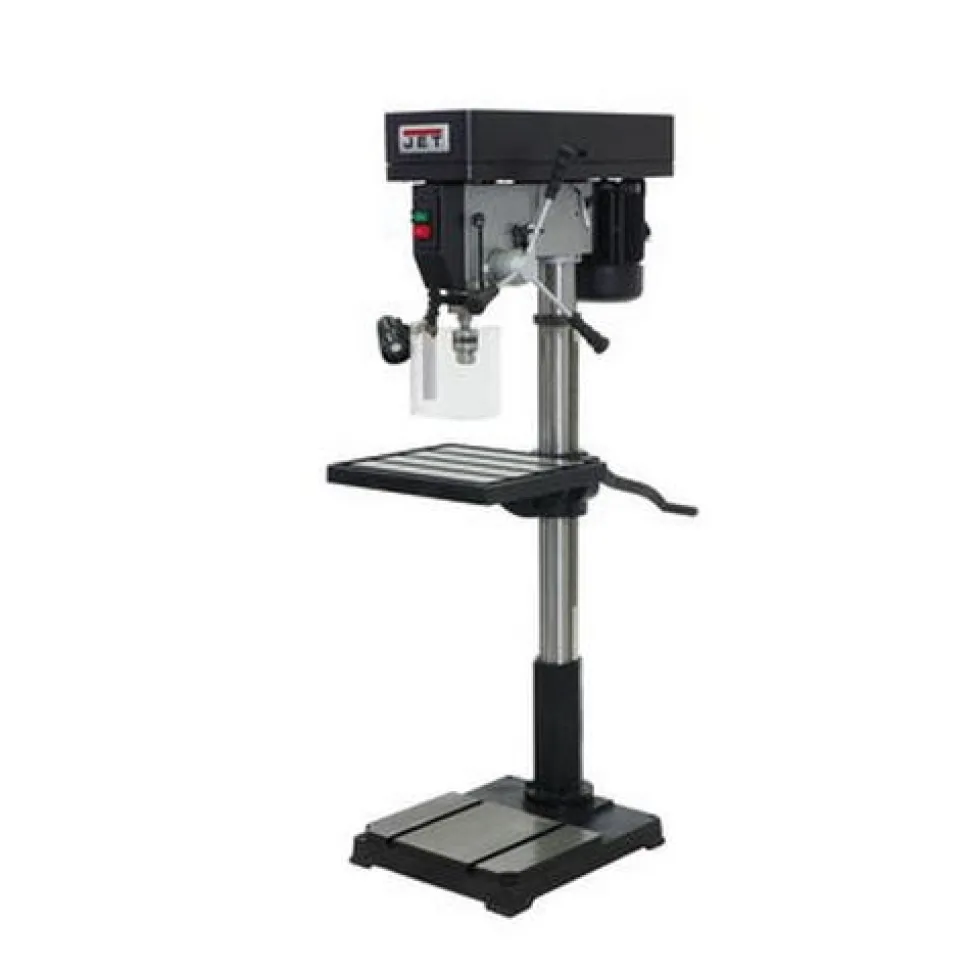

JET IDP-22 22″ Industrial Floor Model Drill Press 354301

• JET
• IDP-22; 22″ Industrial Floor Model Drill Press 354301
• Accuracy; stability and versatility are the benchmark features of the JET 17″ and 22″ Industrial Drill Presses. This heavy-duty industrial line of JET Drill Presses come standard with oversize tables and are CSA/CUS Certified. JET backs their machines with the industry-leading Two Year Warranty.
• For added Safety; the IDP-22; 22″ Industrial Floor Model Drill Press follows strict guidelines and electrical requirements to be certified by the CSA Group.
• Spindle is supported by high quality ball bearings
• Hinged metal belt and pulley cover coupled with quick adjustment motor mount allow rapid changing of spindle speeds
• Large Hand Grips designed with the users comfort in mind
• Rotating; 45 tilting; crank-operated worktable with quick release clamp
• A 1/2″ diameter external positive depth stop with three nut locking feature for quick adjustment
• Adjustable tension spindle return spring
• Drill chuck and key attach to the side of the drill press always within reach of the operator
• On/off switch located on front of the drill press head
• Heavy Duty construction
• Cast Iron table and base
• Table ground for accuracy
• STANDARD EQUIPMENT
• LED Machine Lamp
• Ground Table
• Spindle Safety Guard
• Drill Chuck and Key
• Style (Type): Belt Drive
• Drills to Center of Circle (in): 22
• Drilling Capacity Cast Iron (In.): 1-1/4
• Drilling Capacity Mild Steel (In.): 1
• Tapping Capacity Mild Steel (In.): 1
• Distance Column to Spindle (In.): 10-7/8
• Number of Spindle Speeds: 12
• Range of Spindle Speeds (RPM): 175 – 3;050
• Column Diameter (In.): 3-5/8
• Spindle Taper (In. x TPI): MT-3
• Spindle Travel (In.): 4-13/16
• Spindle Distance to Base (In.): 48-1/2
• Spindle Distance to Table (Max.) (In.): 28
• Table Size (L x W) (In.): 18-5/8 x 16-1/8
• T-Slots Number and Size (In.): 2 and 5/8
• T-Slot Centers (In.): 3/4
• Work Table Weight Capacity (Lbs.): 176
• Base Dimensions (In.): 22-5/8 x 19-7/16
• Base Work Table (In.): 21-1/2 x 18-5/16
• Base Slots Number & Size (In.): 2 and 5/8
• Motor (HP): 1-1/2HP; 115/230V; 1Ph
• Weight (Lbs.): 364

“
