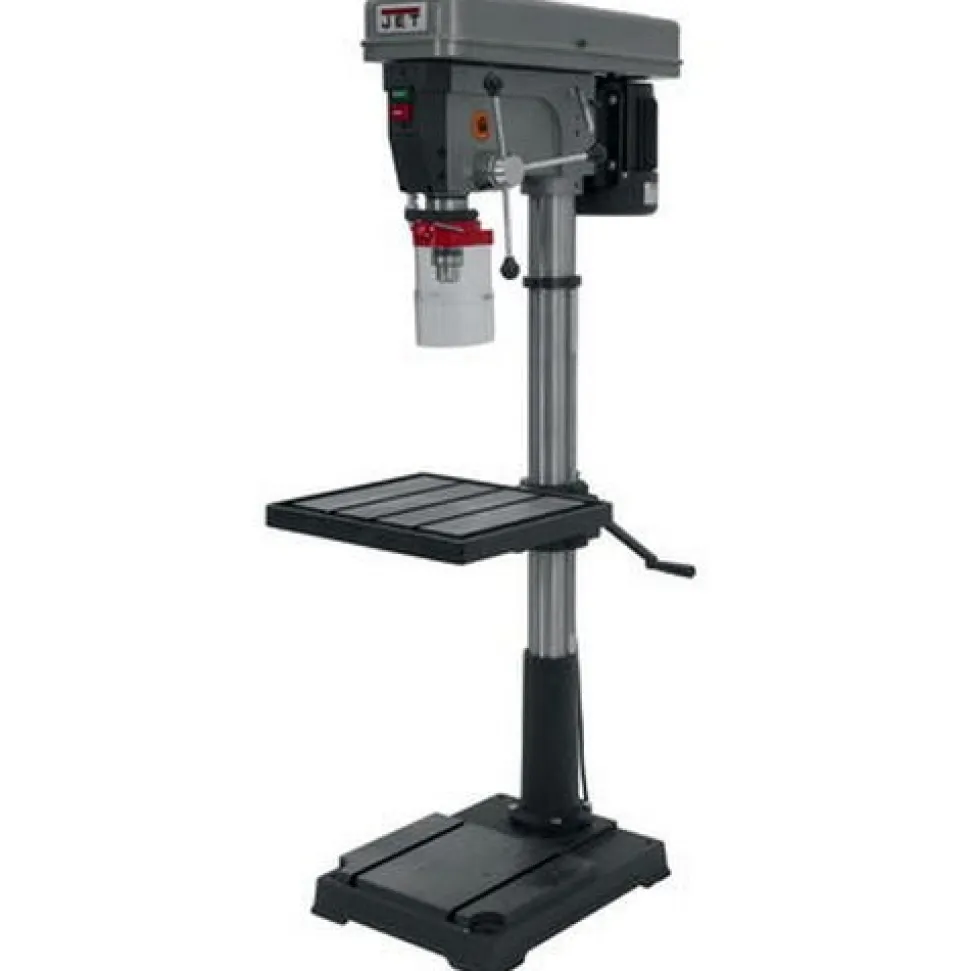

Jet J-2550 20″ Metalworking High Capacity Drill Press 354402

• Jet Tools
• Cast Iron Head
• Large quill allows greater accuracy
• Head casting features a permanently lubricated ball bearing spindle assembly using four heavy duty ball bearings mounted in an enclosed quill for extended life
• Table tilts 45
• Massive T-slotted production table
• Large ground steel column diameter for maximum head and table support
• 4-3/4 stroke for deep hole applications
• Accurate depth stop for precise hole depths
• Includes 5/8″ chuck and arbor
• Specifications
• Stock Number: 354402
• Model Number: J-2550
• Drilling Capacity Cast Iron: 3/4″
• Drilling Capacity Mild Steel: 5/8″
• Column Diameter: 3-5/8″
• Distance Column to Spindle: 10-1/2″
• Range of Spindle Speeds: 150-4200 RPM
• Spindle Travel: 4-3/4″
• Spindle Distance to Base: 43-1/2″
• Spindle Distance to Table: 24″
• Table Size: 18-1/2 x 16-1/2″
• Table Travel: 21-1/2″
• T-Slots Number and Size: 3 x 1/2″
• T-Slot Centers: 4″
• Work Table Weight Capacity: 66 lbs.
• Spindle Taper: MT-3
• Base Dimensions: 22-3/4 x 17-3/4″
• Base Work Table: 13 x 14-1/2″
• Motor: 1 HP; 1 Ph; 115/230V; Prewired 115V
• Overall Dimensions: 33-1/2 x 18-1/2 x 67″
• Net Weight: 304 lbs.

“
