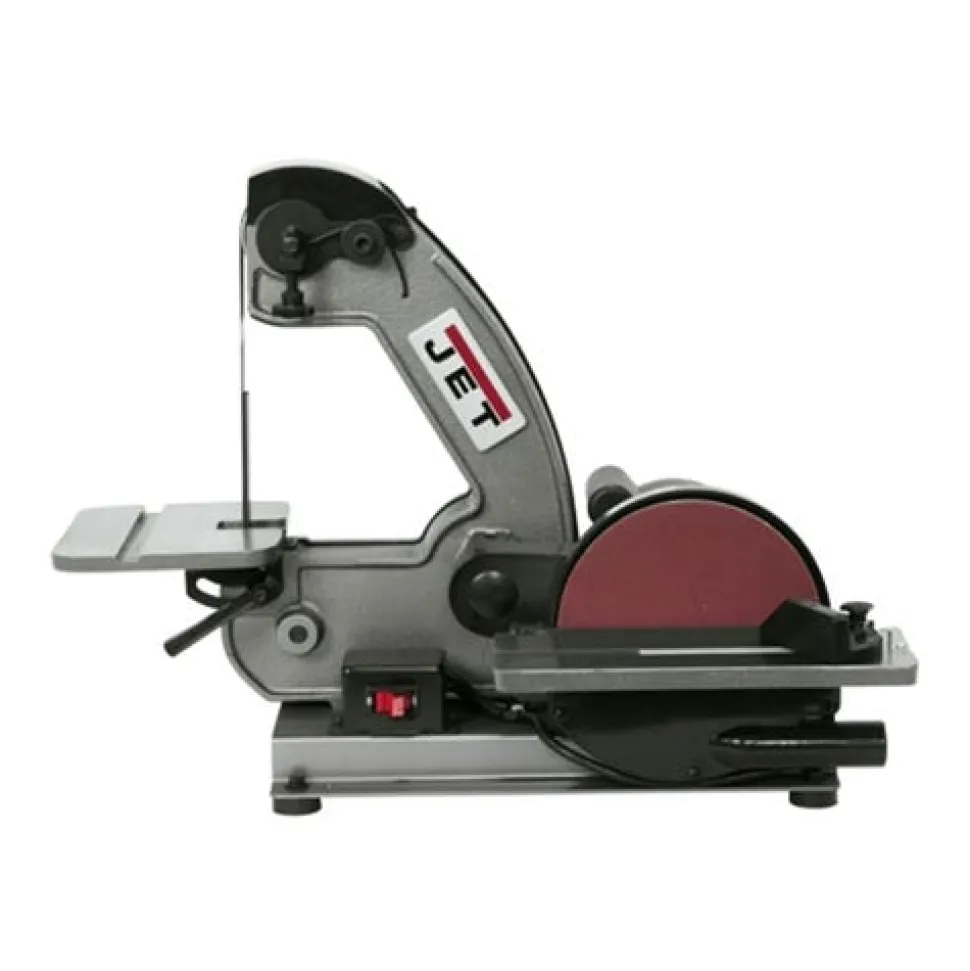

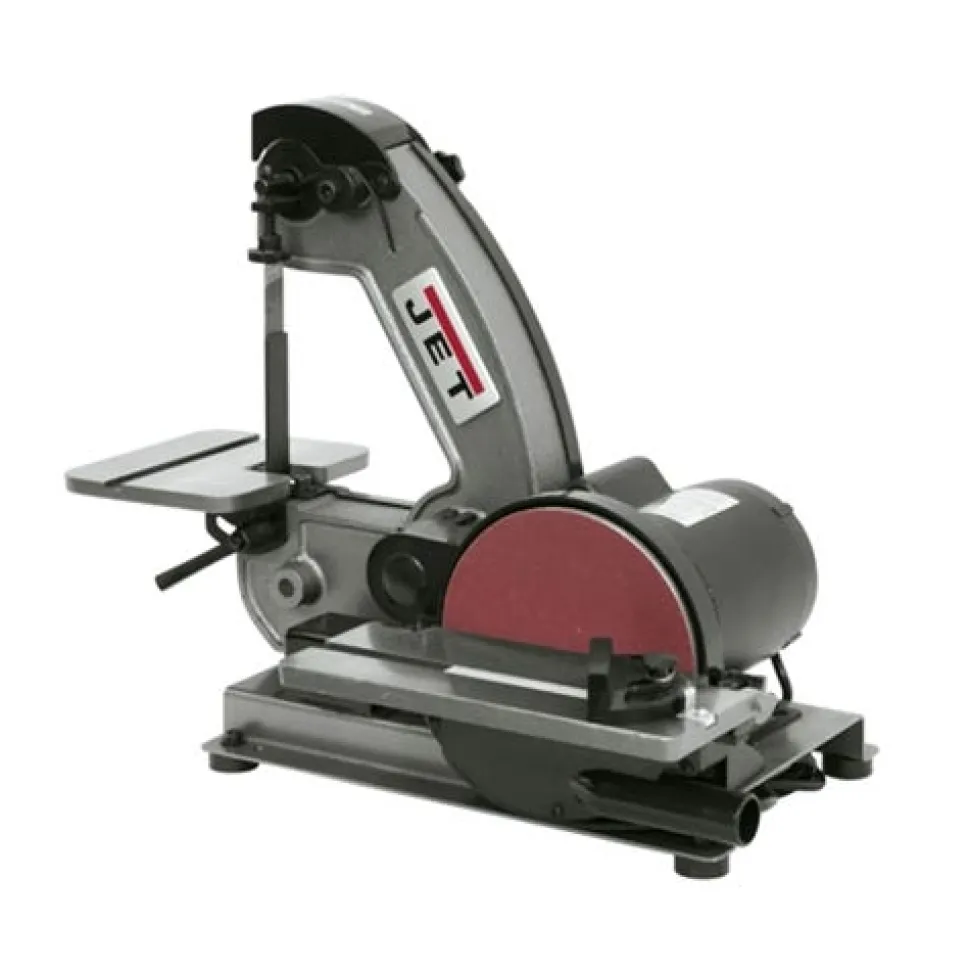

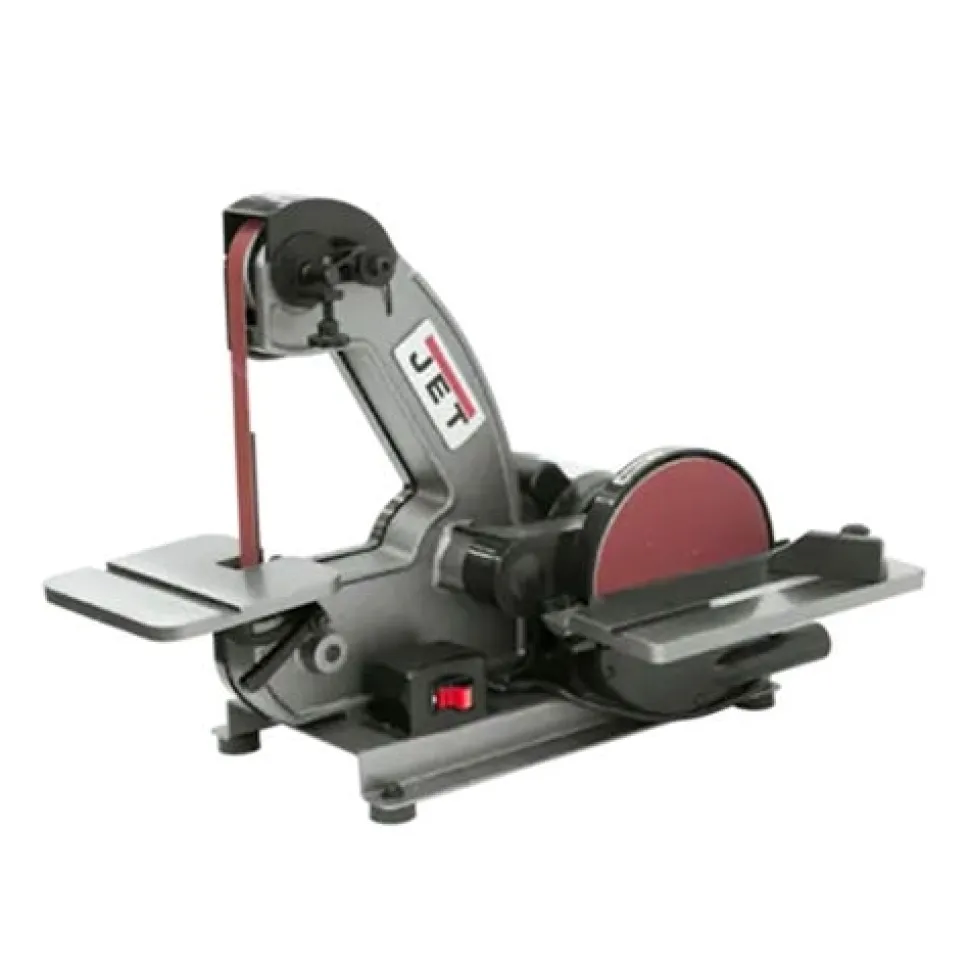

JET J-4002 1″ x 42″ Bench Belt and Disc Sander 577003

Jet

J-4002 1 x 42 Bench Belt and Disc Sander 577003

Another JET combination Bench Belt and Disc Sander designed to deliver the superior finish. The design of this machine permits sanding; grinding and finishing of outside curves or odd-shaped pieces. Heavy-duty base; cast construction and cast iron tilting table means you are getting the very best JET has to offer.

FEATURES:

• Abrasive belt unit removes material and finishes at the same time; allowing the operator to get into small openings; plus handle odd shapes and angles.
• Deluxe miter gauge that turns and locks for common angles; 45° both left and right.

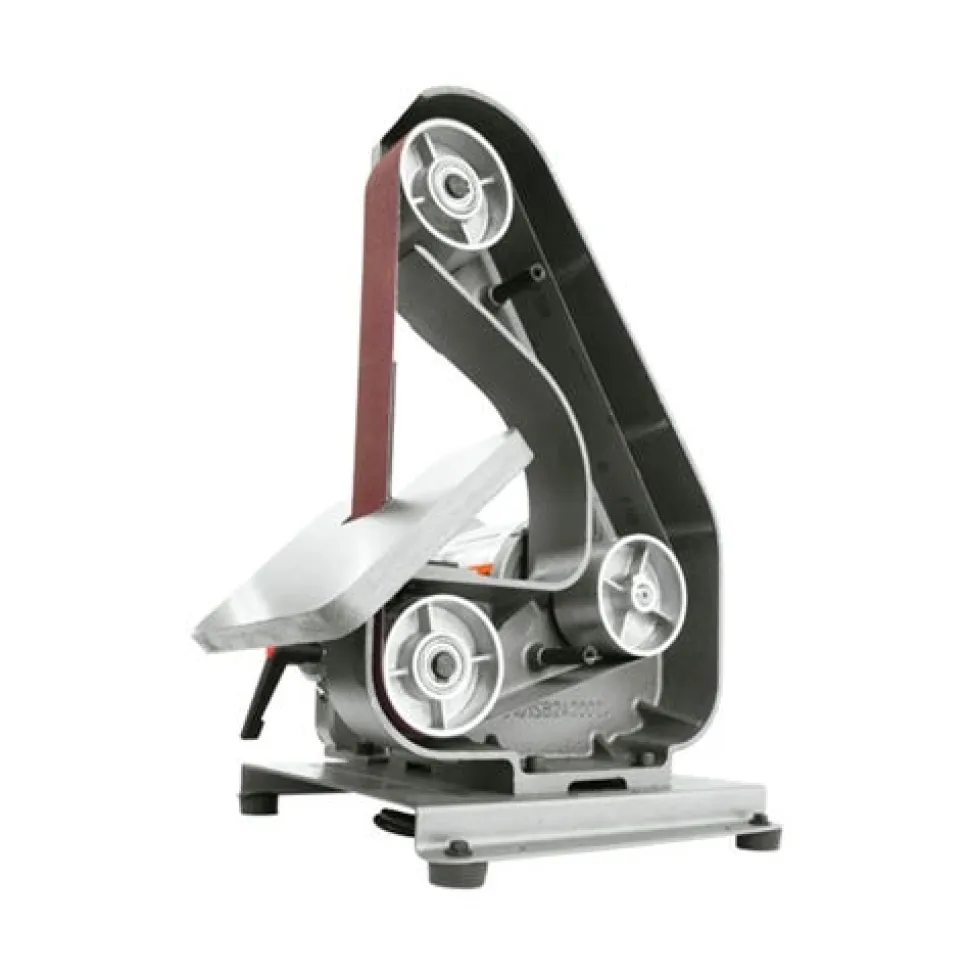

• Removable platen allows for sanding; grinding or finishing of outside curves or odd shaped work pieces on the belt.
• Hinged idler wheel cover.
• Cast Iron construction.
• Heavy-duty steel base and rubber feet.
• Adjustable dust deflector and dust chute.

SPECIFICATIONS:

Style (Type)	Belt & Disc
Disc Diameter (In.)	8
Disc Speed (RPM)	1;725
Belt Size (W x L) (In.)	1 x 42
Belt Speed (SFPM)	3;000
Disc Table Size (L x W) (In.)	4 x 10
Disc Table Tilt (Deg.)	45 Out
Table Slots (In.)	5/8
Belt Table Tilt (Deg.)	45 Out
Belt Table Size (In.)	6-1/8 x 7-1/8
Motor (HP)	1/3 HP; 115V; 1Ph
Overall Dimensions (L x W x H) (In.)	21 x 22 x 14
