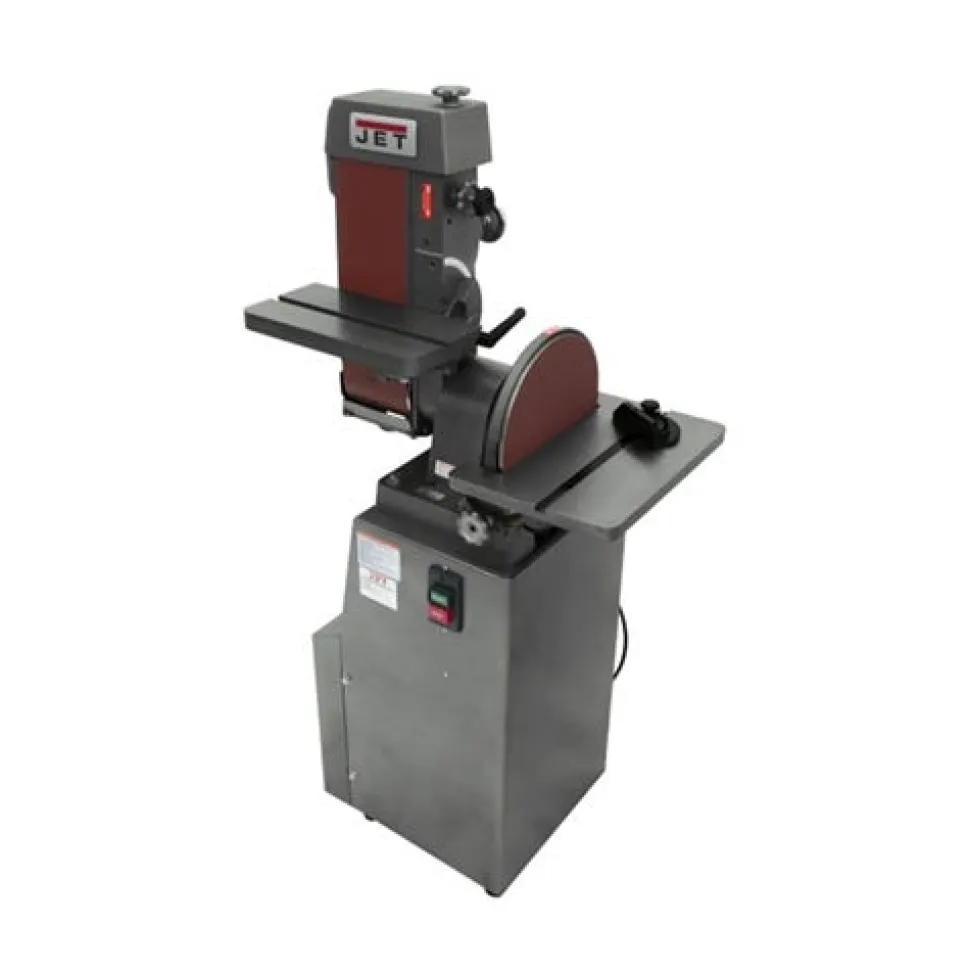

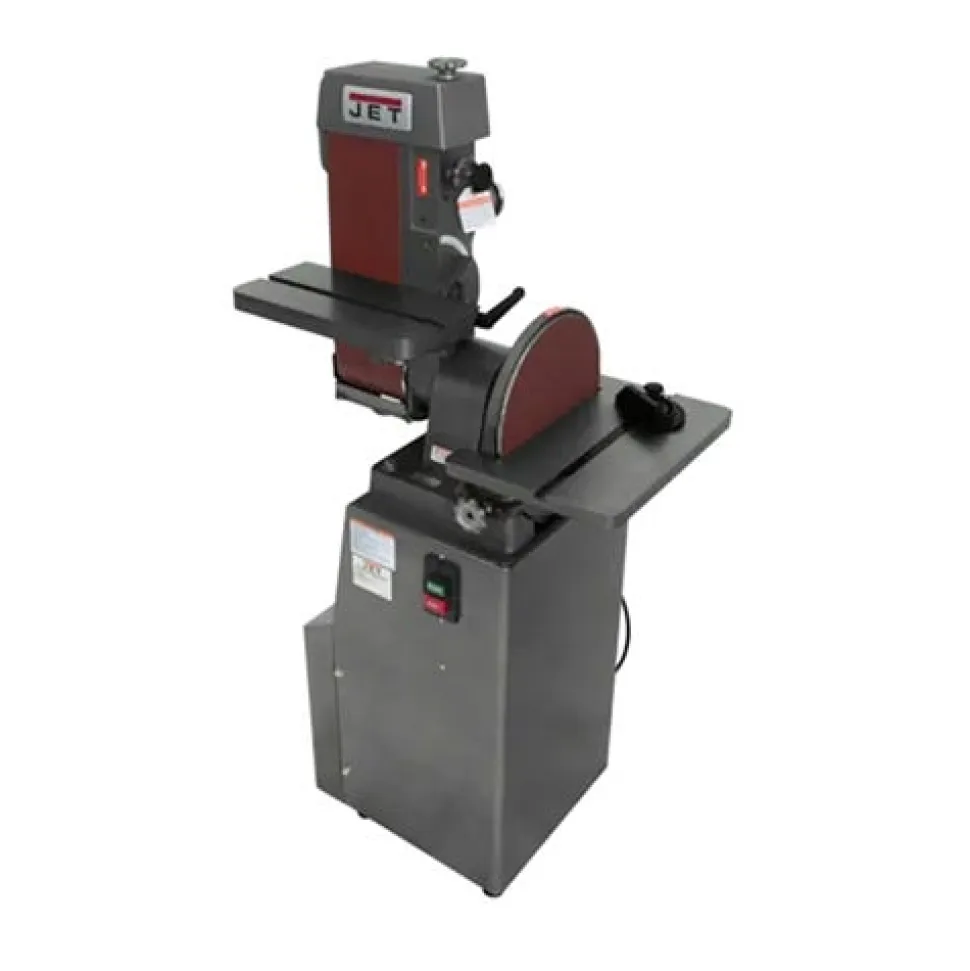

Jet J-4200A-2 6″ x 48″ Industrial Combination Belt and 12″ Disc Finishing Machine 230V 1Ph 414552

Jet

J-4200A-2; 6 x 48″ Industrial Combination Belt and 12″ Disc Finishing Machine 230V 1Ph 414552

High-speed precision and amazing versatility. This rugged piece of equipment has a belt that operates at any angle; and conforms to curves; angles or circular finishing and grinding operations. Machinists who take great pride in their work prefer the JET Industrial Combination Belt & Disc Finishing Machine. For added safety; the J-4200A-2 follows strict guidelines and electrical requirements to be certified by CSA Group.

FEATURES:

• Plain and compound miters are easily obtained by using the standard die cast aluminum miter gauge.
• Fully machined; balanced disc.
• Belt operates at any angle and belt head adjusts vertically and horizontally.
• Removable upper belt guard for contour finishing.
• Completely enclosed drums and guarded sanding belt.
• Adjustable heavy-duty cast iron removable platen.
• Variable position locks.
• Large cast iron slotted table.
• Adjustable dust collector and dust chute.
• Heavy-duty one-piece steel stand.
• 60 grit belt & disc standard on machine.

SPECIFICATIONS:

Style (Type)	Belt & Disc
Disc Diameter (In.)	12
Disc Speed (RPM)	1;960
Belt Size (W x L) (In.)	6 x 48
Belt Speed (SFPM)	2;850
Disc Table Size (L x W) (In.)	12 x 16-3/8
Disc Table Tilt (Deg.)	45 Out; 20 In
Table Slots (In.)	3/8 & 3/4
Belt Table Tilt (Deg.)	45 Out; 20 In
Belt Table Size (In.)	7-3/8 x 14-3/4
Motor (HP)	1-1/2 HP; 230V; 1 Ph
Overall Dimensions (L x W x H) (In.)	26 x 19 x 58

“
