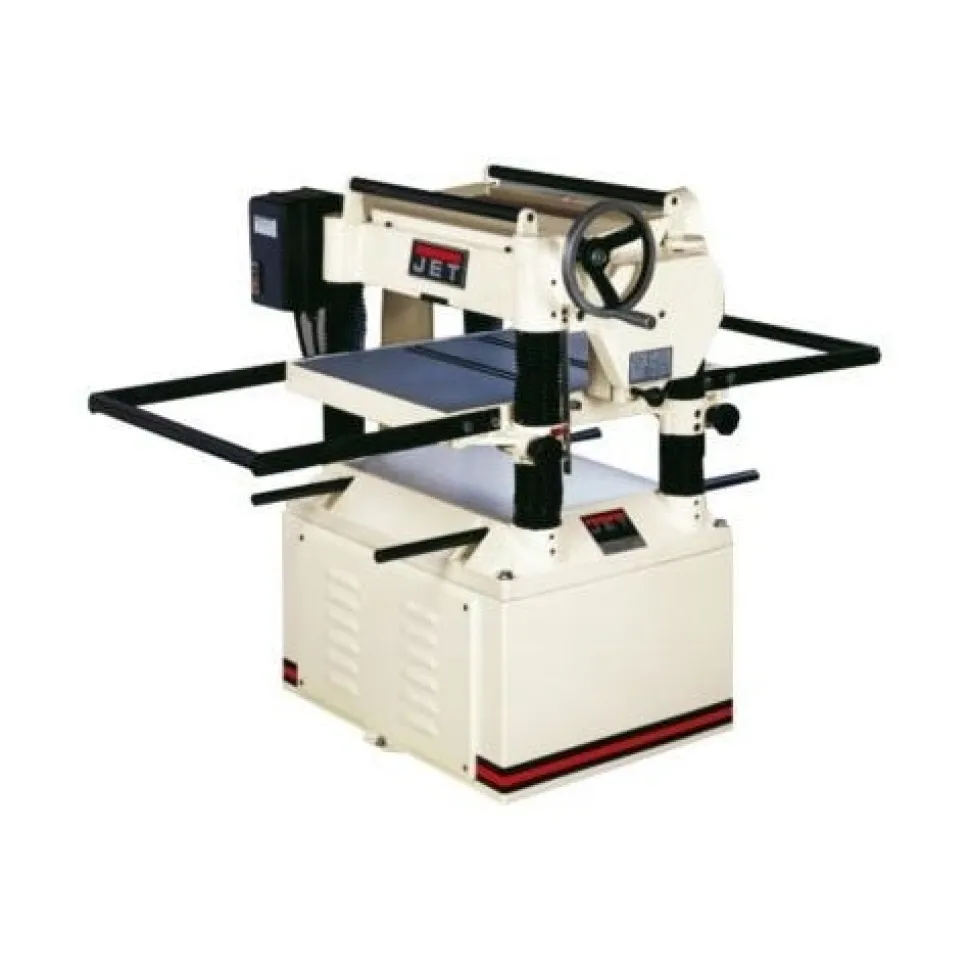

Jet JWP-208-1 20″ Woodworking Planer 708528

Jet Tools

JWP-208-1 20 Woodworking Planer 708528

The JET JWP-208-1 planer quickly and quietly transforms rough lumber into smooth boards; with a full 20” planing width. Its heavy-duty cast iron and steel construction keeps the workpiece steady and supported; while the conveniently located two-speed gear box allows for quick and easy feed rate adjustments.

FEATURES:

• Four high-speed steel cutter knives produce faster; smoother cutting.
• Heavy-duty cast iron and steel construction for added strength and durability.
• Two-speed gear box with automatic chain tensioner lets you adjust the feed rate to meet your needs.
• Large; cast iron; precision ground table for precise workpiece support.
• Powerful 3 HP TEFC induction motor with three V-belt transmission for smooth and consistent power.
• Sets of three steel infeed and outfeed rollers to help in the prevention of snipe.
• Positive gear drive moves table quickly and accurately.
• Work table is precision-ground and polished for consistently smooth operation.
• Large handwheel with positive gear drive allows for quick and accurately table adjustments.
• 1/16″ increment height scale lets you make the most precise adjustments for fine cuts.
• 5″ dust port provides efficient chip and dust collection.
• One-piece welded steel base offers solid support and stability.
• Magnetic controls provide long life and reliability.

SPECIFICATIONS:

Style (Type)	Floorstanding Model
Cutterhead Speed (RPM)	5000
Cutterhead Diameter (In.)	3-3/16″
Number of Knives	4
Maximum Full Width Depth of Cut (In.)	3/32″
Maximum Planing Width (In.)	20″
Maximum Planing Thickness (In.)	8″
Minimum Planing Length (In.)	6-3/4″
Feed Rate (FPM)	24/31
Table Size (L x W) (In.)	25-3/4″ x 20″
Dust Collection Minimum CFM Required (CFM)	400
Dust Port Outside Diameter (In.)	5″
Motor Power (HP)	3
Motor Phase (PH)	1
Motor Voltage (V.)	230
Prewired Voltage (V.)	230
Motor Amps	14
Weight	765 lbs

“
