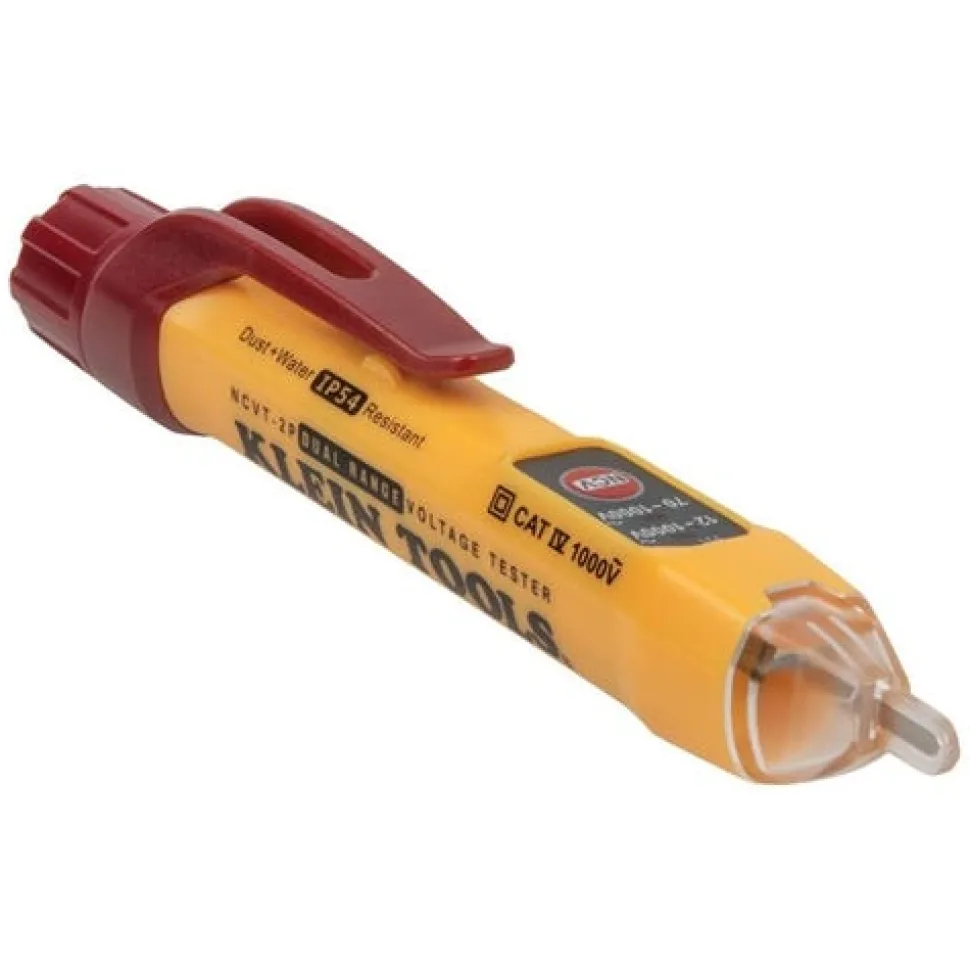

Klein 12 – 1000V AC Dual Range Non-Contact Voltage Tester NCVT2P

Klein

12 – 1000V AC Dual Range Non-Contact Voltage Tester NCVT2P

The NCVT-2P is a non-contact voltage tester that detects 12 to 1000V AC and indicates the presence of voltage in cables; cords; circuit breakers; light fixtures; switches; outlets and wires as well as AC voltage in doorbells; thermostats; low voltage lighting and irrigation systems. Includes both visual and audible signals. The NCVT-2P is rugged enough for any job site.

FEATURES:

• Non contact voltage tester’s dual-range capabilities allow tester to detect from 12 to 1000 V AC or 70 to 1000V AC for a broad variety of low-voltage or standard voltage applications.
• Electrical voltage tester detects voltage with simultaneous visual and audible indicators.
• Non-contact detection of low voltage in security; entertainment; communications; environmental control; and irrigation systems.
• Green light indicates no voltage.
• Lightweight; compact tool with pocket clip provides convenient storage and quick access.
• Auto power-off feature conserves and extends battery life.
• CAT IV 1000 V rating provides expanded operation and protection.
• Screw-thread battery cap with O-ring ensures protection against dust and water ingress.
• 6.6-Foot (2 m) drop protection.
• IP54: Dustproof and waterproof.
• Conforms to CE requirements.
• US Patent 10;073;142; D750;985 and other patents pending.

SPECIFICATIONS:

Type	Dual Range
Material	Polycarbonate
Voltage	12 – 1000V AC
Frequency	50 – 500 Hz
Pollution Degree	2
Battery Life	142 Hrs
Overall Length	5.82 (14.8 cm)
Drop Protection	6.6′ (2 m)
Ingress Protection	IP54

INCLUDES:

• (1) 12 – 1000V AC Dual Range Non-Contact Voltage Tester (NCVT2P)
• (2) AAA Batteries

“
