Klein Insulation Resistance Tester ET600

Klein Tools

Insulation Resistance Tester ET600

The ET600 is a multi-function Megohmmeter capable of producing 125V, 250V, 500V, and 1000V test voltages for insulation resistance measurements up to 4000MΩ. Also tests AC/DC voltages up to 1000V with automatic ranging True RMS technology. Convenient lock function and built-in stand for hands free operation. Dual-function backlit display monitors process.

FEATURES:

• Voltage Tester tests insulation resistance up to 4000MΩ at 125V, 250V, 500V, and 1000V DC.

• Megohmmeter with test and lock buttons for simple insulation testing.

• Warning alarm and high voltage icon for detection of voltage.

• Measures up to 1000V AC/DC, resistance, and continuity.

• Automatic ranging True Root Mean Square (TRMS) technology for increased accuracy.

• Backlit display with bar graph, Auto-power off, High Voltage, Max/Min, and Hold icons.

• Low battery indicator with easily replaceable battery and fuse.

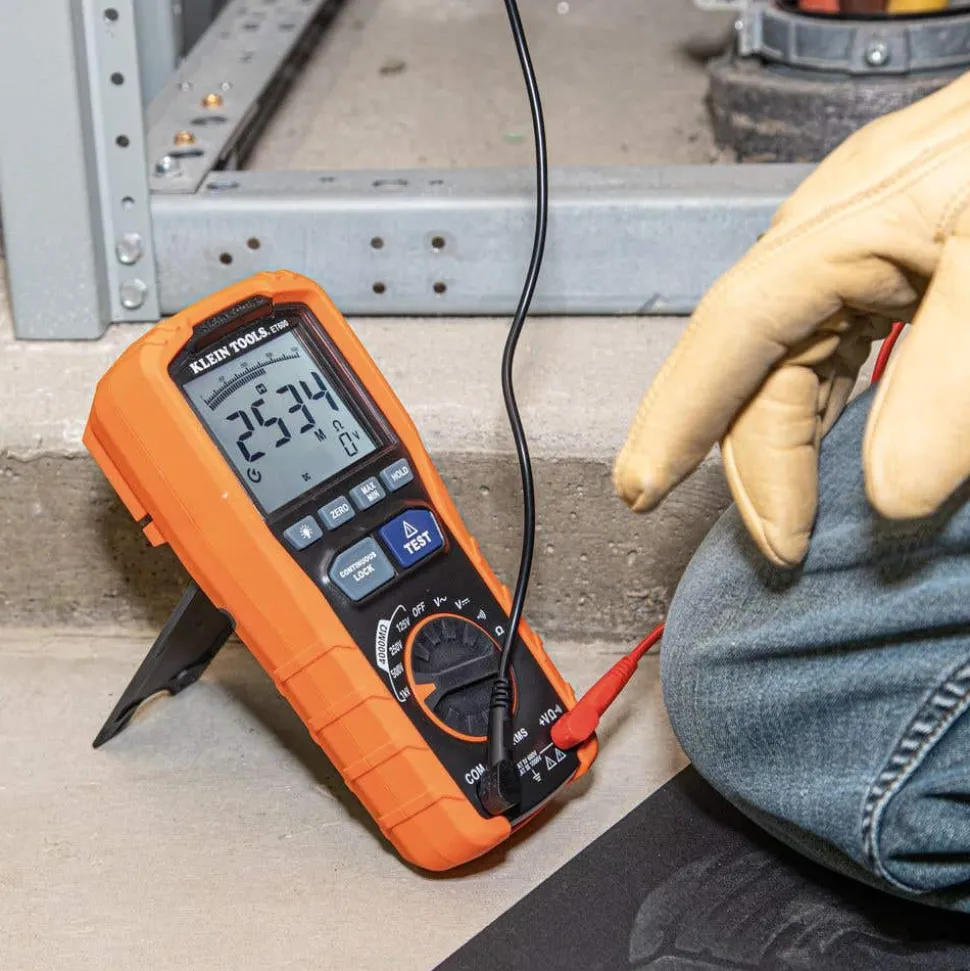

• Built-in stand and optional magnetic hanger for hands free operation.

• Test verification of conformity to EN61557-1,-2,-4.

• CAT IV 600V and CAT III 1000V safety rating.

• Includes Right Angle Test Leads and Heavy-Duty Alligator Clip Test Leads.

SPECIFICATIONS:

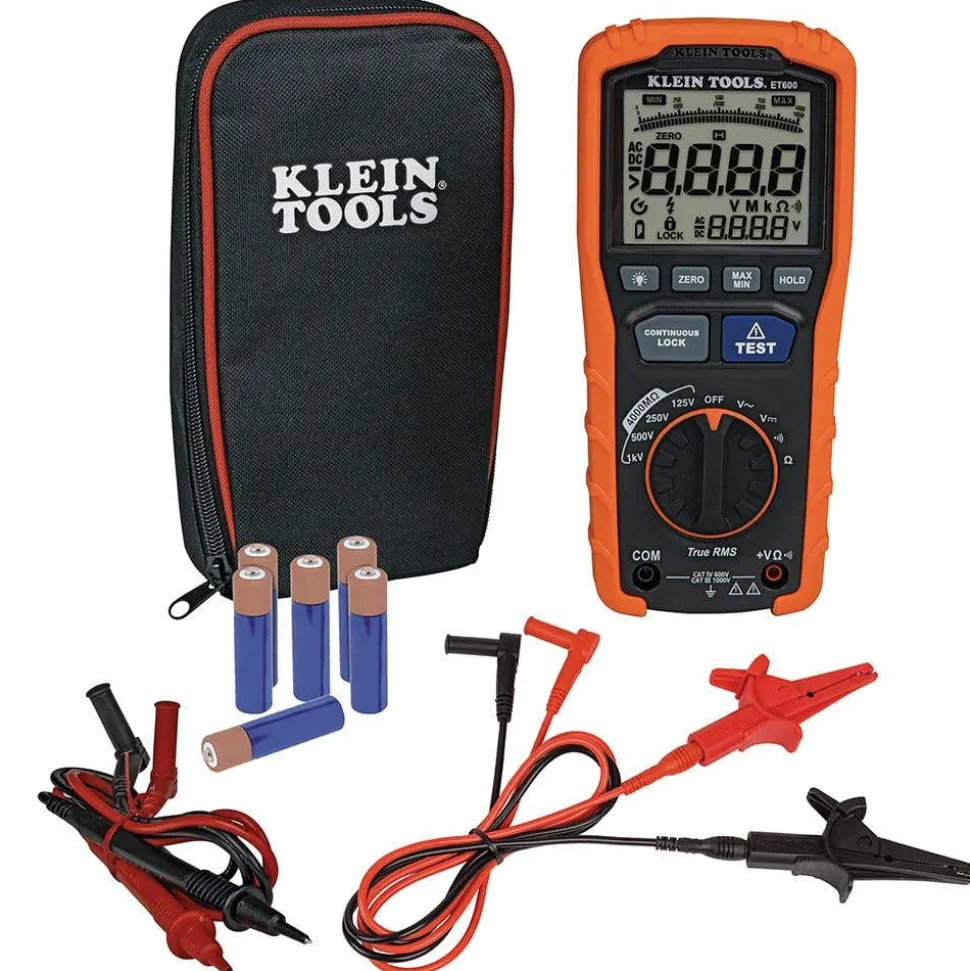

INCLUDES:

(1) CAT III/CAT IV Safety Rated Test Leads

(1) Heavy-duty Alligator Clip Test Leads

(6) Batteries

(1) Carrying Case

(1) Instruction Manual
