Power Team 100 Ton Hydraulic 3″ Single Acting Cylinder Center Hole RH1003

Power Team SPX

Power Team 10 ton hydraulic 3 single acting cylinder center hole RH1003

Center hole cylinder ideal for pulling and tensioning cables; anchor bolts with interchangeable piston head inserts

FEATURES:

• Single Acting
• Interchangeable piston head inserts provide versatility of application.
• 12; 20; 30; 50; 60 Ton Single-Acting Models Feature Threaded Collar; Model RH203 and RHA306 do not feature the collar thread
• Withstands full “dead-end” loads
• Corrosion resistant standpipe has “Power Tech” treatment
• All cylinders except RH120 are furnished with a 9796 3/8″ NPT female half coupler
• Aluminum cylinder body and piston are featured on the RHA306 cylinder

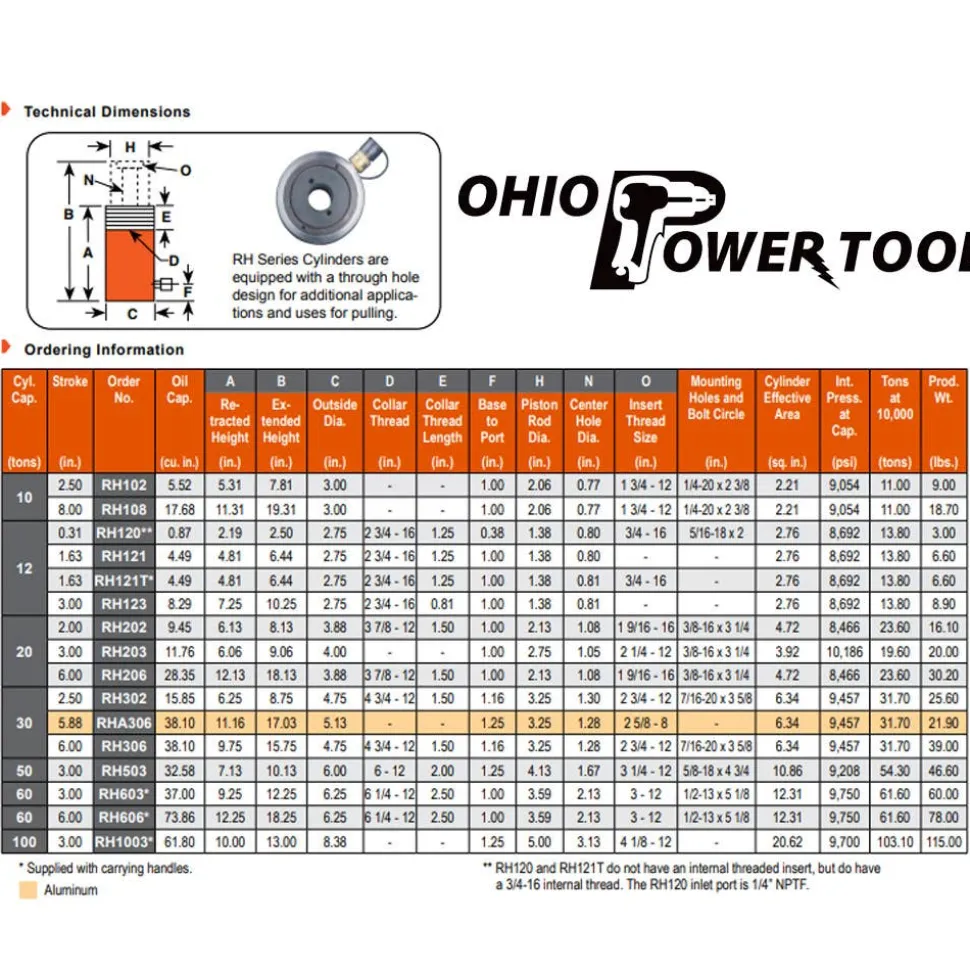

SPECIFICATIONS:

Stroke length:	3.000″
Piston rod diameter:	5.000″
Series/type:	RH-Series/Center hole
Actuation/return:	Single acting/spring return
Cylinder capacity:	100 Ton
Oil capacity:	61.8000″³
Retracted height:	10.000″
Extended height:	13.000″
Effective area:	20.620″²
Tons at 10;000 PSI:	103.10 Ton
Max pressure:	10;000 PSI
Bore size:	5.125″
Base to port:	1.250″
Outside diameter:	8.375″
Center hole diameter:	3.125″
Insert thread size:	4-1/8-12
Material:	Aluminum
Weight:	115.00lbs

“
