Power Team 100 Ton Hydraulic 6-5/8" Double Acting Cylinder RD1006

Power Team 100 Ton Hydraulic 6-5/8″ Double Acting Cylinder RD1006

Original price was: $5,561.00.Current price is: $124.99.

SKU: SKUIYVJHeG1xp Categories: Hydraulic Cylinders & Lifting Jacks, Power Tools Tag: Power Team SPX Brand: Power Team SPX

Description
Reviews (0)

Additional Details

Perfect for bridge lifting, building reconstruction, shipyard, utility and mining equipment maintenance.

Features

Interchangeable piston head inserts provide versatility of application
Aluminum bronze overlay bearings provide long life
Chrome plated piston rod resists corrosion
Built-in safety relief valve prevents over-pressurization of the retract circuit
Load cap snaps out to expose internal piston rod threads for pulling applications, threads withstand full tonnage
Grooved ring pattern in load cap helps guard against load slippage
Each cylinder has two 9796 3/8″ NPTF female half couplers
Feature mounting holes and collar threads

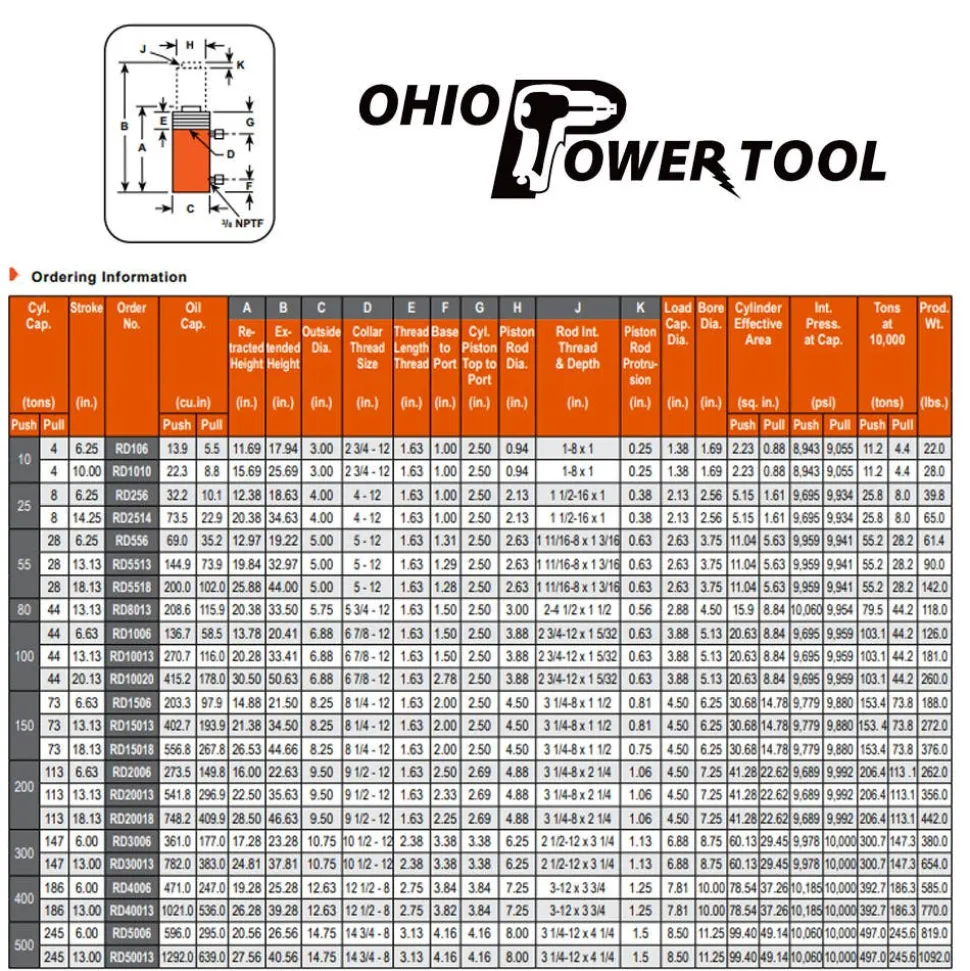

Manufacturer Specifications

Tons at 10,000 – Push	103.1 tons
Tons at 10,000 – Pull	44.2 tons
Internal Pressure at Capacity – Push	9,695 PSI
Internal Pressure at Capacity – Pull	9,959 PSI
Oil Capacity – Push	136.7 cu. in.
Oil Capacity – Pull	58.5 cu. in.
Effective Area – Push	20.63 sq. in.
Effective Area – Pull	8.84 sq. in.
Bore Diameter	5.13 in.
Outside Diameter	6.88 in.
Retracted Height	13.78 in.
Extended Height	20.41 in.

Specifications

More Information
OPT SKU	PTRD1006
MPN	RD1006
UPC/GTIN	662536002752
Product Type	Cylinder Rams Double Acting
Google Category	Business & Industrial > Material Handling
Stroke	6-1/2″
Tonnage	100-Ton
Shipping Weight	142.00
