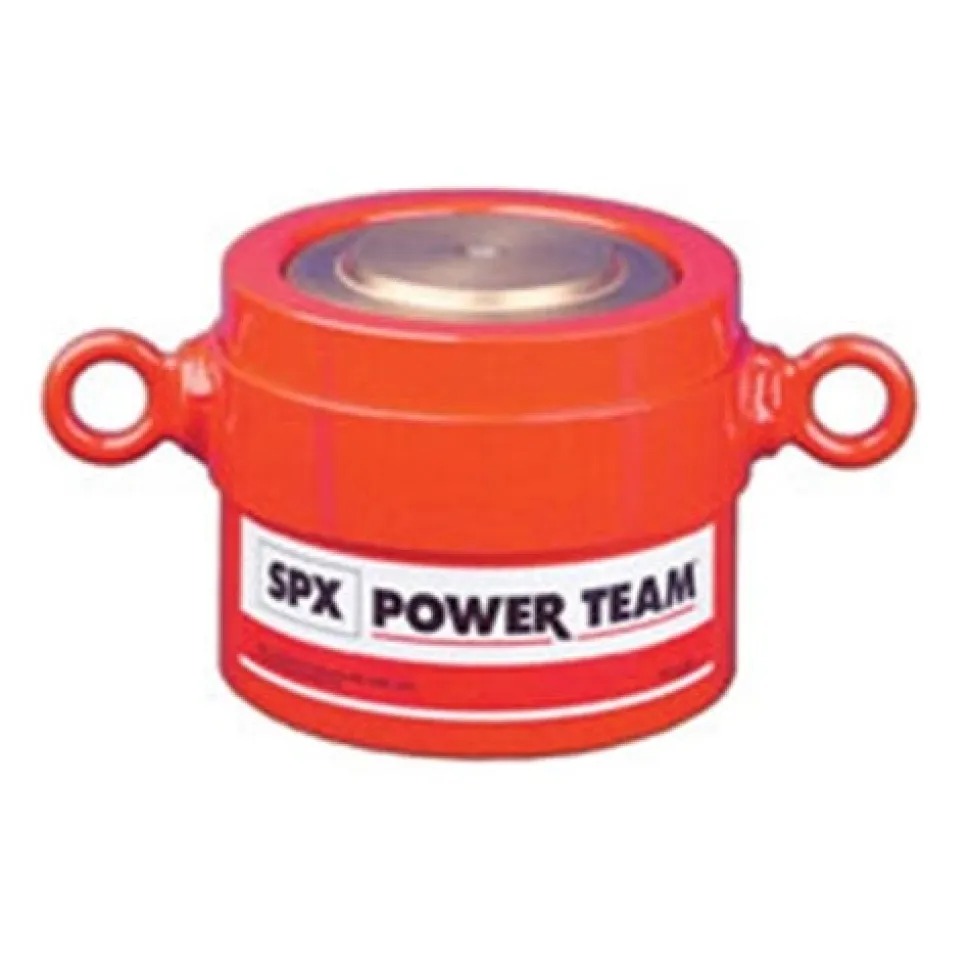

Power Team 355 Ton Hydraulic 10" Single Acting Load Return Cylinder R35510C

Power Team 355 Ton Hydraulic 10″ Single Acting Load Return Cylinder R35510C

Original price was: $12,983.00.Current price is: $136.89.

SKU: SKUmMqGiCFV0z Categories: Hydraulic Cylinders & Lifting Jacks, Power Tools Tag: Power Team SPX Brand: Power Team SPX

Description
Reviews (0)

Additional Details

Power Team
HIGH-TONNAGE; LOW CYCLE; HYDRAULIC RETURN.
Visible indicator band alerts when stroke limit is reached; overflow port (weep hole) stroke limiter prevents piston from being overextended.
Alloy heat treated piston and body for reliability and strength.
Plated piston rod increases corrosion resistance and gives superior bearing support.

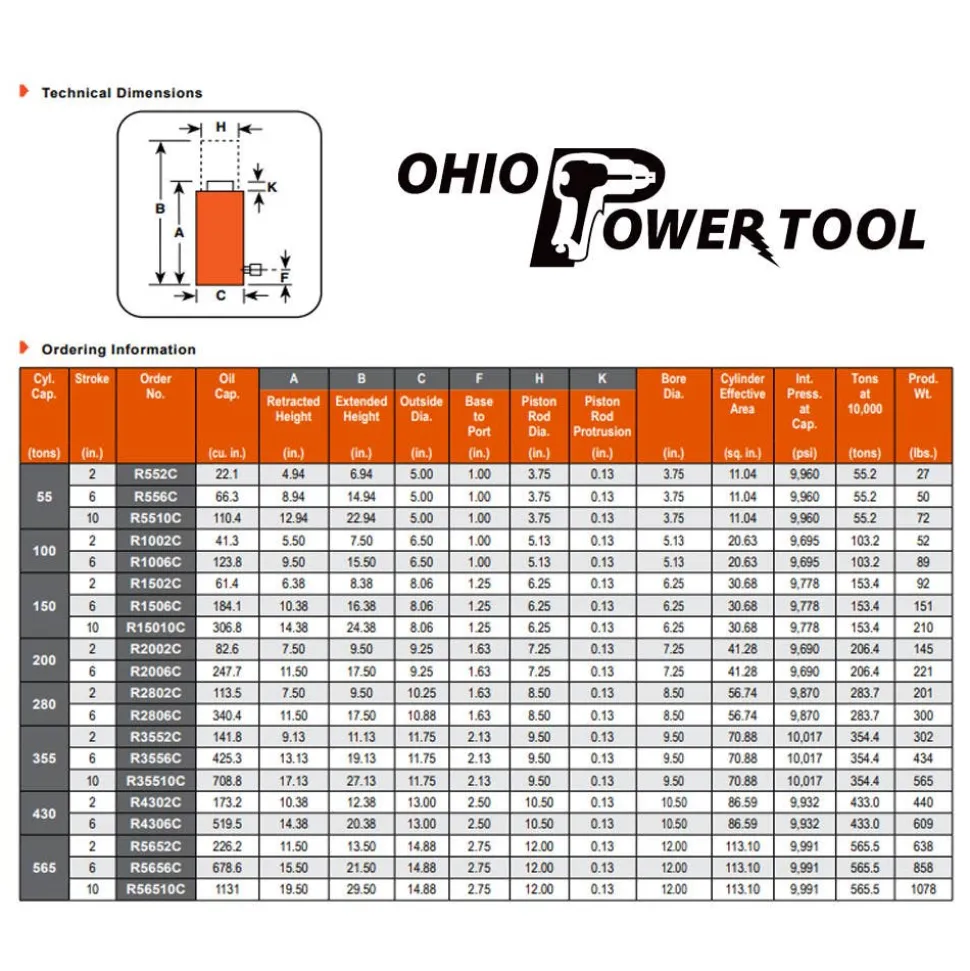

Order No. : R35510C
Cyl. Cap. (tons) : 355
Stroke (in.) : 10
Oil Cap. (cu. in.) : 708.8
Bore Dia. (in.) : 9 1/2
Cylinder Effective Area (sq. in.): 70.88
Internal Pressure at Cap. (psi): 10;017
Tons at 10000 (psi) : 354.4
Weight (lbs.) : 565
Retracted Height (in.) : 17 1/8
Extended Height (in.) : 27 1/8
Outside Dia. (in.) : 11 3/4
Base to Port (in.) : 2 1/8
Piston Rod Dia (in.): 9 1/2
Piston Rod Protrusion (in.): 1/8

Specifications

More Information
OPT SKU	PTR35510C
MPN	R35510C
UPC/GTIN	662536282314
Product Type	Cylinder Rams Single Acting
Google Category	Business & Industrial > Material Handling
Stroke	10″
Tonnage	355-Ton
Shipping Weight	302.00
