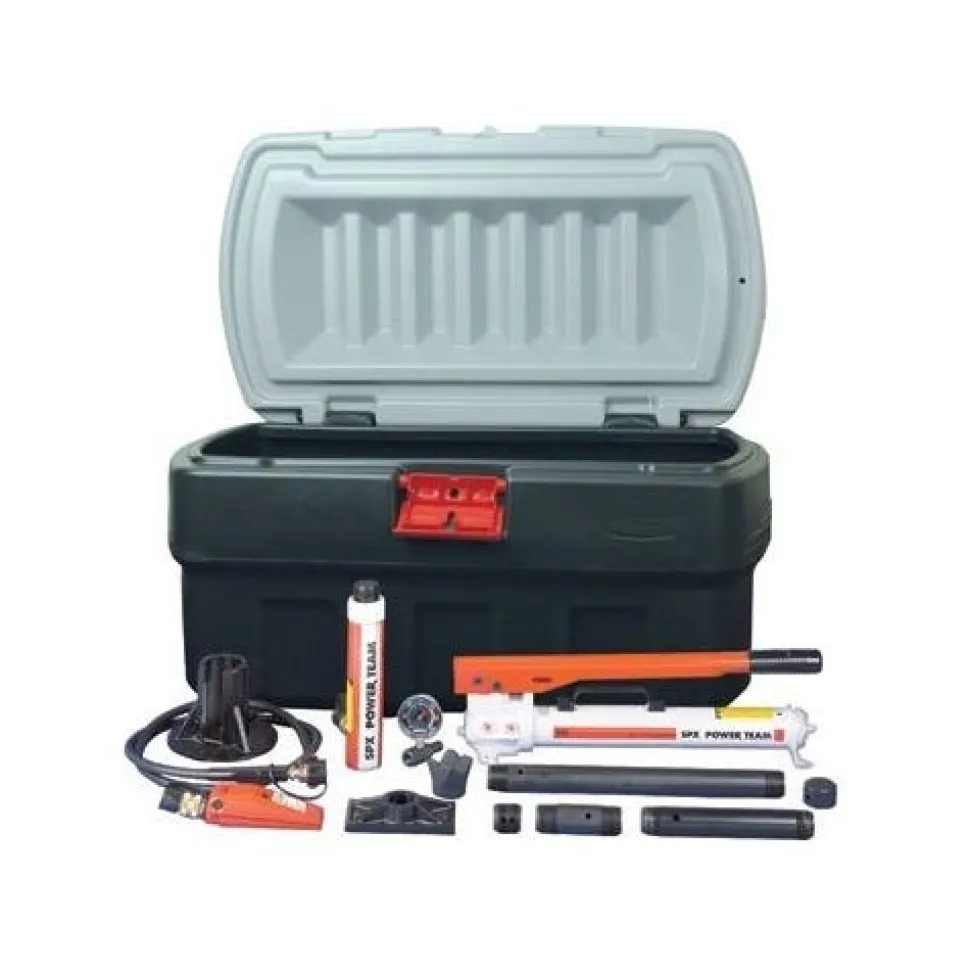

Power Team Hydraulic Set 10 Ton Maintenance Kit IM10L

Team Hydraulic

Set 10 Ton Maintenance Kit IM10L

FEATURES:

• Matched hydraulic system components; adapters and hydraulic spreader; contained in a rugged carrying and storage case.
• Portable sets are ideal for pushing; pulling; lifting; straightening; or clamping at remote job sites.
• Cylinders in set are rated at 10 tons at 10;000 psi. Set components are designed for full rated capacity of cylinders.
• Set IM10H/IM10L includes hand operated pump. Set IM10E includes the Quarter Horse electrically driven portable power unit.
• Hydraulic spreader: HS2000
• 10;000 psi Hydraulic Gauge: 9041
• Tee adapter: 9670
• Hose & coupler assembly: 9754
• 90 V base: 25395
• Threaded coupler: 25664
• Serrated saddle: 31772
• Flat base: 32325
• Extension rod -5″ length: 350897
• Extension rod -10″ length: 38909
• Extension rod -18″ length: 350898
• Cylinder support base: 420062
• Cylinder assembly; 10 ton; 6 1/8″ stroke: C106CBT
• Storage box*: 350722
• Product Weight: 81 lbs.

“
