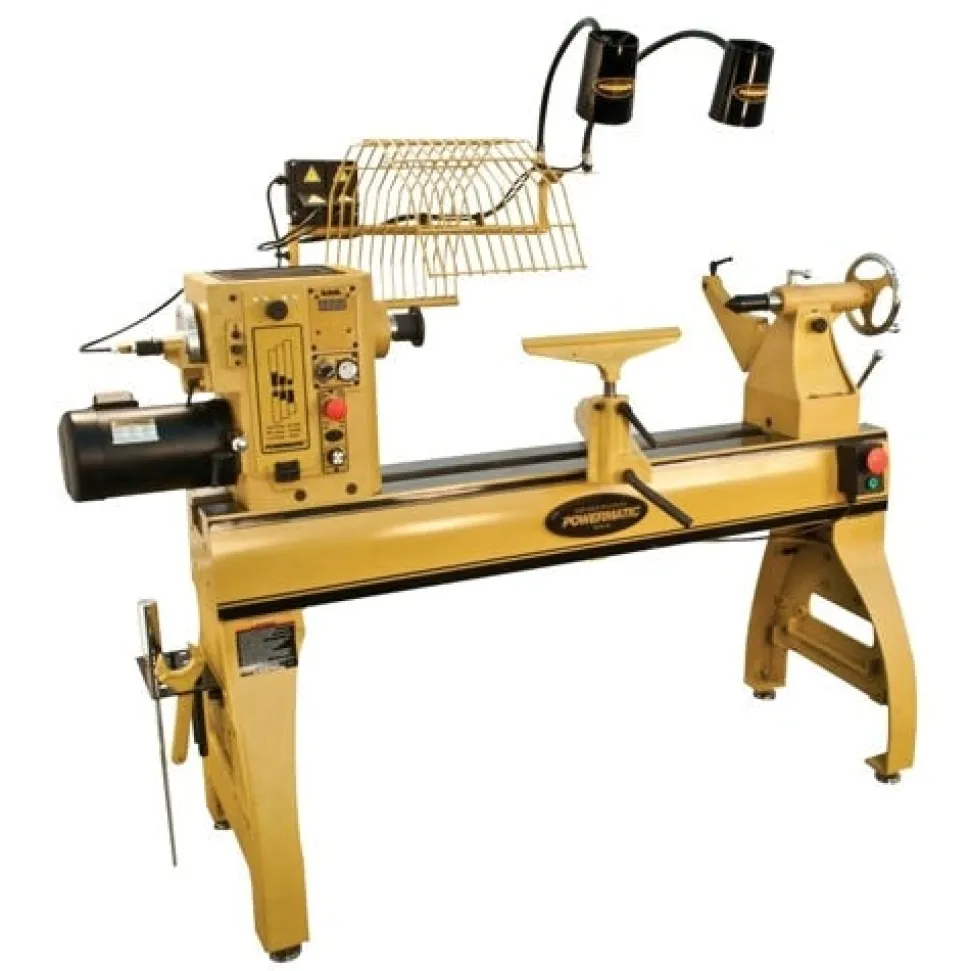

Powermatic 4224B Wood Lathe 1794224K

• Powermatic
• Financing is available. Click here for details.
• *** FREE SHIPPING ***
• Sliding headstock with electronic variable speed and digital RPM readout for accurate speed adjustments
• Spindle lock and built in spindle indexing on the headstock for drilling hole patterns; routing flutes; and other equally spaced features
• Vacuum system provides quick method of chucking bowl blanks
• 15-amp quad receptacle for easy reach of powered accessories
• Two 100W task lamps provide ideal lighting
• Air nozzle with quick connect for clearing dust/chips
• Set of dead centers which hold a spindle for visual comparison
• Laser etched quill is self ejecting.
• Two position mount for the optional bed extension
• Brass tipped knockout bar concentrates the action in the sliding handle; the brass tip will not damage drive centers
• Attached tool caddy allows convenient access to centers; wrenches; etc.
• Tailstock has internal storage for additional accessories
• Chrome trimmed handwheels are ergonomic for a comfortable feel
• Magnetic-backed remote on/off switch can be moved anywhere on the machine
• Specifications

• Part Number: 1794224K
• Swing Over Bed: 24 in
• Swing Over Tool Rest Base: 21 in
• Distance Between Centers: 42 in
• Outboard Turning: 88 in
• Speeds: 40-3500 RPM
• Headstock Taper: MT-2
• Spindle Nose: 1 1/4 in x 8 TPI
• Hole Through Spindle: 5/8 in
• Tailstock Taper: MT-2
• Hole Through Tailstock: 3/8 in
• Ram Travel: 4 in
• Centerline of Spindle to Floor: 44 in
• Spindle Taper: MT-2
• Headstock Movement: full length of bed
• Indexing Positions: 98
• Style: leg stand
• Bed Construction: cast iron
• Spindle Speeds: 40 – 3500
• Motor Power: 3 HP
• Motor Voltage: 220 V
• Prewired Voltage: 220 V
• Motor Phase: 3 Ph
• Web Description: 4224B Lathe 3HP; 1/3Ph; 220V
• Model Number: 4224B
• Brand: Powermatic
• Overall Dimensions: Assembled 83″L x 36″W x 65″H
• Height: 31.5 inch
• Width: 27 inch
• Length: 68 inch
• Net Weight: 948 pound

“
