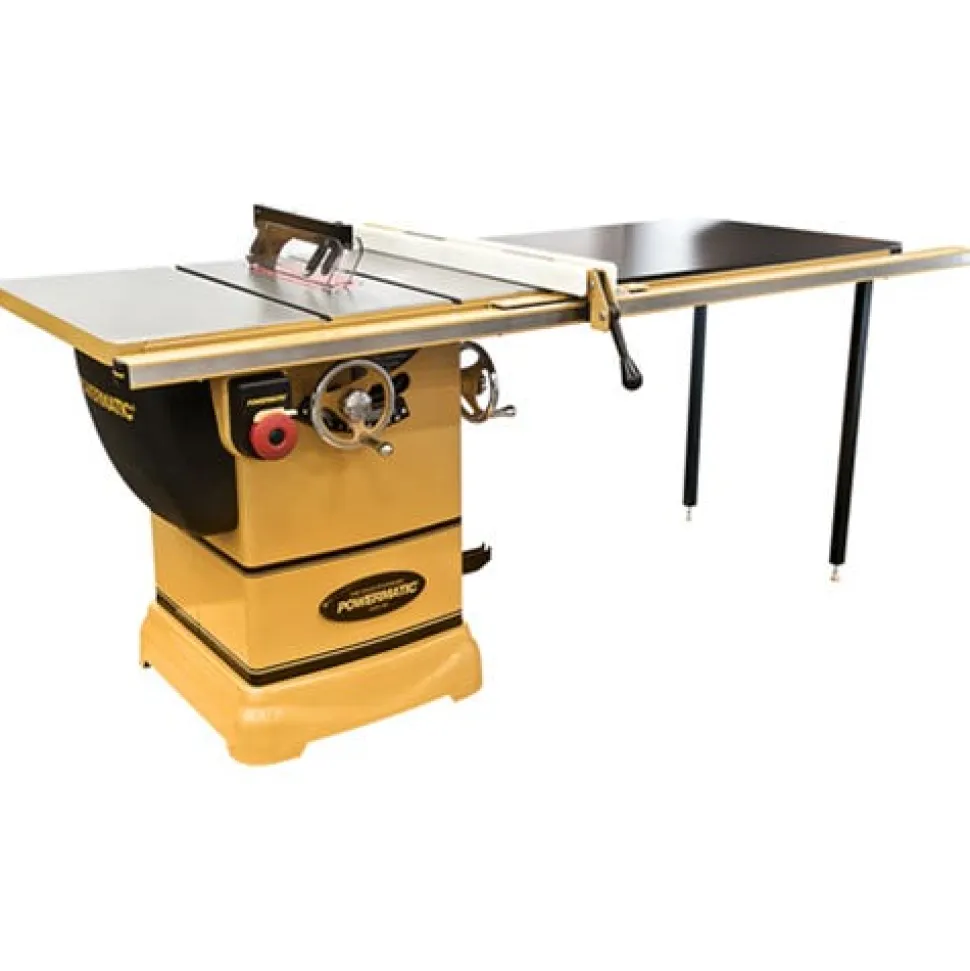

Powermatic PM1000 Table Saw 30″ Maximum Rip Capacity 1791000K

• Powermatic
• PM1000 Table Saw 30 Maximum Rip Capacity 1791000K
• Cabinet saw that only requires 115V power
• A blade surround and collection hose provide an unobstructed path; maximizing dust collection
• Conveniently located hands free power switch
• Tool-less guard assembly with independent side leaves is easy to use; maximizing safety
• The sturdy miter gauge pivots 60 degrees to either side; allowing easy adjustment for a full range of cuts
• Exclusive AccuFence provides rigidity and precision
• The poly-V belt drive system reduces vibration and maximizes efficiency
• Ergonomically designed 7 handwheels provide momentum making blade height and bevel adjustments easy
• Arbor lock allows for one handed blade changes with minimal tools
• Cast iron work surface features a beveled edge
• Bevel scale is conveniently located with large; easy to read numbers
• Specifications:
• Style (Type) Cabinet
• Blade Diameter (In.) 10
• Arbor Diameter (In.) 5/8
• Arbor Speed (RPM) 4200
• Maximum Depth of Cut (In.) 3-1/8
• Maximum Depth of Cut at 45 Degrees (In.) 2-1/8
• Maximum Rip Left of Blade (In.) 12
• Maximum Rip Right of Blade (In.) 30
• Maximum Diameter of Dado (In.) 8
• Maximum Width of Dado (In.) 13/16
• Table Type Cast Iron
• Table Height from Floor (In.) 34-1/4
• Table Size (In.) 20 x 27
• Dust Collection Minimum CFM Required (CFM) 350
• Dust Port Outside Diameter (In.) 4
• Motor Power (HP) 1-3/4
• Motor Phase 1
• Motor Voltage (V.) 115/230
• Prewired Voltage (V.) 115
• Motor Current (Amps) 15/7.5
• Recommended Circuit Size (Amps.) 20

“
