Reed RGCOMBO2 – Roll Groover 09200

Reed Manufacturing

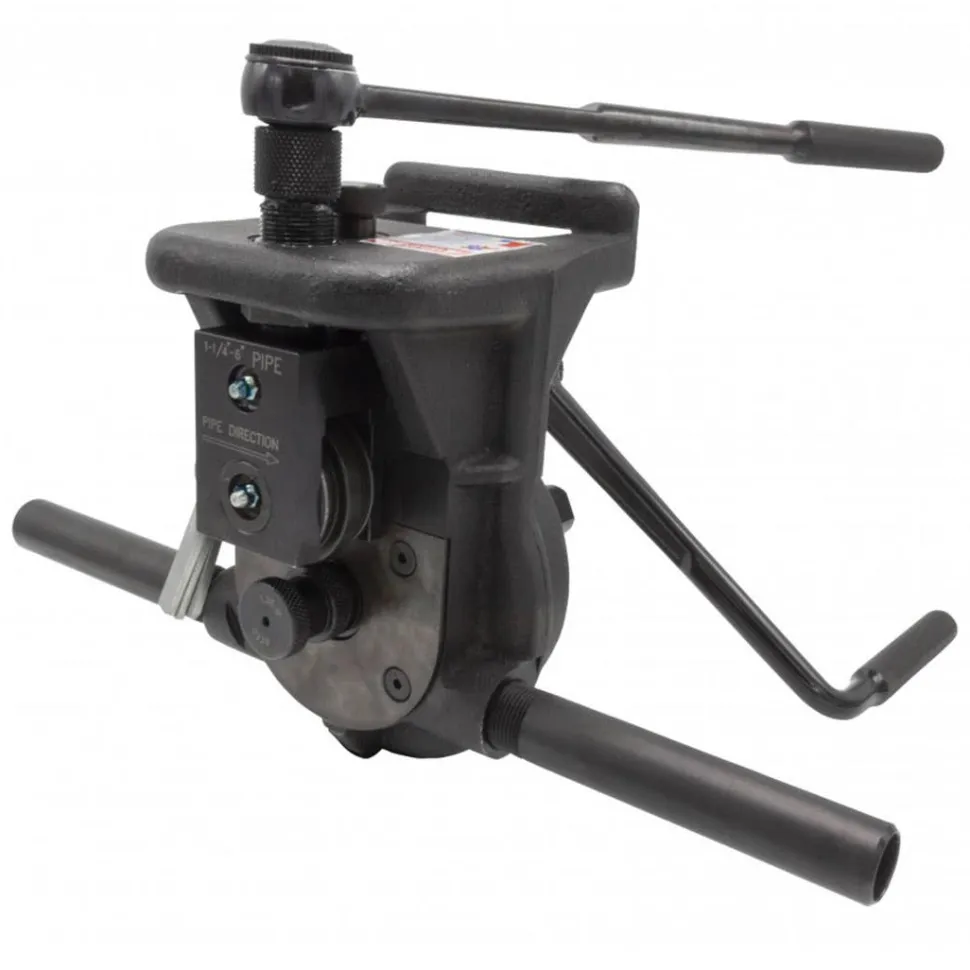

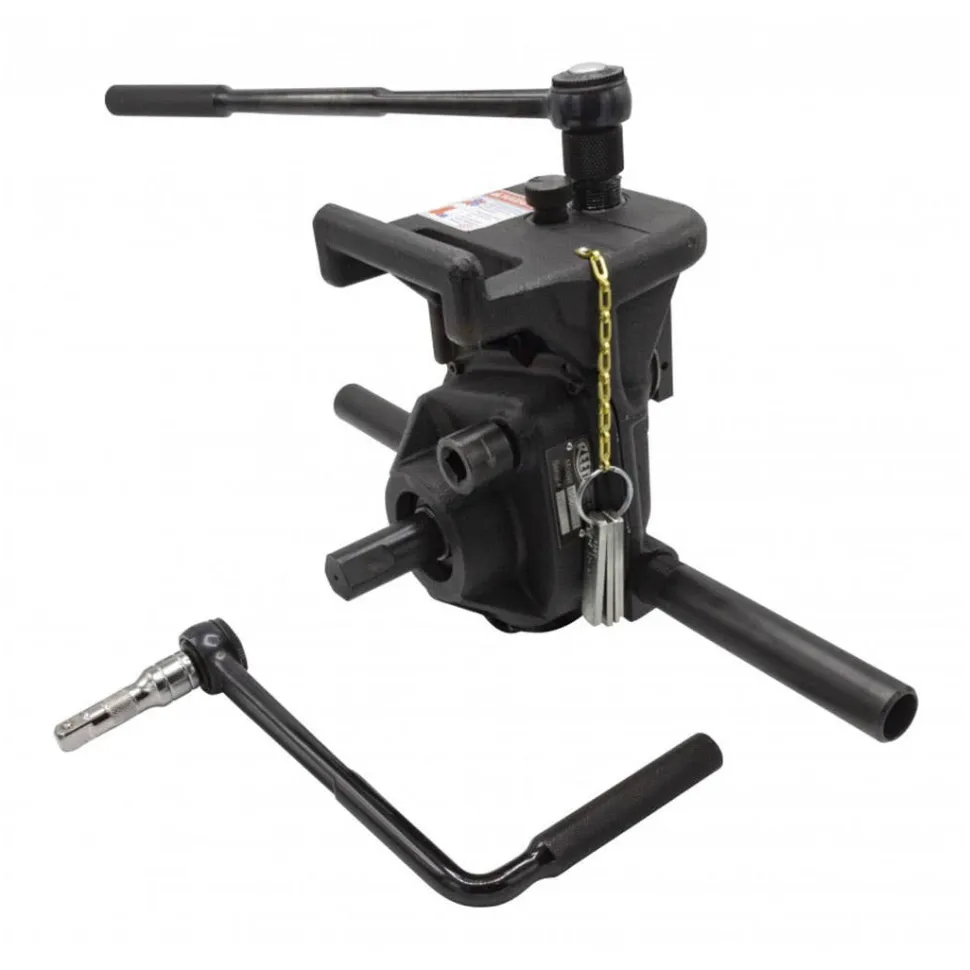

RGCOMBO2 – Roll Groover 09200

Combo Roll Groovers are 2-in-1 service tools that yield cost savings of time and money by allowing a complete change in minutes from power machine operation to manual work or back. They are operated either manually or under power. RGCOMBO2 forms standard rolled grooves in steel, stainless steel, and aluminum pipe from 1 1/4” to 6”. The formed grooves comply with the specifications required for mechanical coupling systems. The only adjustment required is for the depth of the groove.

FEATURES:

• Perform both power and manual roll grooves with ease.

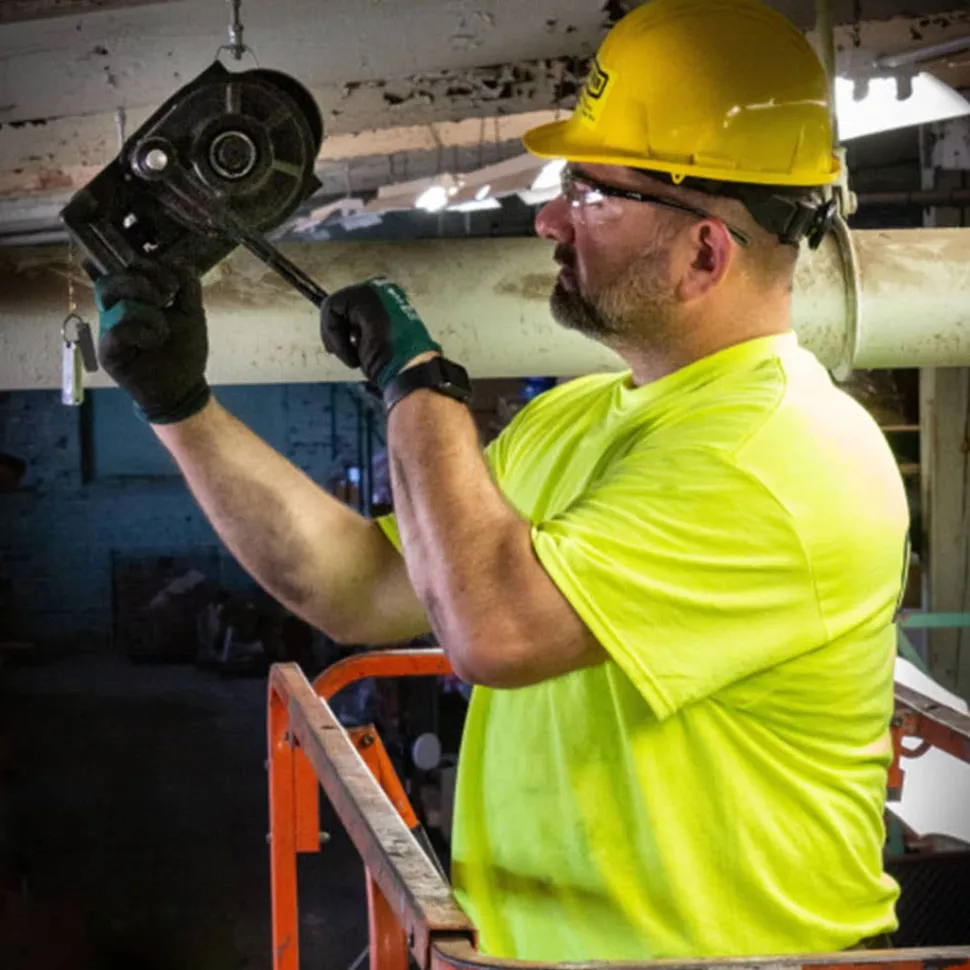

• May be used manually on pipe “in air” or on a pipe stand.
• Slide block and groove roll angle ensures tool tracks around the pipe accurately while making a groove.

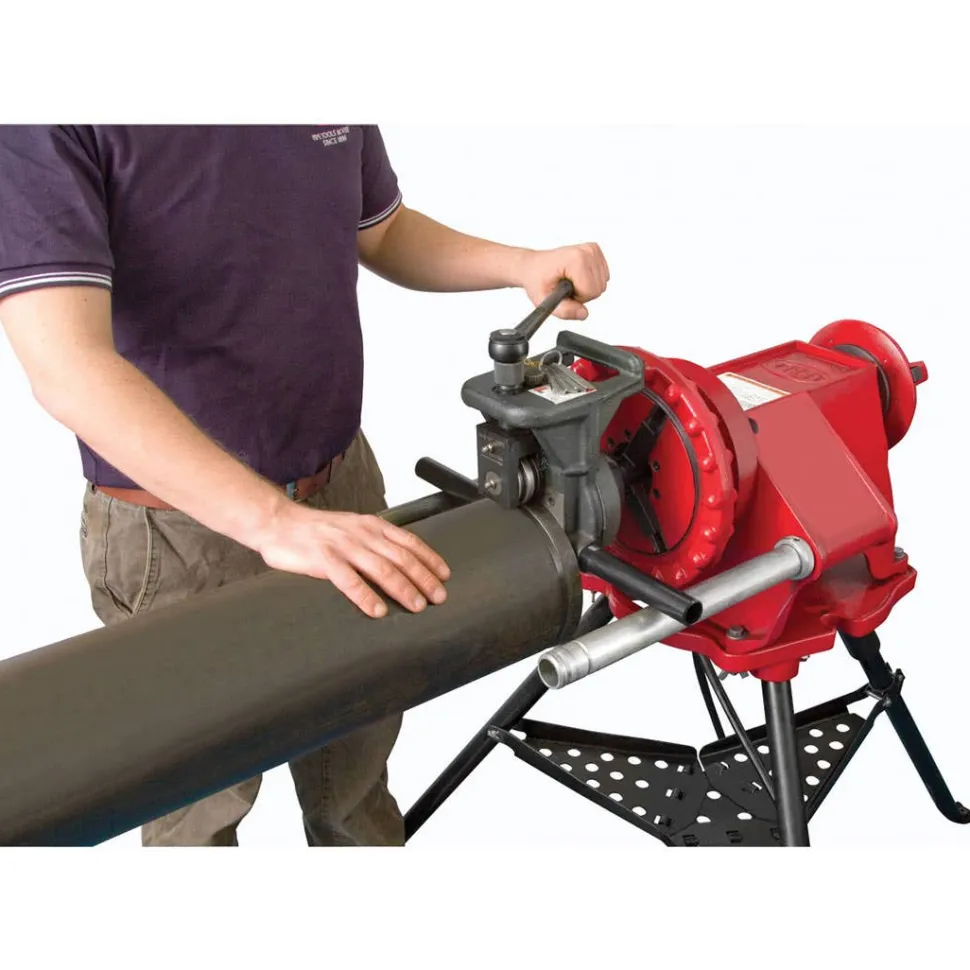

• Adapts to power grooving with REED 5301PD and other comparable power drives.
• Requires 10.25 inches of clearance for in air grooving.
