Ridgid C40 SeeSnake CS6x Versa Monitor Compact Self-Leveling 131' Flexible Cable 63823

Ridgid C40 SeeSnake CS6x Versa Monitor Compact Self-Leveling 131′ Flexible Cable 63823

Original price was: $10,690.00.Current price is: $128.99.

SKU: SKUJzPc4acKgn Categories: Inspection Cameras, Power Tools Tag: RIDGID Tools Brand: RIDGID Tools

Description
Reviews (0)

Additional Details

Ridgid

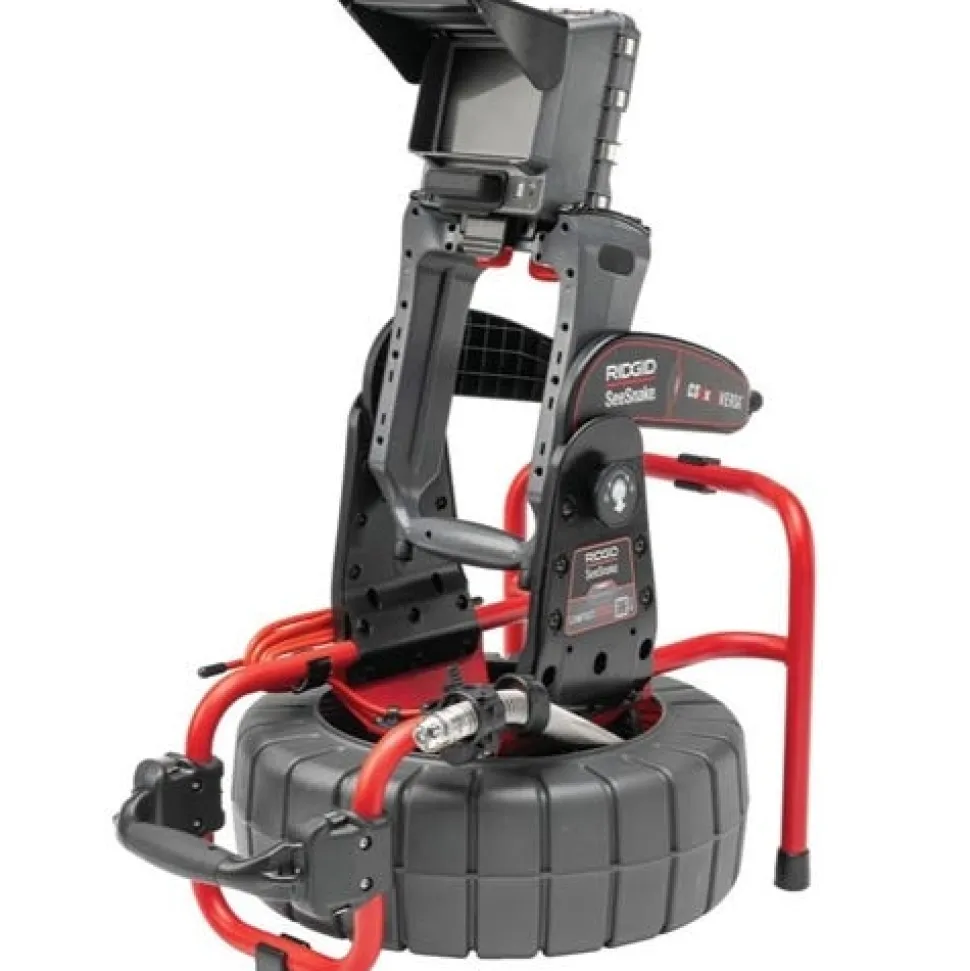

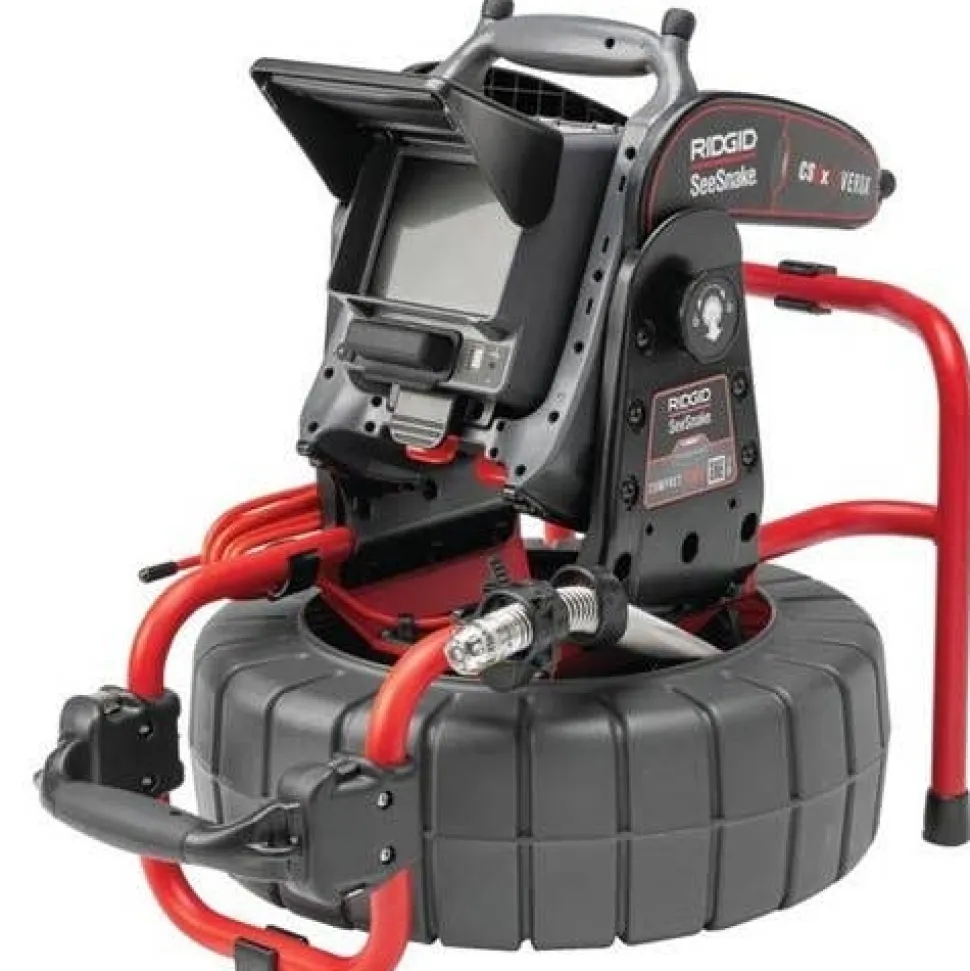

SeeSnake Compact 131′ TruSense C40 Camera System 63823

FEATURES:

Quick-release dock for the Cs6x Versa.
Digital Recording Monitor with Wi-Fi provides fast, efficient job setup.
Tilt the monitor to the desired viewing angle while docked or remove it for convenient job site placement.
Self-Leveling Camera head provides an image that is always upright.
TruSense technology features a high dynamic range (HDR) image sensor and two-way communication between the camera and SeeSnake CSx series Wi-Fi enabled monitors.
HDR image sensor maintains color and detail in high dynamic range scenes.
TiltSense inclinometer shows camera’s angle in-pipe on CSx series monitors.
Download the free HQx Live app to view and record inspection jobs on your phone or tablet.
Use the high power FleXmitter 512 Hz sonde with a RIDGID receiver to locate the camera.

INCLUDES:

Compact C40
CS6x Versa Monitor

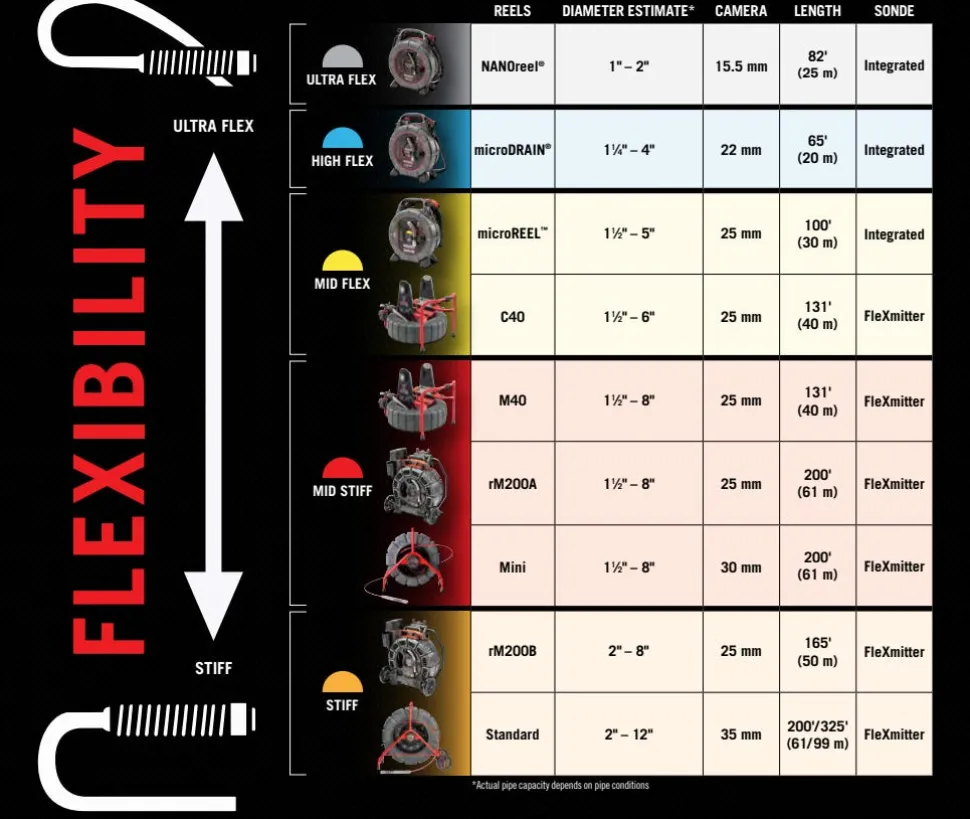

COMPACT SERIES QUICK COMPARISON GUIDE:

CAMERA REEL	CAMERA HEAD	PUSH CABLE	MINIMUM BEND RADIUS	LINE CAPACITY
Compact2 Camera Reel	25 mm (1) Self-Leveling	100′ (30 m)	2.5″ (64 mm )	1.5″ – 6″ (38 mm – 152 mm)
Compact C40 Camera Reel	25 mm (1″) Self-Leveling w/TruSense Technology	131′ (40 m )	2.5″ (64 mm )	1.5″ – 6″ (38 mm – 152 mm)
Compact M40 Camera Reel	25 mm (1″) Self-Leveling w/TruSense Technology	131′ (40 m )	3″ (76 mm)	1.5″ – 8″ (38 mm – 203 mm)

SPECIFICATIONS:

Line Capacity	1.5″ to 6″ (38mm to 152mm)
Push Cable Length	131′ (40m)
Push Cable Diameter	0.26″ (6.6 mm)
Push Cable	JacketPolypropylene
Push Cable Bend Minimum Radius	2.5″ (63.5 mm)
Weight (without batteries)	17.6 lbs. (8.0 kg)
Size Length	25″ (63.5 cm)
Width	14″ (35.6 cm)
Height	17″ (43.2 cm)
Camera Type	1″ (25 mm)
Operating Temperature	14°F to 122°F (-10°C to 50°C)
Storage Temperature	14°F to 158°F (-10°C to 70°C)
Ingress Protection without Monitor	IPx5
Light Source	High-Intensity LED Sonde 512 Hz

Manufacturer Specifications

Number of Handles	1
Size Length	25″ (63.5 cm)
Weight	23.3 LB
Handle Type	Normal
Weight (without batteries)	17.6 lbs. (8.0 kg)
Push Cable Bend Minimum Radius	2.5″ (63.5 mm)
Camera Type	1″ (25 mm)
Product Warranty	Full Lifetime Warranty
Included	No
Model Number	C40
Width	14″ (35.6 cm)
Country of Origin	United States
Storage Temperature	14Â°F to 158Â°F (-10Â°C to 70Â°C)
Operating Temperature	14Â°F to 122Â°F (-10Â°C to 50Â°C)
Height	17″ (43.2 cm)
Push Cable Jacket	Polypropylene
Ingress Protection without Monitor	IPx5
Push Cable Diameter	0.26″ (6.7 mm) with 3 mm [0.12 in] Fiberglass core
Shape	Round
Line Capacity	1.5″ to 6″ (38mm to 152mm)
Light Source	High-Intensity LED Sonde 512 Hz
Material	Stainless Steel
Color	Red / Black
Push Cable Length	131′ (40m)

Specifications

More Information
OPT SKU	RD63823
MPN	63823
UPC/GTIN	095691638236
Product Type	Inspection Cameras
Google Category	Hardware > Tools > Measuring Tools & Sensors
Product Line	18V
Length	131′
Power Method	Cordless
Voltage	18V
Shipping Weight	89.00
