RIDGID Roll Groover for 300 Compact 1233 48307

Ridgid

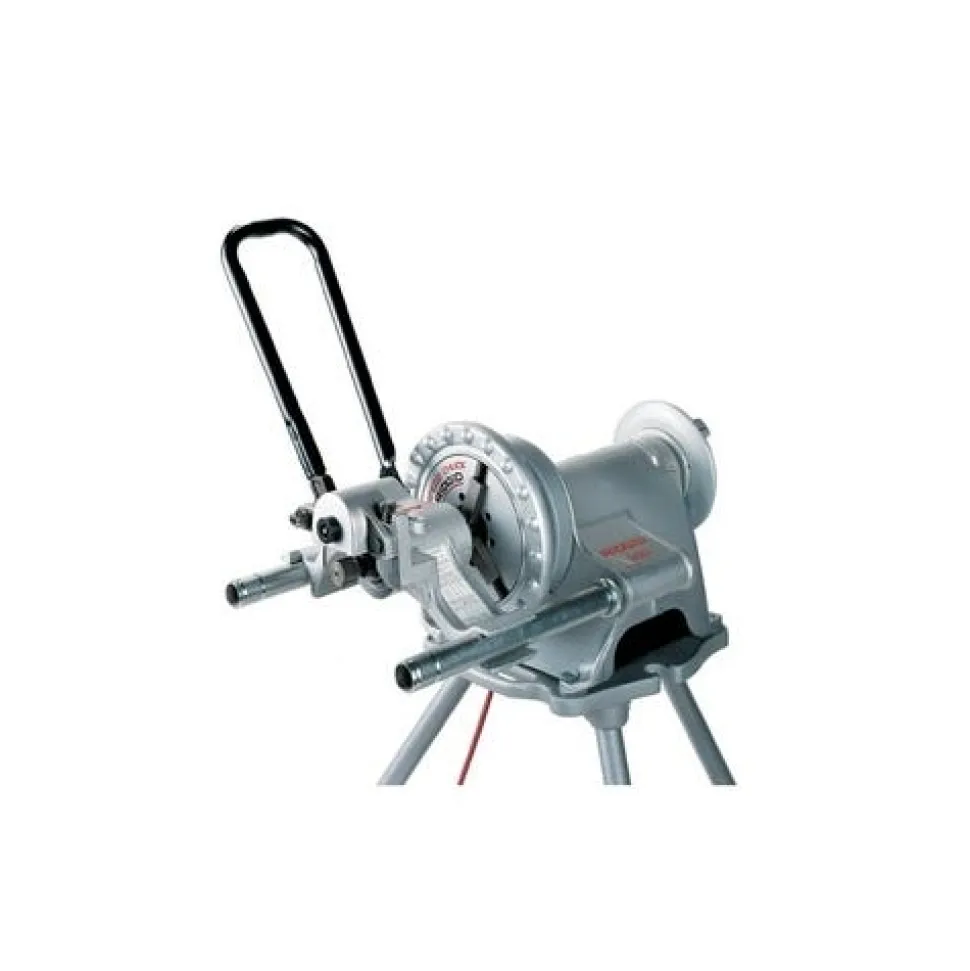

Power-Driven 916 Roll Groover

The RIDGID Model 916 Roll Groover is the most durable and efficient lightweight portable unit available. Built with a solid; durable cast-iron housing; it withstands heavy usage; yet is light enough for easy transportation. The 916 features a patented single stroke feed mechanism that allows for accurate operation quickly and effortlessly.

FEATURES:

• Specifically designed for field service roll grooving applications.
• Quick and easy mount to RIDGID 300 Power Drive; 535 or 300 Compact Threading Machines.
• Cam-type feed actuation translates into minimum operator effort to form roll grooves.
• Depth adjustment screw separate from feed mechanism allows for consistent groove depth.
• Lightweight for easy transport and storage.
• Integral feed handle is part of overall unit. No extra tools required.
• Easy serviceability drive and groove rolls are easy to change.

SPECIFICATIONS:

Capacity
1 1/4 – 6″ Schedule 10 steel and stainless steel
1 1/4″ – 3″ Schedule 40 steel and stainless steel
Optional 2″ – 6″ copper (Type K; L; M; DWV)
Optional 1″ Schedule 10; 40 steel pipe
1 1/4″ – 1 1/2″ and 2″ – 6″ AWWA roll sets

“
